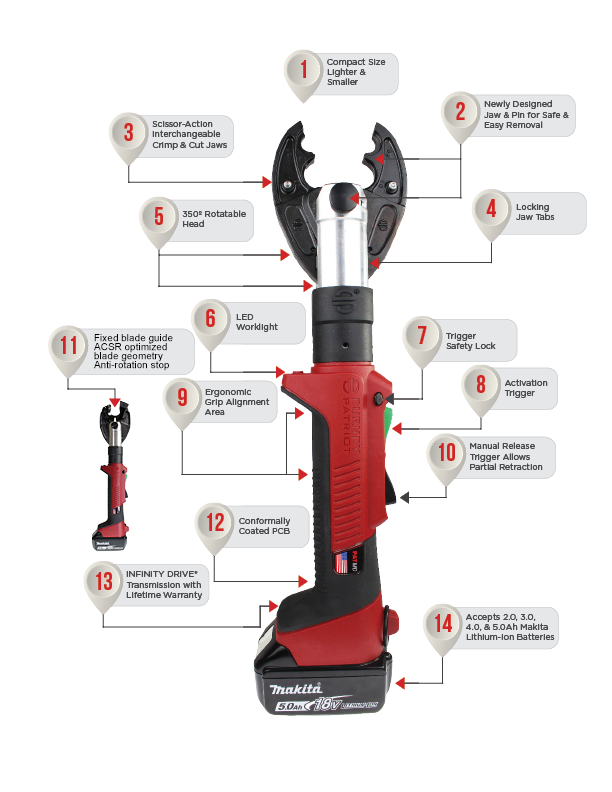

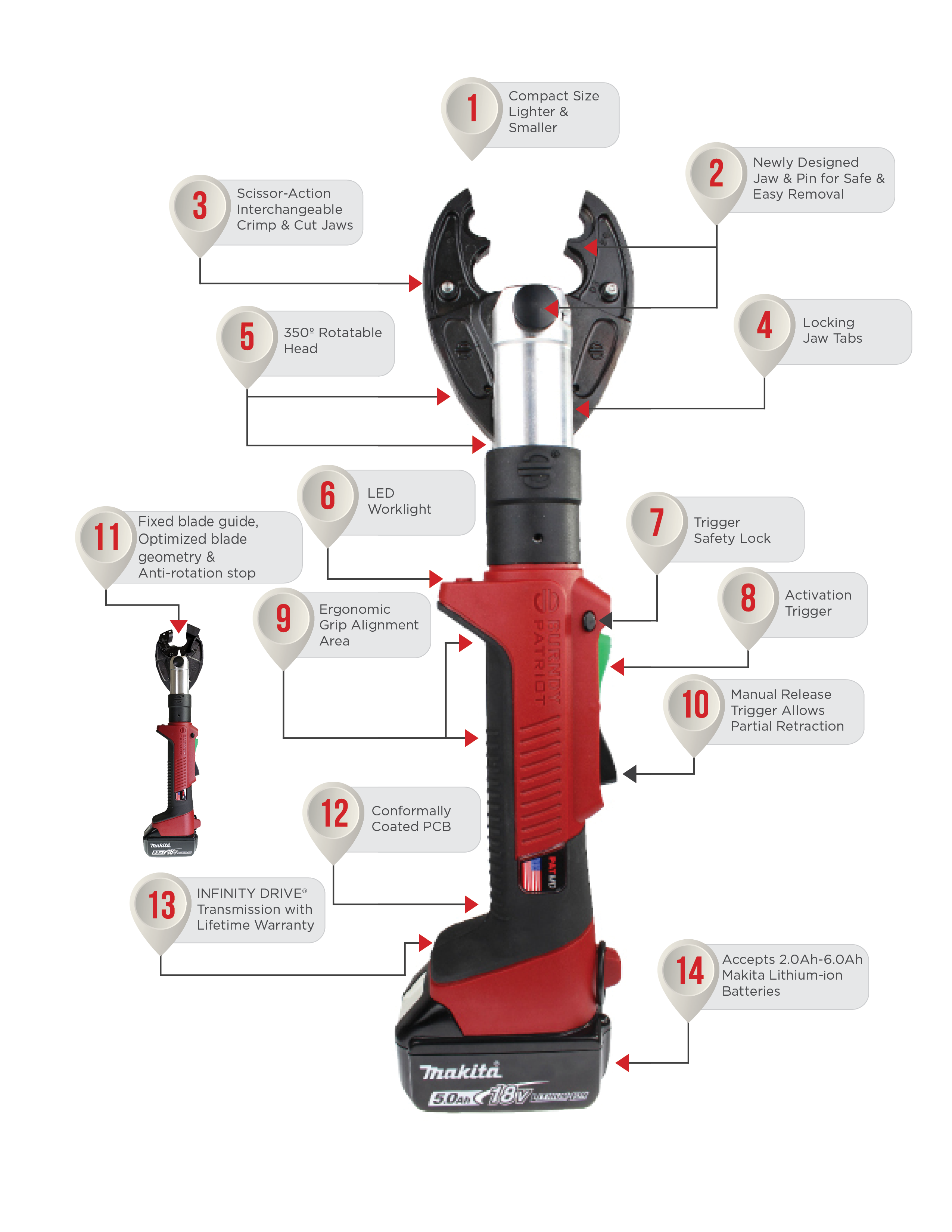

The BURNDY® PATRIOT® IN-LINE® tool platform has been redesigned to meet the growing market need for a smaller, lighter, and more ergonomic IN-LINE tool.

ERGONOMIC



  •   14% lighter

  •   11% smaller

  •   Perfectly balanced for ease of use and comfort

  •   Offering unrivaled ergonomics

  •   350º Rotatable Head

DURABLE



  •   Newly redesigned, robust and interchangeable jaws

  •   Robust and reliable INFINITY DRIVE® transmission

  •   Patented, high-speed hydraulic pump system

  •   Protected electronic circuitry to work in severe weather

  •   PATMD-LW leads the industry in performance, speed, and dependability

  •   Enhanced Power with multi-Ah Capability

SAFETY



  •   Locking tabs to retain jaw in place when changing out

  •   Large on/off triggers

  •   Enhance hand grip area to prevent slippage

  •   Safety switch integrated into the trigger

  •   LED Light
PAT



CAPACITIES

Crimp Capacity


Connector Type Conductor Type Range
Terminals & Splices Copper #8 AWG-500 KCMIL
Terminals & Splices Flex Copper #8 AWG-350 KCMIL
Terminals & Splices Aluminum (AAC) #8 AWG-350 KCMIL
Full-Tension ACSR #10-4/0 AWG
Taps Copper #10-2/0 AWG
Taps AAC or ACSR #14-4/0 AWG
Stirrups ACSR #6-4/0 AWG



Cutting Capacity


* To see full data. Please drag <(left) or (right)> on the table

CUTTING CAPACITIES ACSR    (26/7) Aluminium    (AAC) Copper    (Soft Drawn) Guy Wire   (EHS)
ACSR Jaw 556.6 kcmil 636 kcmil 350 kcmil -
CU/AL Jaw - 636 kcmil 600 kcmil -
GUY Jaw - - - 3/8"



PRODUCT CONFIGURATION

NEW! CUSTOMIZE A TOOL KIT

Choose up to 3 jaws and optional accessories.
Now get only what you need.

Contact Customer Service
800-346-4175


* To see full data. Please drag <(left) or (right)> on the table

    Battery Capacity     Charger Type     Crimper Die
Grooves
    Cutter
Tool PN 3.0Ah 5.0Ah None 120V-AC 12V-DC None BG/D3 O/D3 D3 Only ACSR CU/AL GUY
PATMD6LW
PATMD68LW
PATMD66LW
PATMDCUTLW
PATMD6LWDC
PATMD68LWDC
PATMD66LWDC
PATMDCUTLWDC
PATMD6LW5
PATMD68LW5
PATMD66LW5
PATMDCUTLW5
PATMD6LW5DC
PATMD68LW5DC
PATMD66LW5DC
PATMDCUTLW5DC
PATMD6LWLCB
PATMD68LWLCB
PATMD66LWLCB
PATMDCUTLWLCB
PATMD6LWWCJ
PATMD68LWWCJ
PATMD66LWWCJ
PATMD6LW5WCJ
PATMD68LW5WCJ
PATMD66LW5WCJ
PATMD68LW5DCWCJ
PATMDCUTCLW
PATMDCUTCLWDC
PATMDCUTCLW5
PATMDCUTCLW5DC
PATMDCUTCLWLCB
PATMD6LWWCCJ
PATMD68LWWCCJ
PATMD66LWWCCJ
PATMD6LW5WCCJ
PATMD68LW5WCCJ
PATMD66LW5WCCJ
PATMD60003A1
PATMD60005A1
PATMD16003A1
PATMD36003A1
PATMD26003A1
PATMD16005A1
PATMD36005A1
PATMD26005A1
PATMD14603A1
PATMD34603A1
PATMD24603A1
PATMD14605A1
PATMD34605A1
PATMD24605A1



ACCESSORIES

PATMDCUTACSRKIT Replacement ACSR Blade Kit (2 blades only)
PATMDCUTCUALKIT Replacement CU/AL Blade Kit (2 blades only)
PATMDCUTGUYKIT Replacement GUY Blade Kit (2 blades only)
PATMDCUTACSRFXGDE Replacement Fixed Blade Guide for PATMD-LW cutter jaws (ACSR, CU/AL, GUY)
BAT18VLI Hi-Capacity LI Makita battery (3.0Ah)
BAT18V5AHLI Hi-Capacity LI Makita battery (5.0Ah)
PATCHGRLI 120V-AC Makita charger
PATCHGRLIDC 12/24V-DC Makita charger
W28K Cutter Dies (cuts 4-4/0 CU, AL, ACSR)
WDIETREE W-Die holder for 6 die sets
CASEWDIES W-Die holder for 12 die sets
TOOLBAGMDLI Replacement Tool Bag
