GC15A, Mechanical Grounding Connector, Cable to Water Pipe, #14-1/0 AWG, 1/2"-1" Pipe, Al/Cu Rated

By Burndy

Catalog ID: GC15A

By Burndy
$14.35 USD
Catalog ID:  GC15A
Prop 65 Notice
Mechanical Grounding Connector, Cable to Water Pipe, 14 AWG - 1/0 AWG, 1/2" - 1" Pipe, Al/Cu Rated.

Features: Ground Clamps Are UL Listed For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit, All Clamps Are Constructed From Tin-Plated High Strength Extruded Aluminum Alloy, PENETROX Oxide Inhibiting Compounds Are Recommended For All Aluminum, Clamps Are Dual Rated For Both Copper And Aluminum Conductors: Maximum Flexibility Of Application, All Connectors Are Tin Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, All Clamps Are Range Taking: Only 3 Catalog Numbers Covers Complete Range Of Applications From 1/2 4 IN, Set Screw Type: Slot, Length: 2-1/4 IN, Hex Size: S, Width: 11/16 IN

Buy Now
Add to List

More Options

Where to Buy
Check Inventory
Get a Quote

Product Details

General

Application For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 180 LBS/in
Material Aluminum
Material Type - Screw Steel
Physical Attribute - Screw Type Slot
Plated Y
Plating Type Tin
Sub Brand MECHANICAL CONNECTOR
Temperature Rating -0.4
Type GC-A, Dual Rated
UPC 781810240007
UPC 12 Digit 7818102400077

Dimensions

Dimension - Hole Size inch 0.40 in
Dimension - Hole Size mm 10 mm

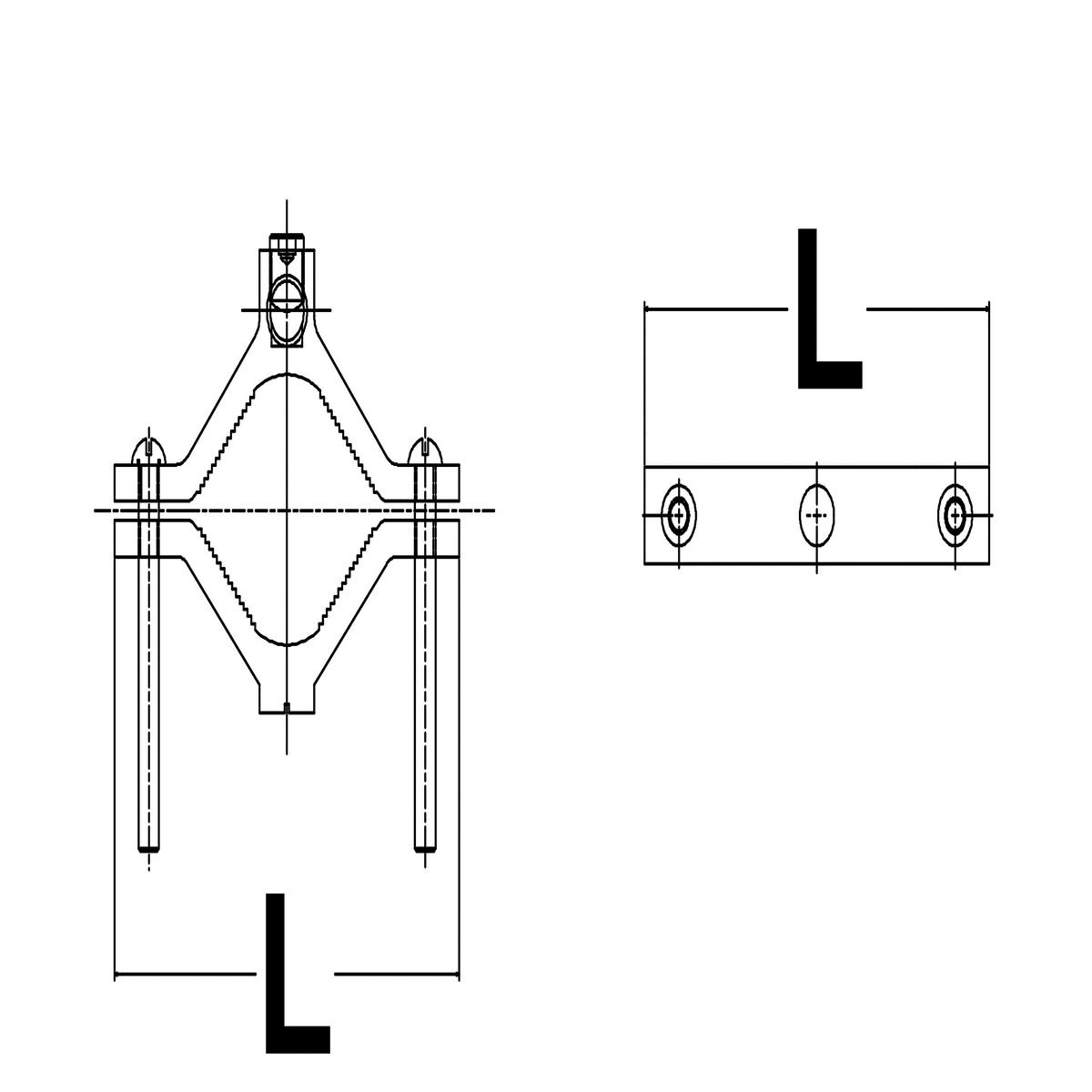

Dimension - L Length Overall mm 57 mm
Dimension - Length Overall inch 2.25 in
Dimension - Pad Width inch 0.69 in
Dimension - Width fraction 11/16 in
Dimension - Width inch 0.69 in
Dimension - Width mm 18 mm

Electrical Ratings

Voltage - Maximum 600 V

Conductor Related

Conductor - AL Str Size 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - AL Str Size Range 8 AWG-4/0 AWG
Conductor - Copper Solid Size 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
Conductor - Copper Solid Size Range 14 AWG-1/0 AWG
Conductor - Copper Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
Conductor - Copper Str Size Range 14 AWG - 1/0 AWG
Conductor - Pipe or Round Tube Run 1/2 ;3/4 ;1
Conductor - Pipe or Round Tube Run Range 1/2 -1
Conductor Type
  • AL C Str-Size
  • CU C Solid-Size
  • CU C Str-Size
  • Pipe or Tube Round-Run

Certifications and Compliance

Certification - ETL No
Certification - UL Listed Direct Burial No
Industry Standard(s) UL467
Standards - Industry Standards Met UL467
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 250
Minimum Pack Quantity 1
