Be prepared to break the Linear Mould
The ideal solution for Industrial Applications - meet the Protecta X. For over 50 years, traditional linear luminaires have dominated lower level lighting applications. But the linear shape, designed for the fluorescent lamps they originally housed, actually inhibits the performance of LEDs. The Protecta X design puts LED technology at the centre for superior lumen output and an incredible lifespan. Take a look at some of the incredible features below or visit our dedicated Protecta X landing page to find out more.
The ideal solution for Industrial Applications - meet the Protecta X. For over 50 years, traditional linear luminaires have dominated lower level lighting applications. But the linear shape, designed for the fluorescent lamps they originally housed, actually inhibits the performance of LEDs. The Protecta X design puts LED technology at the centre for superior lumen output and an incredible lifespan. Take a look at some of the incredible features below or visit our dedicated Protecta X landing page to find out more.
- 120,000-hour maintenance free lifespan at 25 degC
- The lumen output of a 4ft linear in a lightweight and slimline package using specialised optics
- A targeted bright, white output with minimal spill light
- Market-leading efficacy of = 135 lm/W
- Multiple beam distributions available
Built for Industrial Environments
The Protecta X has been built using marine grade aluminium for exceptional performance in the harshest environments. Plus, with an ambient temperature range of 40 degC to +60 degC in standard models and -25 degC to +60 degC in the emergency variants, for hazardous areas - choose the Protecta X.
The Protecta X has been built using marine grade aluminium for exceptional performance in the harshest environments. Plus, with an ambient temperature range of 40 degC to +60 degC in standard models and -25 degC to +60 degC in the emergency variants, for hazardous areas - choose the Protecta X.
Putting the Customer at the Centre
Before designing the Protecta X the Chalmit team carried out an extensive voice of the customer survey. The key piece of feedback that came back because of this was that customers wanted two things - effortless installation and simple maintenance. To solve this, our team designed three essential features.
Before designing the Protecta X the Chalmit team carried out an extensive voice of the customer survey. The key piece of feedback that came back because of this was that customers wanted two things - effortless installation and simple maintenance. To solve this, our team designed three essential features.

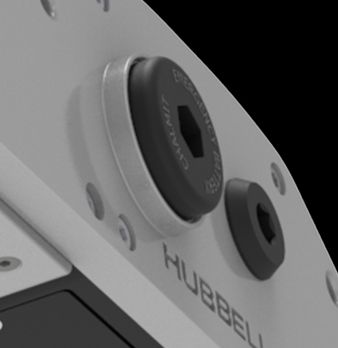

Innovative Battery Stick
The Emergency Protecta X is powered by an innovative battery stick which can be easily slotted in and out of the side of the luminaire, even after if has been installed on site, and without needing to access/ open the driver enclosure.
Front Access Panel
Gone are the days of removing everything from a linear Enclosure, including the LED array, to install wiring. The Protecta X's front access panel means there's no need to take the Enclosure apart - just take off the front panel, wire and go!
Single Wing Option
The Protecta X is available as a double wing luminaire as standard but a single wing version is also available. The single wing design is ideal for handrail mounting (approx. 0.8m) as well as easy access for installation and maintenance.
Product Details
General
| Application |
|
| Battery Type | 6V 4Ah Nickel Metal Hydride (NiMH) |
| Color Rendering Index (CRI) | >70 CRI |
| Color Temperature | 5000 K |
| Construction Material - Main | Marine Grade Aluminum |
| Emergency Illumination Time | 90 min |
| Ingress Protection | IP66/67 to EN 60529 |
| Light Source | LED Array |
| Material - Body | Marine grade aluminium |
| Material - Housing |
|
| Mounting Type |
|
| Series | X Series |
| Type | Linear |
Certifications and Compliance
| Certified Listed |
|
| Compliance |
|
| Hazardous Rating(s) |
|
Resources and Downloads
Specifications
Installation/Instruction Manual (IOM)
Please wait, preparing to download your file.
Photometry (24)
| Product Name | Color Temp | CRI | Lumens | Lm/W | Watts | Dist. Type | Resources |
|---|---|---|---|---|---|---|---|
|
Photometric File | PRXI/02L/LE
|
|||||||
|
Photometric File | PRXI/02L/LE/ASL
|
|||||||
|
Photometric File | PRXI/02L/LE/ASL/EM/3H
|
|||||||
|
Photometric File | PRXI/02L/LE/EM
|
|||||||
|
Photometric File | PRXI/02L/LE/EM/3H
|
|||||||
|
Photometric File | PRXI/02L/LE/EM/3H/OD
|
|||||||
|
Photometric File | PRXI/02L/LE/EM/OD
|
|||||||
|
Photometric File | PRXI/02L/LE/M
|
|||||||
|
Photometric File | PRXI/02L/LE/M/EM
|
|||||||
|
Photometric File | PRXI/02L/LE/M/EM/3H
|
|||||||
|
Photometric File | PRXI/02L/LE/OD
|
|||||||
|
Photometric File | PRXI/05L/LE
|
|||||||
|
Photometric File | PRXI/05L/LE/3H
|
|||||||
|
Photometric File | PRXI/05L/LE/3H/OD
|
|||||||
|
Photometric File | PRXI/05L/LE/ASL
|
|||||||
|
Photometric File | PRXI/05L/LE/ASL/EM/3H
|
|||||||
|
Photometric File | PRXI/05L/LE/ASW
|
|||||||
|
Photometric File | PRXI/05L/LE/ASW/EM/3H
|
|||||||
|
Photometric File | PRXI/05L/LE/EM
|
|||||||
|
Photometric File | PRXI/05L/LE/EM/OD
|
|||||||
|
Photometric File | PRXI/05L/LE/M
|
|||||||
|
Photometric File | PRXI/05L/LE/M/EM
|
|||||||
|
Photometric File | PRXI/05L/LE/M/EM/3H
|
|||||||
|
Photometric File | PRXI/05L/LE/OD
|
