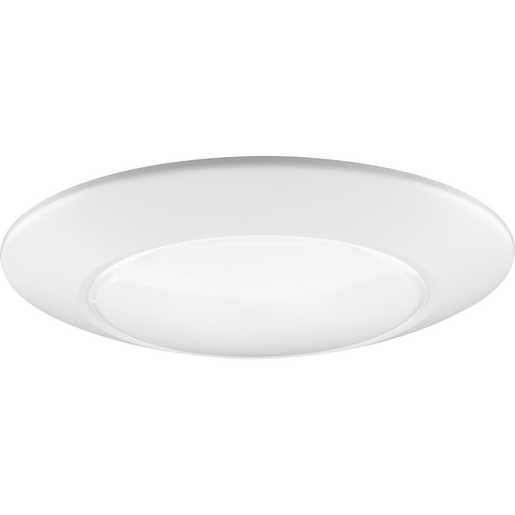

7" Integrated LED Surface Mount Light, 24-Pack
By HomeStyle Lighting
$433.40 USD
Collection Name:
Homestyle Surface Mount LED
Catalog ID:
HS32001-28-30-Q24
The Homestyle Collection Surface Mount LED features an ultra-slim, 1 in. profile and sleek design perfect for adding clear, even light in interior and covered exterior applications; including hallways, closets, stairways, porches and bathrooms. 15.8-watt, 3000K high output, long-life integrated LEDs ensures uniform light with accurate color rendering. Its frosted polycarbonate lens reduces LED pixilation. It is easily installed by surface mounting directly to junction boxes. Frame is coated in a soft satin white finish. cCSAus rated for damp locations and packed 24/box, this slim surface mount LED is an ideal economical solution for both remodel and new construction applications.
- Integrated surface mount LED features ultra-slim, 1 inch profile
- Provides clear, even light in interior and covered exterior applications
- Measures 7.72 in. D x 1.05 in. H
- High output, long-life integrated LEDs ensures uniform light with accurate color rendering
- Frosted polycarbonate lens reduces LED pixilation for consistent, comfortable light
- Includes 15.8-watt, 3000K dimmable integrated LED light source for brightness customization
- Ultra-slim profile offers an elegant design, perfect for many decor settings
- Light is easily installed by surface mounting directly to junction boxes
- Includes an integrated LED light source, 15.8 watt
- Packed 24/box
Product Details
General
| Can be mounted up or down | No |
| Color | White |
| Color Generic | White |
| Color Rendering Index (CRI) | 90 CRI |
| Color Temperature | 3000 K |
| Construction Material - Main | Aluminum |
| Construction Material -Secondary | Polycarbonate |
| Construction Material -Secondary part | reflector |
| Convertible fixture includes both mounts | No |
| Dimming Protocol | Triac/Forward Phase |
| Dimming Range | Dims to 10% Brightness |
| Dusk to Dawn | No |
| Finish Name | Satin White |
| Finish Type | Painted |
| Fire Resistance | No |
| Fixture Type | Flush-Mount |
| Glass | Diffuse White |
| Lamp Included | Yes |
| Lamp Type | LED |
| Lamp Type Basic | Solid State |
| Lifestyle |
|
| Light Distribution | Down |
| Mounting Type | Ceiling Flush |

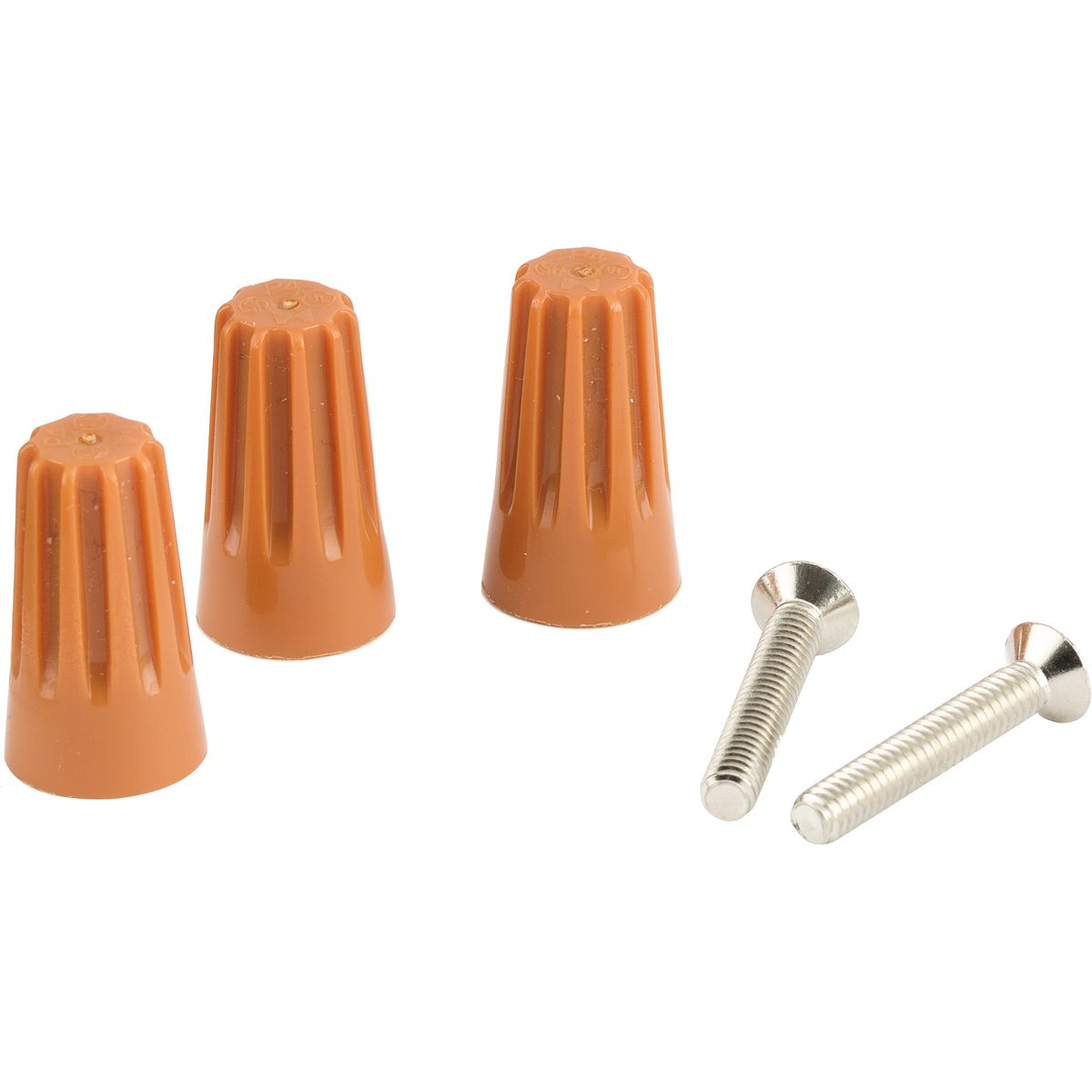

| Mounting for outlet box included | Screws |
| New Products | Yes |
| Number of Lamps | 1 |
| Number of Lamps Total | 1 |
| Operating Temperature | 25 °C |
| Photocell | No |
| Post top fits standard | No |
| Power Source | Hardwired |
| Power Source Required? | Yes |
| Quick Install canopy | No |
| Quick Link connector | No |
| Room Type |
|
| Size Type | Small |
| Socket Base Type - Main | Integrated |
| Starting Temperature - Minimum | -30 °C |
| Type | Surface Mount |
| UPC | 8447450102892 |
| Warranty Length | 1-year Limited Warranty |
Dimensions
| Dimensions | 7.72 in x 7.72 in x 1.05 in |
| Height | 1.05 in |
| Length | 7.72 in |
| Note Weight of fixture exceeds NEC limits | No |
| Weight | 0.43 lb |
| Width | 7.72 in |
| Width Diameter Descriptor | dia. |
Electrical Ratings
| Current Rating | 0.142 A |
| Frequency Rating | 60 Hz |
| Lamp Wattage | 15.8 W |
| Voltage Rating | 120 VAC |
Conductor Related
| Wire Length | 6 in |
Certifications and Compliance
| Americans with Disabilities Act | Yes |
| Certified Listed | cULus |
| Certified Listed Location | Damp Location Listed |
| DarkSky | No |
| ENERGY STAR Certified | No |
| Energy Efficient | Yes |
| Industry Standard(s) | FCC Title 47, Part 15, Class B |
| JA8 | 2019 |
| Other Heavy Metal Content Indicator | No |
| TM-21 | 35000 |
| Title 22 | No |
| Title 24 | Yes |
Resource Links
| Instruction Sheet Number | 93158325 |
