Compression Terminal

By Burndy

Catalog ID: YAV1CL2NK

By Burndy

Catalog ID: YAV1CL2NK

Prop 65 Notice

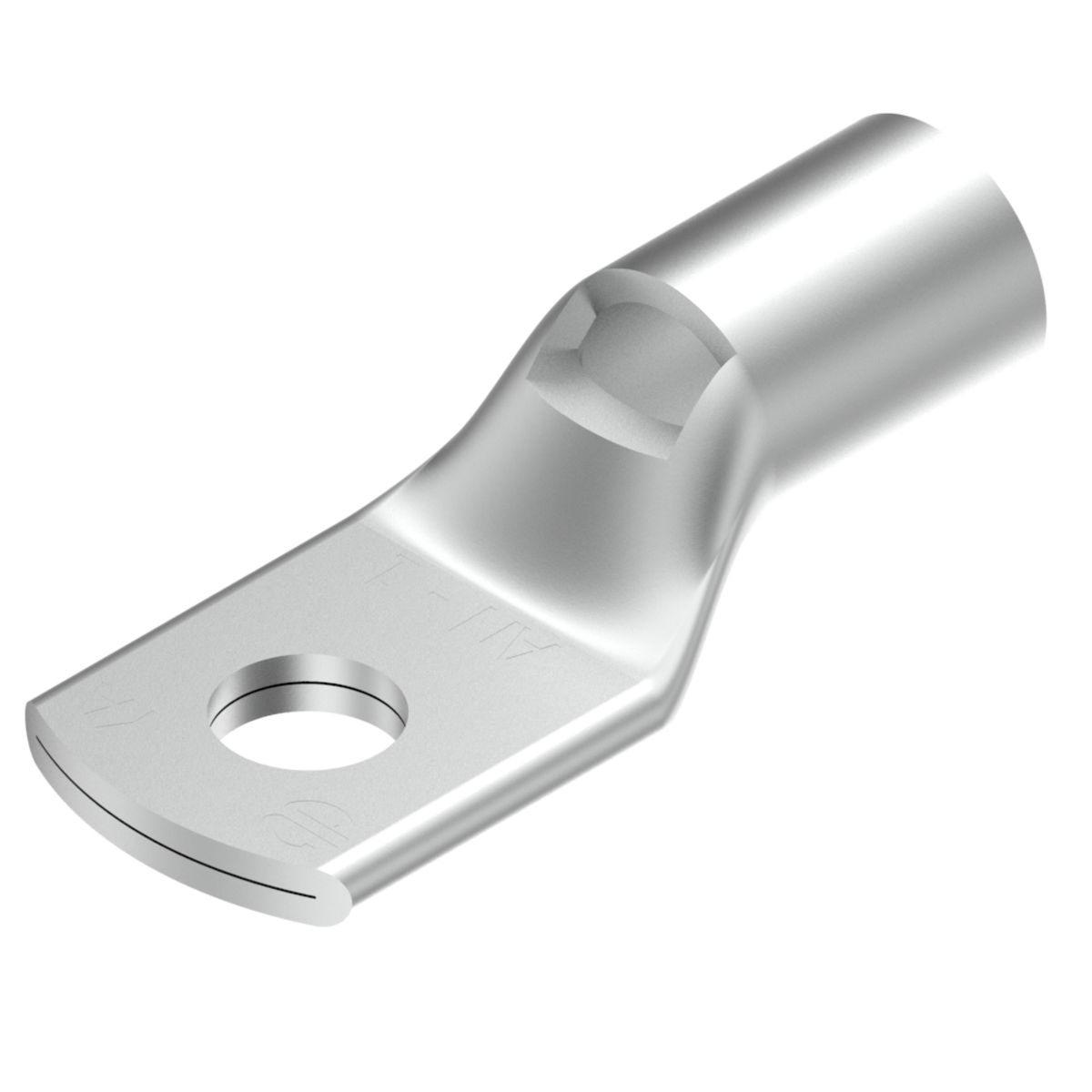

Cu TubingCompression Ring Tongue Terminal, 1 Hole W/InspWindow, AN-1, 5/16" Stud, Uninsulated, Nickel Plated.

More Options

Where to Buy

Get a Quote

Application	Wire Termination
Connector Type	STANDARD BARREL
Die Index	11
Feature - Barrel Style	Chamfered Skived
Feature - Barrel Type	Standard
Finish Type	Nickel Plated
Material	COPPER
Physical Attribute - Number of Holes	1
Plated	Y
Plating Type	Nickel
Temperature Rating	194
Trade Name	HYLUG™
Type	Standard Barrel, Nickel Plated
UPC	781810069875
UPC 12 Digit	7818100698755

Dimension - B Length fraction	5/8 in
Dimension - B Length inch	0.60 in
Dimension - Bolt Hole Size inch	0.33 in
Dimension - Bolt Size fraction	5/16
Dimension - Bolt Size inch	0.3125
Dimension - D inch	0.76 in
Dimension - Hole Size fraction	5/16
Dimension - Hole Size inch	0.38
Dimension - Hole Size mm	10 mm
Dimension - L Length Overall mm	47 mm
Dimension - Length Overall inch	1.84 in
Dimension - N inch	0.38 in
Dimension - Outside Diameter inch	0.51 in
Dimension - Pad Width inch	0.76 in
Dimension - Strip Length inch	5/8
Dimension - Stud Size fraction	5/16
Dimension - Z inch	0.38 in
Physical Attribute - Tongue Angle	Straight

Voltage - Maximum	35000
Voltage Rating	35 kV

Conductor - Copper Str Aircraft Size	AN 1
Conductor - Copper Str Aircraft Size Range	AN 1
Conductor - Copper Str Size	1 AWG
Conductor - Material	COPPER
Conductor Size	1 AWG
Conductor Type	CODE

Certification - CSA Approved	No
Certification - ETL	No
Certification - UL Recognized	No
Certification - cULus	No
Industry Standard(s)	UL 486A-486B
Standards - RoHS Compliance Status	CM
UL Listed	Yes

Carton Quantity	200
Pallet Quantity	46400
