Compression Terminal

By Burndy

Catalog ID: YAZ2C2N

By Burndy
Catalog ID:  YAZ2C2N
Prop 65 Notice

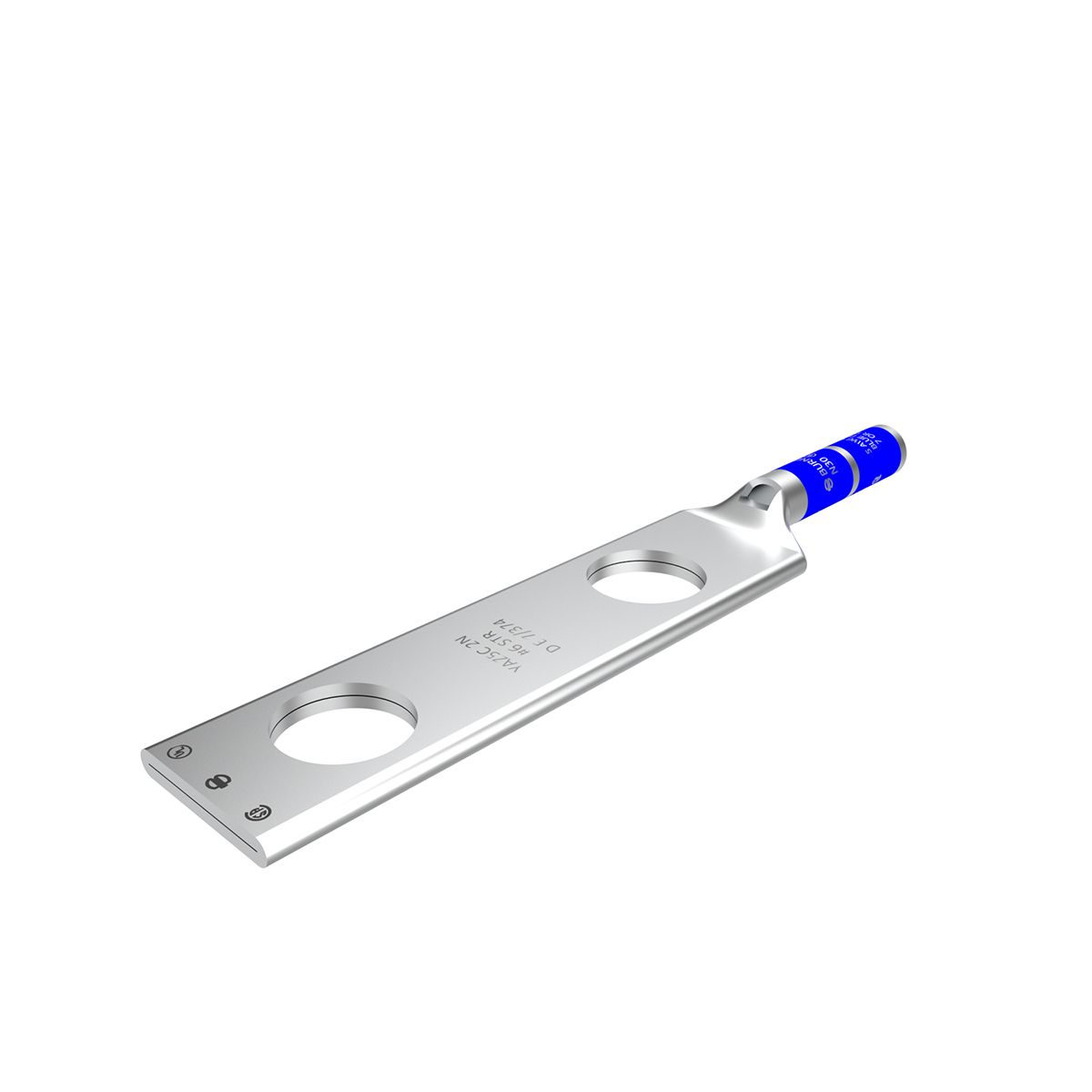

2 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown Color Code, 10 Die Index.

Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Die Index: 10

Contact Us
Add to List

More Options

Where to Buy
Get a Quote
Related Links

Product Details

General

Application Wire Termination
Color Code Brown
Connector Type LONG BARREL
Die Index 10
EU RoHS Indicator Yes
Feature - Barrel Style Skived
Feature - Barrel Type Long
Finish Type Tin-Plated
Material COPPER
Physical Attribute - Number of Holes 2
Plated Yes
Plating Type Tin - Electro Plated
Sub Brand HYLUG
Trade Name HYLUG™
Type Long Barrel, Skive, Tin Plated
UPC 781810208557
UPC 12 Digit 7818102085577

Dimensions

Dimension - B Length inch 1.25 in
Dimension - Bolt Hole Size inch 0.56 in
Dimension - Bolt Size fraction 1/2
Dimension - Bolt Size inch 0.5
Dimension - Hole Size fraction 1/2
Dimension - Hole Size inch 0.56 in
Dimension - Hole Size mm 14 mm
Dimension - L Length Overall mm 118 mm
Dimension - Length Overall inch 4.64 in
Dimension - N inch 0.62 in
Dimension - Outside Diameter inch 0.42 in
Dimension - Pad Width inch 0.83 in
Dimension - Strip Length inch 1-5/16
Dimension - Stud Size fraction 1/2
Dimension - Stud Size inch 1/2
Dimension - Z inch 0.64 in
Physical Attribute - Tongue Angle Straight

Electrical Ratings

Voltage - Maximum 35000
Voltage Rating 35 kV

Conductor Related

Conductor - Copper Str Navy Size 60 (37) Navy
Conductor - Copper Str Navy Size Range 60 (37) Navy
Conductor - Copper Str Size 2 AWG
Conductor - Material COPPER
Conductor Size 2 AWG
Conductor Type CODE

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - Industry Standards Met UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 25

Resources and Downloads

Customer Notices

Prop 65 Notice

Specifications

YAZ2C2N Specification Sheet

Installation/Instruction Manual (IOM)

Copper Code Long Terminals Tooling and Installation Instructions

Sales Drawings

se2119371

Videos

HYDENT Compression Terminal Overview Video
