Compression Terminal

By Burndy

Catalog ID: YAZ352N

By Burndy
Catalog ID:  YAZ352N
Prop 65 Notice

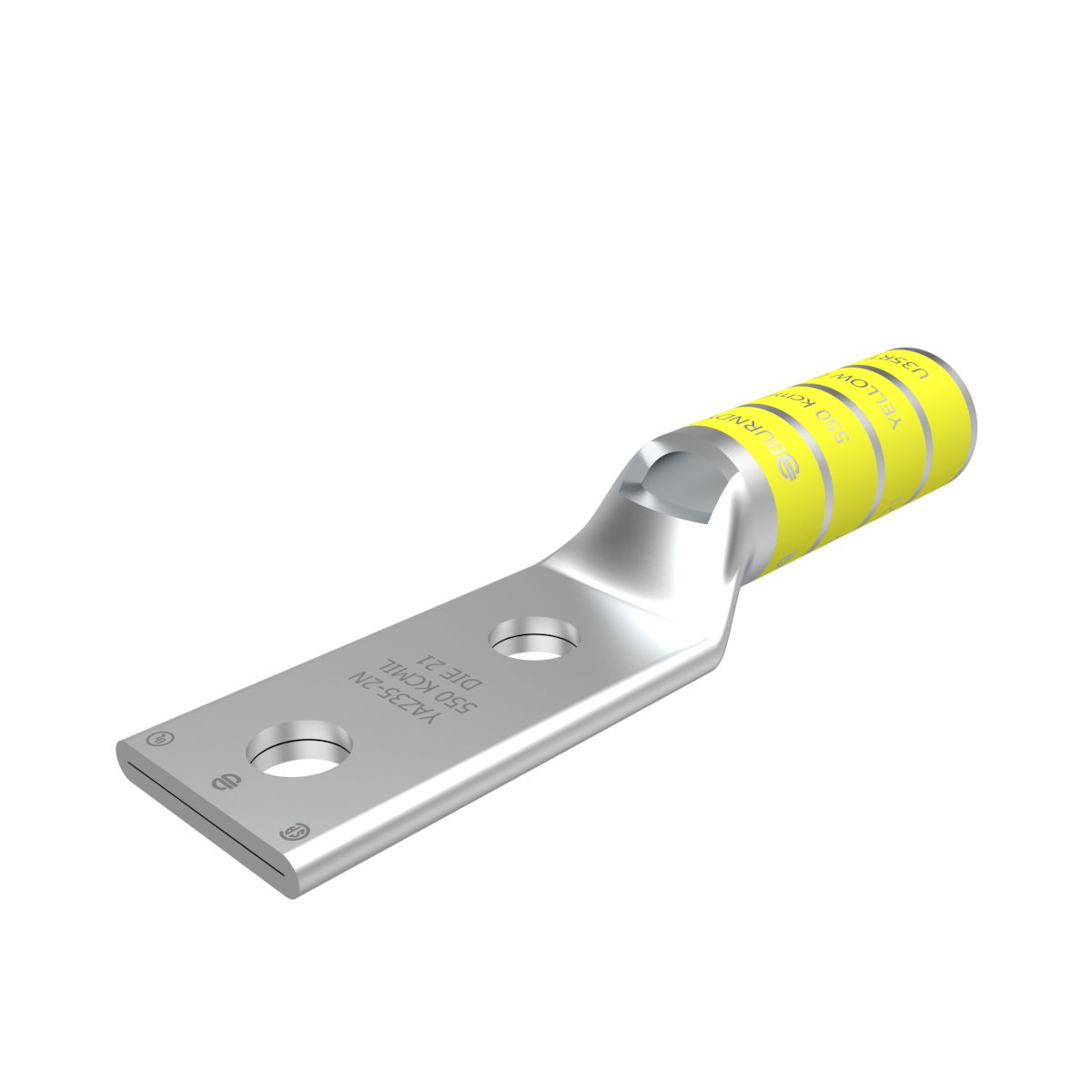

550 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Color Code, Die Index.
Contact Us
Add to List

More Options

Where to Buy
Get a Quote
Related Links

Product Details

General

Application Wire Termination
Color Code Yellow
Connector Type LONG BARREL
Die Index 21
Feature - Barrel Style Skived
Feature - Barrel Type Long
Finish Type Tin-Plated
Material COPPER
Physical Attribute - Number of Holes 2
Plated Y
Plating Type Tin - Electro Plated
Trade Name HYLUG™
Type Long Barrel, Skive, Tin Plated
UPC 781810227954
UPC 12 Digit 7818102279544

Dimensions

Dimension - B Length fraction 2-5/8 in
Dimension - B Length inch 2.62 in
Dimension - Bolt Hole Size inch 0.56 in
Dimension - Bolt Size fraction 1/2
Dimension - Bolt Size inch 0.5
Dimension - Hole Size fraction 1/2
Dimension - Hole Size inch 0.56 in
Dimension - Hole Size mm 14 mm
Dimension - L Length Overall mm 164 mm
Dimension - Length Overall inch 6.45 in
Dimension - N inch 0.62 in
Dimension - Outside Diameter inch 1.12 in
Dimension - Pad Width inch 1.65 in
Dimension - Strip Length inch 2-11/16
Dimension - Stud Size fraction 1/2
Dimension - Stud Size inch 1/2
Dimension - Z inch 0.64 in
Physical Attribute - Tongue Angle Straight

Electrical Ratings

Voltage - Maximum 35000
Voltage Rating 35 kV

Conductor Related

Conductor - Copper Str Size 550 KCMIL
Conductor - Material COPPER
Conductor Size 550 KCMIL
Conductor Type CODE

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - Industry Standards Met UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 6
Minimum Pack Quantity 1
