Compression Terminal

By Burndy

Catalog ID: YAZ34TC1290

By Burndy
Catalog ID:  YAZ34TC1290
Prop 65 Notice

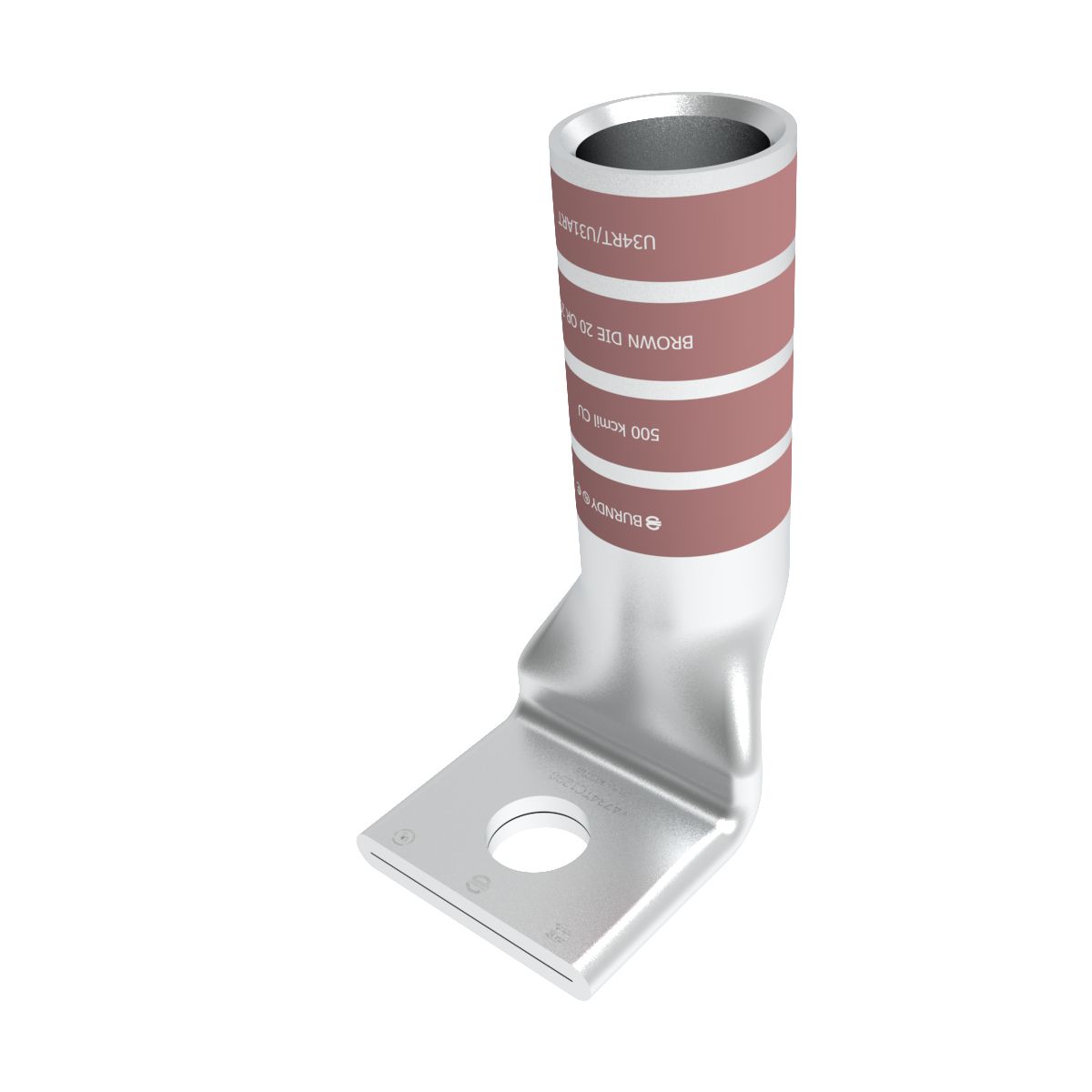

1 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 500 kcmil, 1/2" stud, Brown, 20 or 299 Index.
Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Application Wire Termination
Color Code Brown
Connector Type LONG BARREL
Die Index 20
Feature - Barrel Style Skived
Feature - Barrel Type Long
Finish Type Tin-Plated
Material COPPER
Physical Attribute - Number of Holes 1
Plated Y
Plating Type Tin - Electro Plated
Trade Name HYLUG™
Type Long Barrel, Skive, Tin Plated
UPC 781810240489
UPC 12 Digit 7818102404899

Dimensions

Dimension - B Length fraction 2-1/4 in
Dimension - B Length inch 2.25 in
Dimension - Bolt Hole Size inch 0.52 in
Dimension - Bolt Size fraction 1/2
Dimension - Bolt Size inch 0.5
Dimension - Height inch 3.41 in
Dimension - Hole Size fraction 1/2
Dimension - Hole Size inch 0.53
Dimension - Hole Size mm 13.5 mm
Dimension - L Length Overall mm 45 mm
Dimension - Length Overall inch 1.78 in
Dimension - N inch 0.53 in
Dimension - Outside Diameter inch 1.06 in
Dimension - Pad Width inch 1.55 in
Dimension - Strip Length inch 2-5/16
Dimension - Stud Size fraction 1/2
Dimension - Z inch 0.55 in
Physical Attribute - Tongue Angle 90 Degree

Electrical Ratings

Voltage - Maximum 35000
Voltage Rating 35 kV

Conductor Related

Conductor - Copper Str Size 500 KCMIL
Conductor - Material COPPER
Conductor Size 500 KCMIL
Conductor Type CODE

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 25
Pallet Quantity 3700

Resources and Downloads

Customer Notices

Prop 65 Notice

Specifications

YAZ34TC1290 Specification Sheet

Sales Drawings

SE..212356-26

Videos

HYDENT Compression Terminal Overview Video
