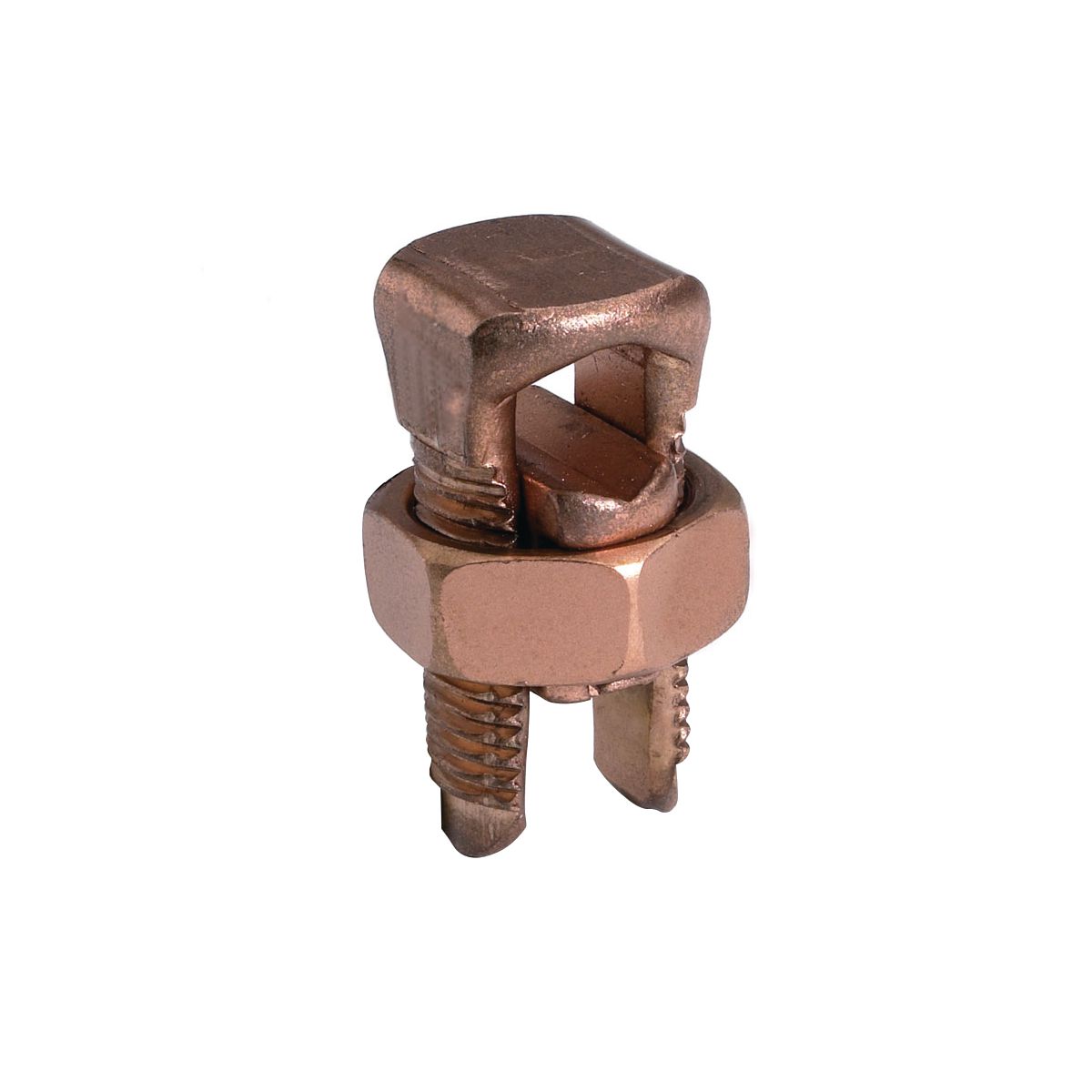

KS223, Split Bolt Connector

By Burndy

Catalog ID: KS223

By Burndy
Catalog ID:  KS223
Prop 65 Notice
Copper Split Bolt, Cu: 6 AWG (Str)-2 AWG (Sol) (Run & Tap).

Features: Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors, Type KS-3 Accommodates 3 Maximum Size Conductors, Conductor Type: Run And Tap: Solid Copperweld, Commercial Stranded And Solid Copper, Type D Copperweld, Stranded Copperweld, Type A Copperweld, Installation Torque: 275 IN-LB, Length: 1.5 IN, Cross Flats: 0.75 IN, Width: 0.6 IN

Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Application For Direct Burial Applications, Copper, Copperweld
Connector Type Split Bolt
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 275 LBS/in
Material Copper
Plated N
Plating Type Unplated
Sub Brand SERVIT
Trade Name SERVIT®
Type KS-3, Compact
UPC 781810022504
UPC 12 Digit 7818100225044

Dimensions

Dimension - Cross Flats inch .74 in
Dimension - L Length Overall mm 34 mm
Dimension - Length Overall inch 1.5
Dimension - Width inch 0.84 in
Dimension - Width mm 21 mm
Width 0.6 in

Conductor Related

Conductor - Copper Solid Run 2 AWG
Conductor - Copper Solid Run Range 2 AWG
Conductor - Copper Solid Tap 2 AWG
Conductor - Copper Str Run 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Conductor - Copper Str Run Range 6 STR - 3 STR
Conductor - Copper Str Tap 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Conductor - Copper Str Tap Range 6 STR - 3 STR
Conductor - CopperWeld Solid Run 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Conductor - CopperWeld Solid Run Range 8 AWG-4 AWG
Conductor - CopperWeld Solid Tap 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Conductor - CopperWeld Solid Tap Range 8 AWG-4 AWG
Conductor - CopperWeld Str Run 6 D AWG;5 A AWG;5 D AWG;5 P AWG;4 A AWG
Conductor - CopperWeld Str Run Range 6 D AWG-4 A AWG
Conductor - CopperWeld Str Tap 6 D AWG;5 A AWG;5 D AWG;5 P AWG;4 A AWG
Conductor - CopperWeld Str Tap Range 6 D AWG-4 A AWG
Conductor Type
  • CU C Solid-Run
  • CU C Str-Run
  • CU Weld C Solid-Run
  • CU Weld C Str-Run
  • CU C Str-Tap
  • CU Weld C Solid-Tap
  • CU Weld C Str-Tap

Certifications and Compliance

Certification - CSA Approved No
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) RUS
Standards - Industry Standards Met RUS
Standards - RoHS Compliance Status CM
UL Listed No

Logistics

Carton Quantity 100
Pallet Quantity 17400
