KS27

By Burndy

Catalog ID: KS27

By Burndy
Catalog ID:  KS27
Prop 65 Notice

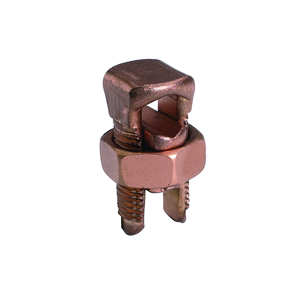

Copper Split Bolt, Cu: 1 AWG-3/0 AWG (Str) (Run & Tap).

Features: Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors, Conductor Type: Run: Commercial Stranded And Solid Copper, Tap: Commercial Stranded And Solid Copper, Installation Torque: 500 IN-LB, Width: 1.17 IN, Cross Flats: 1.36 IN, Length: 1.86 IN

Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Application For Direct Burial Cables
Connector Type Split Bolt
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 500 in
Material Copper
Plated N
Plating Type Unplated
Sub Brand SERVIT
Trade Name SERVIT®
Type KS
UPC 781810013557
UPC 12 Digit 7818100135577

Dimensions

Dimension - B Length inch 1.00 in
Dimension - Cross Flats inch 1.36 in
Dimension - L Length Overall mm 47 mm
Dimension - Length Overall inch 2.04
Dimension - Width inch 1.17 in
Dimension - Width mm 30 mm
Width 1.17 in

Conductor Related

Conductor - Copper Solid Run 4/0 AWG
Conductor - Copper Solid Run Range 1 AWG-3/0 AWG
Conductor - Copper Solid Tap 4/0 AWG
Conductor - Copper Solid Tap Range 8 AWG-3/0 AWG
Conductor - Copper Str Run 1 AWG;1/0 ;2/0 AWG;3/0 AWG
Conductor - Copper Str Run Range 1 STR - 3/0 STR
Conductor - Copper Str Tap 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG
Conductor - Copper Str Tap Range 1 STR - 3/0 STR
Conductor Type
  • CU C Solid-Run
  • CU C Str-Run
  • CU Weld C Solid-Run
  • CU Weld C Str-Run
  • CU C Str-Tap
  • CU Weld C Solid-Tap
  • CU Weld C Str-Tap
  • CU C Solid-Tap

Certifications and Compliance

Certification - CSA Approved No
Certification - ETL No
Certification - UL Listed Direct Burial Yes
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s)
  • UL 486A
  • UL486B
Standards - Industry Standards Met
  • UL 486A
  • UL486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 25
Pallet Quantity 8700
