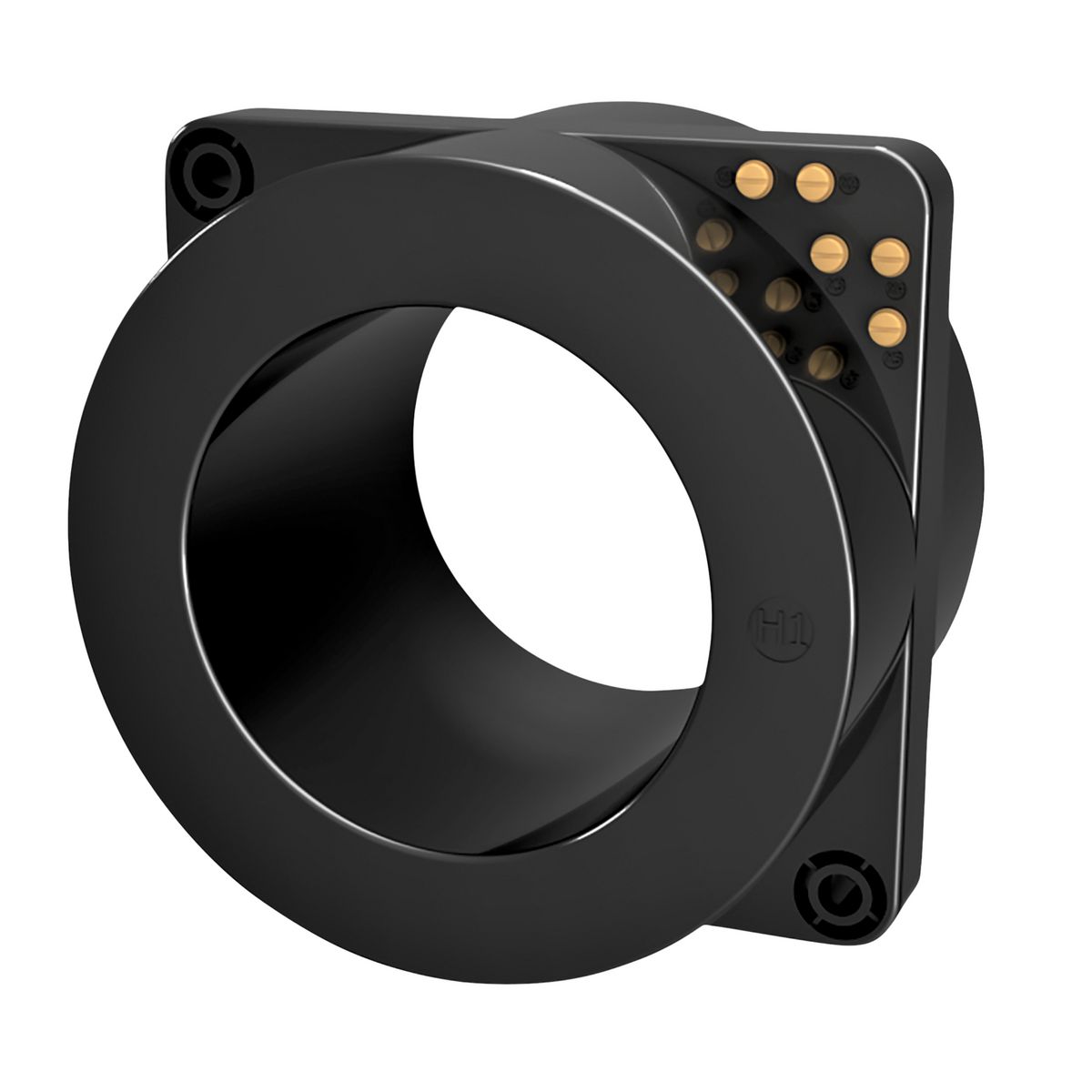

CTS-650D - Current Transformer - Switchgear Application, 6.5" window

By Meramec
By Meramec
Low Voltage Current Transformers for Switchgear Applications.
  • Relay and metering application
  • 6.5" (165 mm) window
  • 9.88" (251 mm) W x 9.88" (251mm) H x 6.75" (171 mm) D
  • 50A - 4000A primary current for SR
  • 600A - 4000A primary current for MR
  • 5A secondary current
  • 60 Hz rated frequency
  • C10 through C400 relaying classification, depending on ratio and burden
  • 0.3 through 4.8 metering accuracy, depending on ratio and burden
  • 0.6kV, 10kV BIL full wave
  • 180 x Rated Current mechanical rating
  • 80 x Rated Current, 1 sec. thermal rating
  • 58lbs./26.4kg weight (approx.)
  • UL recognized
  • IEC version also available
Contact Us

More Options

Get a Quote

Product Details

General

Application Relaying and Metering
Color - Housing Black

Resources and Downloads

Literature

CTS-650D (SF02041E)

Sales Drawings

CTS-650D

Videos

Meramec Factory Tour: Cuba, MO - Hubbell Power Systems (VI10142E1018)
