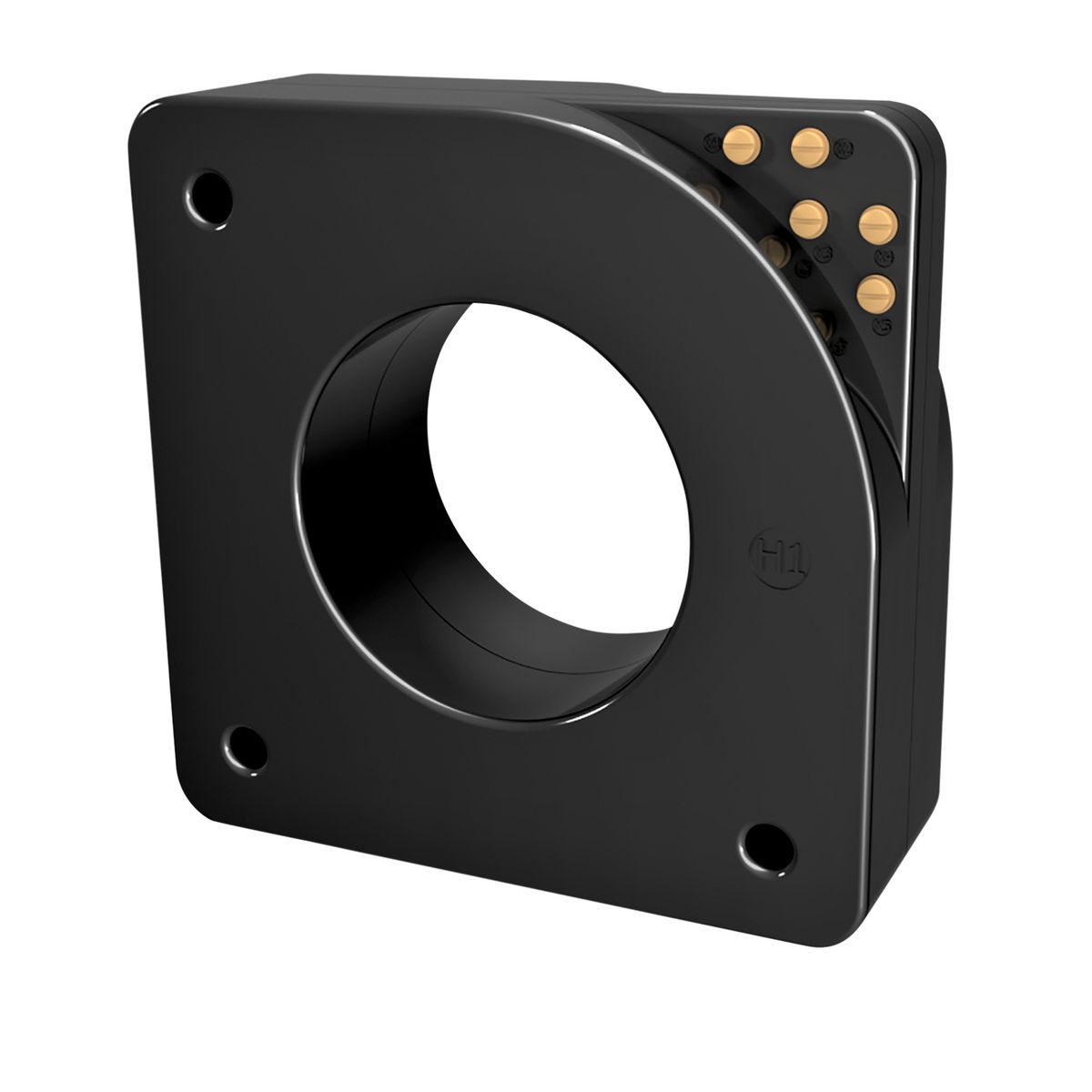

CTX-550 - Current Transformer - Switchgear Applications, 5.5" window

By Meramec
By Meramec
Low Voltage Current Transformers for Switchgear Applications.
  • Relay and metering application
  • 5.25" (133 mm) window
  • 9.88" (251 mm) W x 9.88" (251mm) H x 3.50" (89 mm) D
  • 50A - 5000A primary current for SR
  • 600A - 2000A primary current for MR
  • 5A secondary current
  • 60 Hz rated frequency
  • C10 through C400 relaying classification, depending on ratio and burden
  • 0.3 through 4.8 metering accuracy, depending on ratio and burden
  • 0.6kV, 10kV BIL full wave
  • 180 x Rated Current mechanical rating
  • 80 x Rated Current, 1 sec. thermal rating
  • 31lbs./14kg weight (approx.)
  • IEC version also available
Contact Us

More Options

Get a Quote

Product Details

General

Application Relaying and Metering
Color - Housing Black

Resources and Downloads

Literature

Transformers CTX-525 Sales Flyer (SF02063E)

Sales Drawings

CTX-525

Videos

Meramec Factory Tour: Cuba, MO - Hubbell Power Systems (VI10142E1018)
