Power Factor Correction Equipment

15kV, 25kV & 35kV Medium Voltage Shunt Capacitors

By Trinetics
50–600kVAR, 2.4–19.92kV (Standard externally fused ratings) Shunt Power Factor Capacitors

CSD Oil-Filled 125kV BIL, 200A Switch, 17"

By Trinetics
Catalog ID: 33078601
15kV,125kV BIL, 200A oil switch, with 17" creep bushings, manual handle, 120V motor operator, 5-pin receptacle, NEMA type pole mounting hanger, and (2) wildlife guards

CSD Oil-Filled 150kV BIL, 90A Switch, 17"

By Trinetics
Catalog ID: 33184601
20kV,125kV BIL, 90A oil switch, with 17" creep bushings, manual handle, 120V motor operator, 5-pin receptacle, NEMA type pole mounting hanger, and (2) wildlife guards

CSD Oil-Filled 150kV BIL, 90A Switch, 24"

By Trinetics
Catalog ID: 33184701
20kV, 150kV BIL, 90A oil switch, with 24" creep bushings, manual handle, 120V motor operator, 5-pin receptacle, NEMA type pole mounting hanger, and (2) wildlife guards

CSD Oil-Filled 95kV BIL, 200A Switch, 11"

By Trinetics
Catalog ID: 33050001
15kV, 95kV BIL, 200A oil switch, with 11" creep bushings, manual handle, 120V motor operator, 5-pin receptacle, NEMA type pole mounting hanger, and (2) wildlife guards

Line Post Sensor - Current & Voltage

By Hubbell Power Systems
Catalog ID: PSC82012130
Current and voltage line post sensor, Current Ratio - 600A:10V, Voltage Ratio - 10000:1, 35 kV

Line Post Sensor - Current & Voltage

By Hubbell Power Systems
Catalog ID: PSC82014110
Current line post sensor, Current Ratio - 1000A:10V, 27 kV

Line Post Sensor - Current & Voltage

By Hubbell Power Systems
Catalog ID: PSC82014140
Current line post sensor, Current Ratio - 600A:10V, 38 kV

Line Post Sensor - Current & Voltage

By Hubbell Power Systems
Catalog ID: PSC82012110
Voltage line post sensor, Voltage Ratio - 3300:1, 35 kV

Line Post Sensor - Current & Voltage

By Hubbell Power Systems
Catalog ID: PSC82011120
Voltage line post sensor, Voltage Ratio - 10000:1, 27 kV

Line Post Sensor - Current & Voltage

By Hubbell Power Systems
Catalog ID: PSC82011110
Current and voltage line post sensor, Current Ratio - 600A:10V, Voltage Ratio - 1400:1, 15 kV

Line Post Sensor - Current Only

By Hubbell Power Systems
Catalog ID: PSC82012200
Current and voltage line post sensor, Current Ratio - 600A:10V, Voltage Ratio - 3300:1, 35 kV

Line Post Sensor - Current Only

By Hubbell Power Systems
Catalog ID: PSC82014200
Current line post sensor, Current Ratio - 1000A:10V, 35 kV

Line Post Sensor - Current Only

By Hubbell Power Systems
Catalog ID: PSC82014100
Current line post sensor, Current Ratio - 600A:10V, 27 kV

Line Post Sensor - Current Only

By Hubbell Power Systems
Catalog ID: PSC82012100
Voltage line post sensor, Voltage Ratio - 10000:1, 35 kV

Line Post Sensor - Current Only

By Hubbell Power Systems
Catalog ID: PSC82011100
Current and voltage line post sensor, Current Ratio - 600A:10V, Voltage Ratio - 10000:1, 15 kV

Line Post Sensor - Current Only

By Hubbell Power Systems
Catalog ID: PSC82011200
Voltage line post sensor, Voltage Ratio - 2200:1, 27 kV

Line Post Sensor - Voltage Only

By Hubbell Power Systems
Catalog ID: PSC82012010
Current and voltage line post sensor, Current Ratio - 600A:10V, Voltage Ratio - 10000:1, 27 kV

Line Post Sensor - Voltage Only

By Hubbell Power Systems
Catalog ID: PSC82014040
Current line post sensor, Current Ratio - 1000A:10V, 15 kV

Line Post Sensor - Voltage Only

By Hubbell Power Systems
Catalog ID: PSC82014010
Current line post sensor, Current Ratio - 600A:10V, 15 kV

Line Post Sensor - Voltage Only

By Hubbell Power Systems
Catalog ID: PSC82011020
Voltage line post sensor, Voltage Ratio - 1400:1, 15 kV

Line Post Sensor - Voltage Only

By Hubbell Power Systems
Catalog ID: PSC82011010
Voltage line post sensor, Voltage Ratio - 10000:1, 15 kV

Line Post Sensor - Voltage Only

By Hubbell Power Systems
Catalog ID: PSC82012030
Current and voltage line post sensor, Current Ratio - 600A:10V, Voltage Ratio - 2200:1, 27 kV

Sensor Cable - 2 Pin

By Hubbell Power Systems
The Line Post Sensor cables provide insulated dual-shielded wiring for transferring data between the sensor and a control box. Each cable is fitted with either a 2-PIN or 4-PIN military grade (MIL-DTL-5015) connector to allow easy connection to the sensor output.

Sensor Cable - 4 Pin

By Hubbell Power Systems
The Line Post Sensor cables provide insulated dual-shielded wiring for transferring data between the sensor and a control box. Each cable is fitted with either a 2-PIN or 4-PIN military grade (MIL-DTL-5015) connector to allow easy connection to the sensor output.

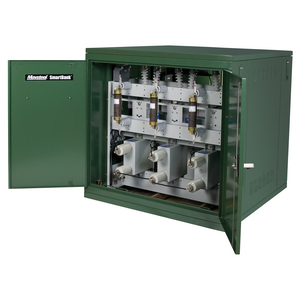

SmartBank™ Medium-Voltage Pad-Mounted Capacitor Banks

By Trinetics
5kV thru 35kV and KVAR ratings from 150 to 3600, medium voltage pad-mounted capacitor banks

Smartbank™ Medium-Voltage Pole-Mounted Capacitor Banks

By Trinetics
5kV thru 35kV and kVAR ratings from 150 to 3600 medium voltage, pole-mounted capacitor banks

SmartClose 15kV, 110kV BIL, 200A Synchronous Vacuum Switch, 18"

By Trinetics
Catalog ID: SMC15-110D1D2ME6XX
15kV, 110kV BIL, 200A 3ph tank capacitor switch with 3-120V solenoid operators for optional independent pole operation, 3 manual open/close handles, 6 integral voltage sensors, substation frame compatible mounting flange, 5-pin receptacle for control cable, and fiber optic compartment with 2 AVAGO snap-on bulkhead connectors. Includes wildlife covers.

SmartClose 15kV, 110kV BIL, 200A Synchronous Vacuum Switch, 33"

By Trinetics
Catalog ID: SMC15-110D1D2MEAXX
15kV, 110kV BIL, 200A 3ph tank capacitor switch with 3-120V solenoid operators for optional independent pole operation, 3 manual open/close handles, 6 integral voltage sensors, substation frame compatible mounting flange, 5-pin receptacle for control cable, and fiber optic compartment with 2 AVAGO snap-on bulkhead connectors. Includes wildlife covers. For use in pole bank applications.

SmartClose 15kV, 110kV BIL, 400A Synchronous Vacuum Switch, 18"

By Trinetics
Catalog ID: SMC15-110E1D2ME6XX
15kV, 110kV BIL, 400A 3ph tank capacitor switch with 3-120V solenoid operators for optional independent pole operation, 3 manual open/close handles, 6 integral voltage sensors, substation frame compatible mounting flange, 5-pin receptacle for control cable, and fiber optic compartment with 2 AVAGO snap-on bulkhead connectors. Includes wildlife covers.
