OVERVIEW

The Intent linear flood family joins Kim Lighting’s extensive flood offering. This compact architectural flood provides optimal appearance and performance for exterior wall washing, grazing or sign lighting applications in static white, RGBW and RGBA configurations.

Seamless Variety

The wide array of distributions offered allow for completely different effects to be shown, even in the same application. Narrow distribution provides a subtle accent to highlight the architectural details surrounding the windows, while the wide flood bathes the facade dramatically in bands of light drawing your eyes upward.

Uniformity

Wall wash distribution creates a uniform lit appearance even with a minimal 12” setback. The optic creates an asymmetric pattern that allows for light to skim the surface without the luminaire being tilted. This allows for an even distribution of light across the surface.

Connectivity

This innovative design allows for linear fixture runs without ever having to open the product and expose it to the elements. This is achieved by connecting an IP68 rated cord between two sealed driver compartments. An architectural cover is also offered to shield the cord and continue the seamless appearance of the luminaire.

The Intent Is...

DISTRIBUTIONS

White and RGBW distributions in variety of distribution patterns

White: Narrow, Narrow Medium, Medium Flood, Wide Flood, Wall Wash, Wall Graze, Horizontal Flood

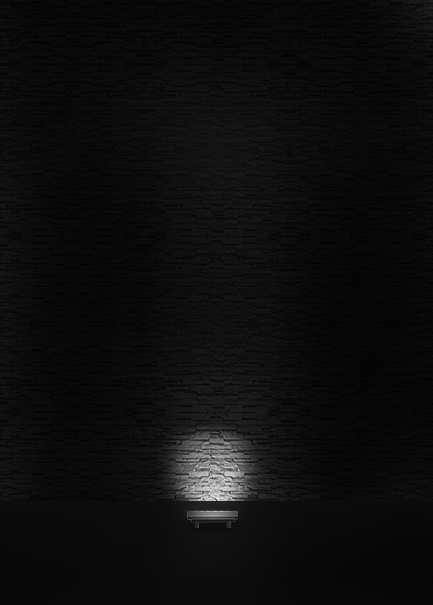

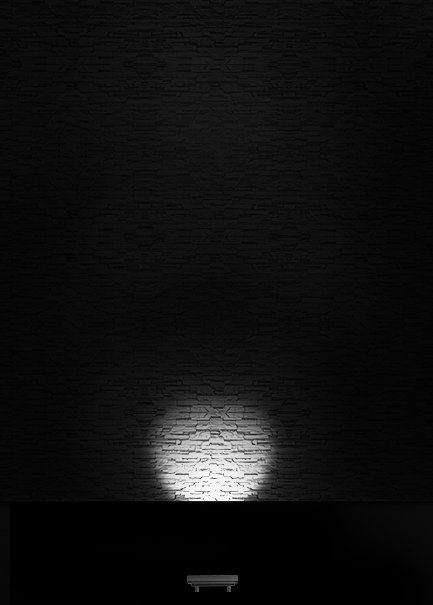

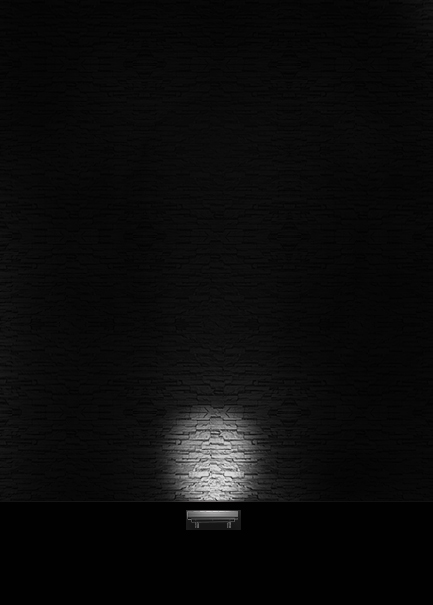

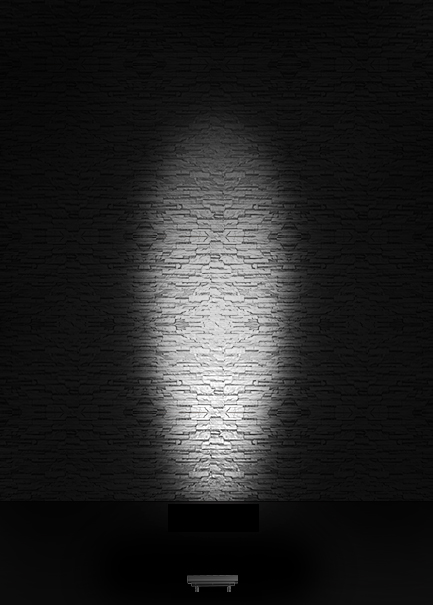

White Distribution

RGBW: Narrow Spot, Spot Narrow, Narrow Medium, Medium, Medium Flood, Wall Graze

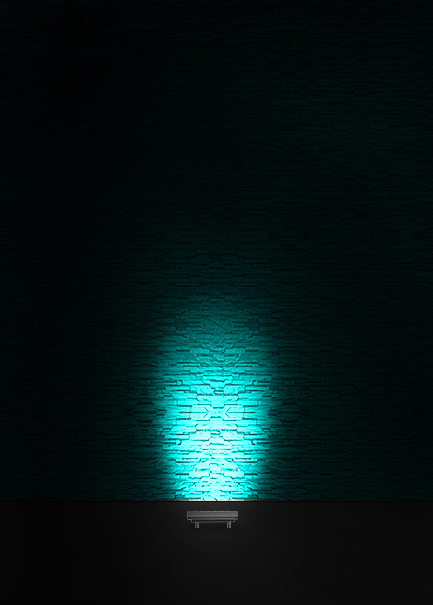

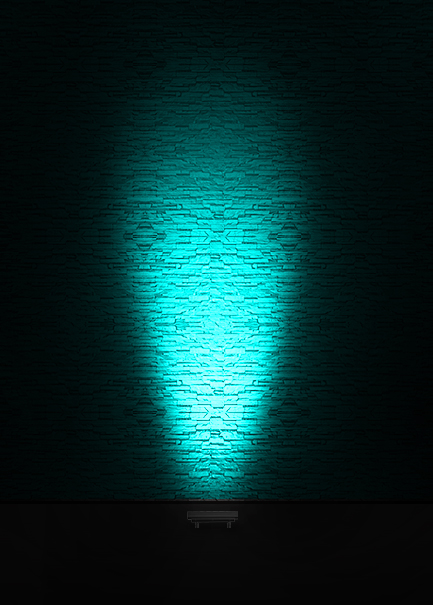

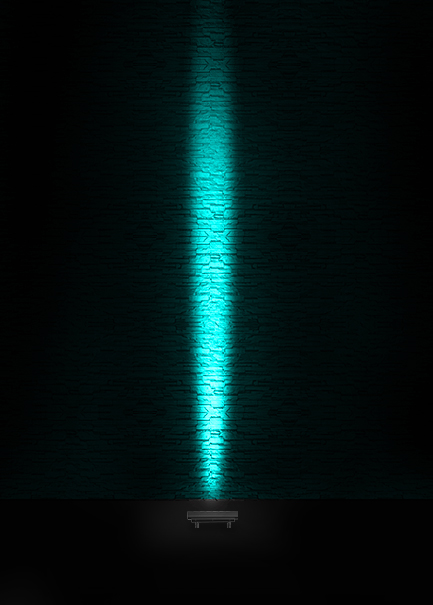

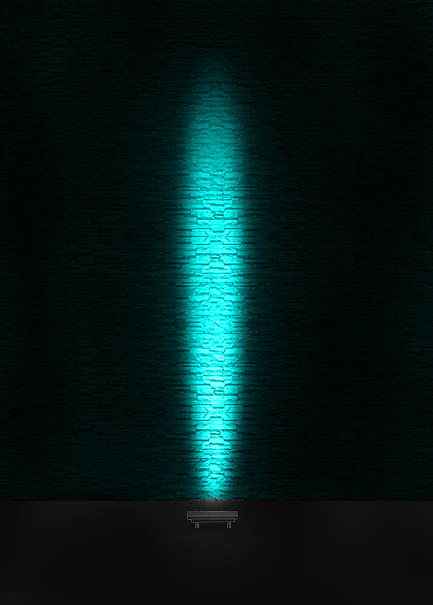

RGBW Distribution

CONTROL

Color: Set the mood with the KFL collection by dimming and color control via Bluetooth® wireless or DMX hardwired connectivity. The Bluetooth app provides a cost-effective way to set color, add presets, dim the luminaires, or even pull specific colors from a photograph. A wired DMX protocol can also be used to create stunning light shows that seamlessly change color.

White: Luminaires enabled with NX Distributed Intelligence™ wireless radios create an intelligent mesh network with the interior controls. Groups are dimmed via an astronomical time clock and schedules can be updated at any time with the Bluetooth® commissioning app.

ENGINEERING EXCELLENCE

Internal Features

Thermal fold-back dims the fixture in the chance it sees too high of temperatures. This feature protects the components from over-heating which would decrease the life of the luminaire.

Standard 10kA 20kV surge suppression provides an enhanced level of protection against power spikes and surges for ultimate peace of mind and long-term luminaire operation.

Engineering Excellence banner

CONNECTION OPTIONS

Cable Ready

Wiring can be mounted through a cable on the side of the driver compartment. If this option is chosen, fixture will automatically come with connectors on both sides of the fixture.

Left Mounting and Cable Ready

Both above wiring configurations can be combined to create to configuration shown here.

Connection Banner

MOUNTING OPTIONS

Mounting Options Banner

Photometry

IES Files Color Temperature CRI Delivered Lumens Lm/W Watts Distribution Type
INT-2-12L-15-RGBA-M
IES file
590 nm 670 lm 42 15.98 W Medium
INT-2-12L-15-RGBA-MF
IES file
590 nm 719 lm 44 16.4 W Medium Flood
INT-2-12L-15-RGBA-N
IES file
590 nm 725 lm 44 16.4 W Narrow
INT-2-12L-15-RGBA-NM
IES file
590 nm 657 lm 40 16.4 W Narrow Medium
INT-2-12L-15-RGBA-NS
IES file
590 nm 741 lm 45 16.4 W Narrow Spot
INT-2-12L-15-RGBA-SP
IES file
590 nm 757 lm 46 16.4 W Spot
INT-2-12L-15-RGBA-WG
IES file
590 nm 730 lm 45 16.4 W Wall Graze
INT-2-12L-15-RGBW-M
IES file
6500 K 70 CRI 1209 lm 73 16.48 W Medium
INT-2-12L-15-RGBW-MF
IES file
6500 K 70 CRI 1298 lm 79 16.51 W Medium Flood
INT-2-12L-15-RGBW-N
IES file
6500 K 70 CRI 1308 lm 79 16.49 W Narrow
INT-2-12L-15-RGBW-NM
IES file
6500 K 70 CRI 1185 lm 72 16.47 W Narrow Medium
INT-2-12L-15-RGBW-NS
IES file
6500 K 70 CRI 1338 lm 81 16.48 W Narrow Spot
INT-2-12L-15-RGBW-SP
IES file
6500 K 70 CRI 1366 lm 83 16.47 W Spot
INT-2-12L-15-RGBW-WG
IES file
6500 K 70 CRI 1318 lm 79 16.67 W Wall Graze
INT-2-24L-30-3K7-HF
IES file
3000 K 70 CRI 3061 lm 107 28.6 W Horizontal Flood
INT-2-24L-30-3K7-MF
IES file
3000 K 70 CRI 3226 lm 113 28.6 W Medium Flood
INT-2-24L-30-3K7-N
IES file
3000 K 70 CRI 3319 lm 116 28.6 W Narrow
INT-2-24L-30-3K7-NM
IES file
3000 K 70 CRI 3332 lm 117 28.6 W Narrow Medium
INT-2-24L-30-3K7-WF
IES file
3000 K 70 CRI 3392 lm 119 28.6 W Wide Flood
INT-2-24L-30-3K7-WF-DL
IES file
3000 K 70 CRI 2803 lm 98 28.6 W Wide Flood
INT-2-24L-30-3K7-WG
IES file
3000 K 70 CRI 3385 lm 118 28.6 W Wall Graze
INT-2-24L-30-3K7-WW
IES file
3000 K 70 CRI 3136 lm 110 28.6 W Wall Wash
INT-2-24L-30-4K7-HF
IES file
4000 K 70 CRI 3218 lm 113 28.6 W Horizontal Flood
INT-2-24L-30-4K7-MF
IES file
4000 K 70 CRI 3391 lm 119 28.6 W Medium Flood
INT-2-24L-30-4K7-N
IES file
4000 K 70 CRI 3490 lm 122 28.6 W Narrow
INT-2-24L-30-4K7-NM
IES file
4000 K 70 CRI 3504 lm 123 28.6 W Narrow Medium
INT-2-24L-30-4K7-WF
IES file
4000 K 70 CRI 3566 lm 125 28.6 W Wide Flood
INT-2-24L-30-4K7-WF-DL
IES file
4000 K 70 CRI 2947 lm 103 28.6 W Wide Flood
INT-2-24L-30-4K7-WG
IES file
4000 K 70 CRI 3559 lm 124 28.6 W Wall Graze
INT-2-24L-30-4K7-WW
IES file
4000 K 70 CRI 3297 lm 115 28.6 W Wall Wash
INT-2-24L-30-5K7-HF
IES file
5000 K 70 CRI 3285 lm 115 28.6 W Horizontal Flood
INT-2-24L-30-5K7-MF
IES file
5000 K 70 CRI 3462 lm 121 28.6 W Medium Flood
INT-2-24L-30-5K7-N
IES file
5000 K 70 CRI 3563 lm 125 28.6 W Narrow
INT-2-24L-30-5K7-NM
IES file
5000 K 70 CRI 3577 lm 125 28.6 W Narrow Medium
INT-2-24L-30-5K7-WF
IES file
5000 K 70 CRI 3640 lm 127 28.6 W Wide Flood
INT-2-24L-30-5K7-WF-DL
IES file
5000 K 70 CRI 3009 lm 105 28.6 W Wide Flood
INT-2-24L-30-5K7-WG
IES file
5000 K 70 CRI 3632 lm 127 28.6 W Wall Graze
INT-2-24L-30-5K7-WW
IES file
5000 K 70 CRI 3365 lm 118 28.6 W Wall Wash
INT-2-24L-35-3K7-HF
IES file
3000 K 70 CRI 4249 lm 106 39.9 W Horizontal Flood
INT-2-24L-35-3K7-MF
IES file
3000 K 70 CRI 4478 lm 112 39.9 W Medium Flood
INT-2-24L-35-3K7-N
IES file
3000 K 70 CRI 4608 lm 115 39.9 W Narrow
INT-2-24L-35-3K7-NM
IES file
3000 K 70 CRI 4626 lm 116 39.9 W Narrow Medium
INT-2-24L-35-3K7-WF
IES file
3000 K 70 CRI 4708 lm 118 39.9 W Wide Flood
INT-2-24L-35-3K7-WF-DL
IES file
3000 K 70 CRI 3891 lm 98 39.9 W Wide Flood
INT-2-24L-35-3K7-WG
IES file
3000 K 70 CRI 4698 lm 118 39.9 W Wall Graze
INT-2-24L-35-3K7-WW
IES file
3000 K 70 CRI 4353 lm 109 39.9 W Wall Wash
INT-2-24L-35-4K7-HF
IES file
4000 K 70 CRI 4467 lm 112 39.9 W Horizontal Flood
INT-2-24L-35-4K7-MF
IES file
4000 K 70 CRI 4708 lm 118 39.9 W Medium Flood
INT-2-24L-35-4K7-N
IES file
4000 K 70 CRI 4845 lm 121 39.9 W Narrow
INT-2-24L-35-4K7-NM
IES file
4000 K 70 CRI 4864 lm 122 39.9 W Narrow Medium
INT-2-24L-35-4K7-WF
IES file
4000 K 70 CRI 4950 lm 124 39.9 W Wide Flood
INT-2-24L-35-4K7-WF-DL
IES file
4000 K 70 CRI 4091 lm 103 39.9 W Wide Flood
INT-2-24L-35-4K7-WG
IES file
4000 K 70 CRI 4940 lm 124 39.9 W Wall Graze
INT-2-24L-35-4K7-WW
IES file
4000 K 70 CRI 4577 lm 115 39.9 W Wall Wash
INT-2-24L-35-5K7-HF
IES file
5000 K 70 CRI 4560 lm 114 39.9 W Horizontal Flood
INT-2-24L-35-5K7-MF
IES file
5000 K 70 CRI 4805 lm 120 39.9 W Medium Flood
INT-2-24L-35-5K7-N
IES file
5000 K 70 CRI 4945 lm 124 39.9 W Narrow
INT-2-24L-35-5K7-NM
IES file
5000 K 70 CRI 4965 lm 124 39.9 W Narrow Medium
INT-2-24L-35-5K7-WF
IES file
5000 K 70 CRI 5053 lm 127 39.9 W Wide Flood
INT-2-24L-35-5K7-WF-DL
IES file
5000 K 70 CRI 4176 lm 105 39.9 W Wide Flood
INT-2-24L-35-5K7-WG
IES file
5000 K 70 CRI 5042 lm 126 39.9 W Wall Graze
INT-2-24L-35-5K7-WW
IES file
5000 K 70 CRI 4672 lm 117 39.9 W Wall Wash
INT-2-24L-60-3K7-HF
IES file
3000 K 70 CRI 6267 lm 101 62.3 W Horizontal Flood
INT-2-24L-60-3K7-MF
IES file
3000 K 70 CRI 6604 lm 106 62.3 W Medium Flood
INT-2-24L-60-3K7-N
IES file
3000 K 70 CRI 6797 lm 109 62.3 W Narrow
INT-2-24L-60-3K7-NM
IES file
3000 K 70 CRI 6823 lm 110 62.3 W Narrow Medium
INT-2-24L-60-3K7-WF
IES file
3000 K 70 CRI 6945 lm 111 62.3 W Wide Flood
INT-2-24L-60-3K7-WF-DL
IES file
3000 K 70 CRI 5740 lm 92 62.3 W Wide Flood
INT-2-24L-60-3K7-WG
IES file
3000 K 70 CRI 6930 lm 111 62.3 W Wall Graze
INT-2-24L-60-3K7-WW
IES file
3000 K 70 CRI 6421 lm 103 62.3 W Wall Wash
INT-2-24L-60-4K7-HF
IES file
4000 K 70 CRI 6589 lm 106 62.3 W Horizontal Flood
INT-2-24L-60-4K7-MF
IES file
4000 K 70 CRI 6944 lm 111 62.3 W Medium Flood
INT-2-24L-60-4K7-N
IES file
4000 K 70 CRI 7146 lm 115 62.3 W Narrow
INT-2-24L-60-4K7-NM
IES file
4000 K 70 CRI 7174 lm 115 62.3 W Narrow Medium
INT-2-24L-60-4K7-WF
IES file
4000 K 70 CRI 7302 lm 117 62.3 W Wide Flood
INT-2-24L-60-4K7-WF-DL
IES file
4000 K 70 CRI 6035 lm 97 62.3 W Wide Flood
INT-2-24L-60-4K7-WG
IES file
4000 K 70 CRI 7286 lm 117 62.3 W Wall Graze
INT-2-24L-60-4K7-WW
IES file
4000 K 70 CRI 6750 lm 108 62.3 W Wall Wash
INT-2-24L-60-5K7-HF
IES file
5000 K 70 CRI 6726 lm 108 62.3 W Horizontal Flood
INT-2-24L-60-5K7-MF
IES file
5000 K 70 CRI 7088 lm 114 62.3 W Medium Flood
INT-2-24L-60-5K7-N
IES file
5000 K 70 CRI 7294 lm 117 62.3 W Narrow
INT-2-24L-60-5K7-NM
IES file
5000 K 70 CRI 7323 lm 118 62.3 W Narrow Medium
INT-2-24L-60-5K7-WF
IES file
5000 K 70 CRI 7453 lm 120 62.3 W Wide Flood
INT-2-24L-60-5K7-WF-DL
IES file
5000 K 70 CRI 6160 lm 99 62.3 W Wide Flood
INT-2-24L-60-5K7-WG
IES file
5000 K 70 CRI 7437 lm 119 62.3 W Wall Graze
INT-2-24L-60-5K7-WW
IES file
5000 K 70 CRI 6891 lm 111 62.3 W Wall Wash
INT-3-18L-35-RGBA-M
IES file
590 nm 1603 lm 42 38.51 W Medium
INT-3-18L-35-RGBA-MF
IES file
590 nm 1721 lm 45 38.5 W Medium Flood
INT-3-18L-35-RGBA-N
IES file
590 nm 1733 lm 45 38.5 W Narrow
INT-3-18L-35-RGBA-NM
IES file
590 nm 1570 lm 41 38.5 W Narrow Medium
INT-3-18L-35-RGBA-NS
IES file
590 nm 1778 lm 46 38.5 W Narrow Spot
INT-3-18L-35-RGBA-SP
IES file
590 nm 1813 lm 47 38.5 W Spot
INT-3-18L-35-RGBA-WG
IES file
590 nm 1773 lm 46 38.5 W Wall Graze
INT-3-18L-35-RGBW-M
IES file
6500 K 70 CRI 2891 lm 75 38.51 W Medium
INT-3-18L-35-RGBW-MF
IES file
6500 K 70 CRI 3107 lm 81 38.5 W Medium Flood
INT-3-18L-35-RGBW-N
IES file
6500 K 70 CRI 3129 lm 81 38.5 W Narrow
INT-3-18L-35-RGBW-NM
IES file
6500 K 70 CRI 2834 lm 74 38.5 W Narrow Medium
INT-3-18L-35-RGBW-NS
IES file
6500 K 70 CRI 3209 lm 83 38.5 W Narrow Spot
INT-3-18L-35-RGBW-SP
IES file
6500 K 70 CRI 3271 lm 85 38.5 W Spot
INT-3-18L-35-RGBW-WG
IES file
6500 K 70 CRI 3199 lm 83 38.5 W Wall Graze
INT-3-36L-40-3K7-HF
IES file
3000 K 70 CRI 4646 lm 111 42.02 W Horizontal Flood
INT-3-36L-40-3K7-MF
IES file
3000 K 70 CRI 4896 lm 117 42.02 W Medium Flood
INT-3-36L-40-3K7-N
IES file
3000 K 70 CRI 5038 lm 120 42.02 W Narrow
INT-3-36L-40-3K7-NM
IES file
3000 K 70 CRI 5058 lm 120 42.02 W Narrow Medium
INT-3-36L-40-3K7-WF
IES file
3000 K 70 CRI 5148 lm 123 42.02 W Wide Flood
INT-3-36L-40-3K7-WF-DL
IES file
3000 K 70 CRI 4255 lm 101 42.02 W Wide Flood
INT-3-36L-40-3K7-WG
IES file
3000 K 70 CRI 5137 lm 122 42.02 W Wall Graze
INT-3-36L-40-3K7-WW
IES file
3000 K 70 CRI 4760 lm 113 42.02 W Wall Wash
INT-3-36L-40-4K7-HF
IES file
4000 K 70 CRI 4884 lm 116 42.02 W Horizontal Flood
INT-3-36L-40-4K7-MF
IES file
4000 K 70 CRI 5147 lm 122 42.02 W Medium Flood
INT-3-36L-40-4K7-N
IES file
4000 K 70 CRI 5297 lm 126 42.02 W Narrow
INT-3-36L-40-4K7-NM
IES file
4000 K 70 CRI 5318 lm 127 42.02 W Narrow Medium
INT-3-36L-40-4K7-WF
IES file
4000 K 70 CRI 5413 lm 129 42.02 W Wide Flood
INT-3-36L-40-4K7-WF-DL
IES file
4000 K 70 CRI 4473 lm 106 42.02 W Wide Flood
INT-3-36L-40-4K7-WG
IES file
4000 K 70 CRI 5401 lm 129 42.02 W Wall Graze
INT-3-36L-40-4K7-WW
IES file
4000 K 70 CRI 5004 lm 119 42.02 W Wall Wash
INT-3-36L-40-5K7-HF
IES file
5000 K 70 CRI 4986 lm 119 42.02 W Horizontal Flood
INT-3-36L-40-5K7-MF
IES file
5000 K 70 CRI 5254 lm 125 42.02 W Medium Flood
INT-3-36L-40-5K7-N
IES file
5000 K 70 CRI 5407 lm 129 42.02 W Narrow
INT-3-36L-40-5K7-NM
IES file
5000 K 70 CRI 5429 lm 129 42.02 W Narrow Medium
INT-3-36L-40-5K7-WF
IES file
5000 K 70 CRI 5525 lm 131 42.02 W Wide Flood
INT-3-36L-40-5K7-WF-DL
IES file
5000 K 70 CRI 4566 lm 109 42.02 W Wide Flood
INT-3-36L-40-5K7-WG
IES file
5000 K 70 CRI 5513 lm 131 42.02 W Wall Graze
INT-3-36L-40-5K7-WW
IES file
5000 K 70 CRI 5108 lm 122 42.02 W Wall Wash
INT-3-36L-60-3K7-HF
IES file
3000 K 70 CRI 6373 lm 107 59.5 W Horizontal Flood
INT-3-36L-60-3K7-MF
IES file
3000 K 70 CRI 6716 lm 113 59.5 W Medium Flood
INT-3-36L-60-3K7-N
IES file
3000 K 70 CRI 6912 lm 116 59.5 W Narrow
INT-3-36L-60-3K7-NM
IES file
3000 K 70 CRI 6939 lm 117 59.5 W Narrow Medium
INT-3-36L-60-3K7-WF
IES file
3000 K 70 CRI 7062 lm 119 59.5 W Wide Flood
INT-3-36L-60-3K7-WF-DL
IES file
3000 K 70 CRI 5837 lm 98 59.5 W Wide Flood
INT-3-36L-60-3K7-WG
IES file
3000 K 70 CRI 7047 lm 75 93.74 W Wall Graze
INT-3-36L-60-3K7-WW
IES file
3000 K 70 CRI 6529 lm 110 59.5 W Wall Wash
INT-3-36L-60-4K7-HF
IES file
4000 K 70 CRI 6701 lm 113 59.5 W Horizontal Flood
INT-3-36L-60-4K7-MF
IES file
4000 K 70 CRI 7061 lm 119 59.5 W Medium Flood
INT-3-36L-60-4K7-N
IES file
4000 K 70 CRI 7267 lm 122 59.5 W Narrow
INT-3-36L-60-4K7-NM
IES file
4000 K 70 CRI 7295 lm 123 59.5 W Narrow Medium
INT-3-36L-60-4K7-WF
IES file
4000 K 70 CRI 7425 lm 125 59.5 W Wide Flood
INT-3-36L-60-4K7-WF-DL
IES file
4000 K 70 CRI 6137 lm 103 59.5 W Wide Flood
INT-3-36L-60-4K7-WG
IES file
4000 K 70 CRI 7409 lm 125 59.5 W Wall Graze
INT-3-36L-60-4K7-WW
IES file
4000 K 70 CRI 6865 lm 115 59.5 W Wall Wash
INT-3-36L-60-5K7-HF
IES file
5000 K 70 CRI 6840 lm 115 59.5 W Horizontal Flood
INT-3-36L-60-5K7-MF
IES file
5000 K 70 CRI 7208 lm 121 59.5 W Medium Flood
INT-3-36L-60-5K7-N
IES file
5000 K 70 CRI 7418 lm 125 59.5 W Narrow
INT-3-36L-60-5K7-NM
IES file
5000 K 70 CRI 7447 lm 125 59.5 W Narrow Medium
INT-3-36L-60-5K7-WF
IES file
5000 K 70 CRI 7580 lm 127 59.5 W Wide Flood
INT-3-36L-60-5K7-WF-DL
IES file
5000 K 70 CRI 6264 lm 105 59.5 W Wide Flood
INT-3-36L-60-5K7-WG
IES file
5000 K 70 CRI 7564 lm 127 59.5 W Wall Graze
INT-3-36L-60-5K7-WW
IES file
5000 K 70 CRI 7008 lm 118 59.5 W Wall Wash
INT-3-36L-95-3K7-HF
IES file
3000 K 70 CRI 9659 lm 103 93.63 W Horizontal Flood
INT-3-36L-95-3K7-MF
IES file
3000 K 70 CRI 10179 lm 109 93.77 W Medium Flood
INT-3-36L-95-3K7-N
IES file
3000 K 70 CRI 10475 lm 112 93.79 W Narrow
INT-3-36L-95-3K7-NM
IES file
3000 K 70 CRI 10516 lm 112 93.92 W Narrow Medium
INT-3-36L-95-3K7-WF
IES file
3000 K 70 CRI 10703 lm 114 93.68 W Wide Flood
INT-3-36L-95-3K7-WF-DL
IES file
3000 K 70 CRI 8846 lm 94 93.7 W Wide Flood
INT-3-36L-95-3K7-WG
IES file
3000 K 70 CRI 10680 lm 114 93.74 W Wall Graze
INT-3-36L-95-3K7-WW
IES file
3000 K 70 CRI 9895 lm 106 93.51 W Wall Wash
INT-3-36L-95-4K7-HF
IES file
4000 K 70 CRI 10155 lm 108 93.63 W Horizontal Flood
INT-3-36L-95-4K7-MF
IES file
4000 K 70 CRI 10701 lm 114 93.77 W Medium Flood
INT-3-36L-95-4K7-N
IES file
4000 K 70 CRI 11013 lm 117 93.79 W Narrow
INT-3-36L-95-4K7-NM
IES file
4000 K 70 CRI 11056 lm 118 93.92 W Narrow Medium
INT-3-36L-95-4K7-WF
IES file
4000 K 70 CRI 11253 lm 120 93.68 W Wide Flood
INT-3-36L-95-4K7-WF-DL
IES file
4000 K 70 CRI 9300 lm 99 93.7 W Wide Flood
INT-3-36L-95-4K7-WG
IES file
4000 K 70 CRI 11229 lm 120 93.74 W Wall Graze
INT-3-36L-95-4K7-WW
IES file
4000 K 70 CRI 10405 lm 111 93.51 W Wall Wash
INT-3-36L-95-5K7-HF
IES file
5000 K 70 CRI 10366 lm 111 93.63 W Horizontal Flood
INT-3-36L-95-5K7-MF
IES file
5000 K 70 CRI 10924 lm 116 93.77 W Medium Flood
INT-3-36L-95-5K7-N
IES file
5000 K 70 CRI 11242 lm 120 93.79 W Narrow
INT-3-36L-95-5K7-NM
IES file
5000 K 70 CRI 11286 lm 120 93.92 W Narrow Medium
INT-3-36L-95-5K7-WF
IES file
5000 K 70 CRI 11487 lm 123 93.68 W Wide Flood
INT-3-36L-95-5K7-WF-DL
IES file
5000 K 70 CRI 9494 lm 101 93.7 W Wide Flood
INT-3-36L-95-5K7-WG
IES file
5000 K 70 CRI 11463 lm 122 93.74 W Wall Graze
INT-3-36L-95-5K7-WW
IES file
5000 K 70 CRI 10621 lm 114 93.51 W Wall Wash
INT-4-24L-40-RGBA-M
IES file
590 nm 1579 lm 39 40.8 W Medium
INT-4-24L-40-RGBA-MF
IES file
590 nm 1696 lm 42 40.8 W Medium Flood
INT-4-24L-40-RGBA-N
IES file
590 nm 1708 lm 42 40.8 W Narrow
INT-4-24L-40-RGBA-NM
IES file
590 nm 1547 lm 38 40.8 W Narrow Medium
INT-4-24L-40-RGBA-NS
IES file
590 nm 1752 lm 43 40.8 W Narrow Spot
INT-4-24L-40-RGBA-SP
IES file
590 nm 1786 lm 44 40.8 W Spot
INT-4-24L-40-RGBA-WG
IES file
590 nm 1747 lm 43 40.8 W Wall Graze
INT-4-24L-40-RGBW-M
IES file
6500 K 70 CRI 2848 lm 70 40.84 W Medium
INT-4-24L-40-RGBW-MF
IES file
6500 K 70 CRI 3061 lm 75 40.8 W Medium Flood
INT-4-24L-40-RGBW-N
IES file
6500 K 70 CRI 3082 lm 76 40.8 W Narrow
INT-4-24L-40-RGBW-NM
IES file
6500 K 70 CRI 2791 lm 68 40.8 W Narrow Medium
INT-4-24L-40-RGBW-NS
IES file
6500 K 70 CRI 3162 lm 77 40.8 W Narrow Spot
INT-4-24L-40-RGBW-SP
IES file
6500 K 70 CRI 3223 lm 79 40.8 W Spot
INT-4-24L-40-RGBW-WG
IES file
6500 K 70 CRI 3152 lm 77 40.8 W Wall Graze
INT-4-48L-125-3K7-HF
IES file
3000 K 70 CRI 12565 lm 102 123.25 W Horizontal Flood
INT-4-48L-125-3K7-MF
IES file
3000 K 70 CRI 13241 lm 107 123.35 W Medium Flood
INT-4-48L-125-3K7-N
IES file
3000 K 70 CRI 13627 lm 110 123.35 W Narrow
INT-4-48L-125-3K7-NM
IES file
3000 K 70 CRI 13680 lm 111 123.35 W Narrow Medium
INT-4-48L-125-3K7-WF
IES file
3000 K 70 CRI 14127 lm 114 123.72 W Wide Flood
INT-4-48L-125-3K7-WF-DL
IES file
3000 K 70 CRI 11676 lm 95 123.09 W Wide Flood
INT-4-48L-125-3K7-WG
IES file
3000 K 70 CRI 13894 lm 113 123.35 W Wall Graze
INT-4-48L-125-3K7-WW
IES file
3000 K 70 CRI 12873 lm 104 123.35 W Wall Wash
INT-4-48L-125-4K7-HF
IES file
4000 K 70 CRI 13210 lm 107 123.25 W Horizontal Flood
INT-4-48L-125-4K7-MF
IES file
4000 K 70 CRI 13921 lm 113 123.35 W Medium Flood
INT-4-48L-125-4K7-N
IES file
4000 K 70 CRI 14327 lm 116 123.35 W Narrow
INT-4-48L-125-4K7-NM
IES file
4000 K 70 CRI 14383 lm 117 123.35 W Narrow Medium
INT-4-48L-125-4K7-WF
IES file
4000 K 70 CRI 14853 lm 120 123.72 W Wide Flood
INT-4-48L-125-4K7-WF-DL
IES file
4000 K 70 CRI 12276 lm 100 123.09 W Wide Flood
INT-4-48L-125-4K7-WG
IES file
4000 K 70 CRI 14608 lm 118 123.35 W Wall Graze
INT-4-48L-125-4K7-WW
IES file
4000 K 70 CRI 13535 lm 110 123.35 W Wall Wash
INT-4-48L-125-5K7-HF
IES file
5000 K 70 CRI 13485 lm 109 123.25 W Horizontal Flood
INT-4-48L-125-5K7-MF
IES file
5000 K 70 CRI 14211 lm 115 123.35 W Medium Flood
INT-4-48L-125-5K7-N
IES file
5000 K 70 CRI 14625 lm 119 123.35 W Narrow
INT-4-48L-125-5K7-NM
IES file
5000 K 70 CRI 14682 lm 119 123.35 W Narrow Medium
INT-4-48L-125-5K7-WF
IES file
5000 K 70 CRI 15162 lm 123 123.72 W Wide Flood
INT-4-48L-125-5K7-WF-DL
IES file
5000 K 70 CRI 12531 lm 102 123.09 W Wide Flood
INT-4-48L-125-5K7-WG
IES file
5000 K 70 CRI 14912 lm 121 123.35 W Wall Graze
INT-4-48L-125-5K7-WW
IES file
5000 K 70 CRI 13816 lm 112 123.35 W Wall Wash
INT-4-48L-55-3K7-HF
IES file
3000 K 70 CRI 6124 lm 113 53.96 W Horizontal Flood
INT-4-48L-55-3K7-MF
IES file
3000 K 70 CRI 6454 lm 120 53.96 W Medium Flood
INT-4-48L-55-3K7-N
IES file
3000 K 70 CRI 6642 lm 123 53.96 W Narrow
INT-4-48L-55-3K7-NM
IES file
3000 K 70 CRI 6668 lm 124 53.96 W Narrow Medium
INT-4-48L-55-3K7-WF
IES file
3000 K 70 CRI 6787 lm 126 53.96 W Wide Flood
INT-4-48L-55-3K7-WF-DL
IES file
3000 K 70 CRI 5609 lm 104 53.96 W Wide Flood
INT-4-48L-55-3K7-WG
IES file
3000 K 70 CRI 6772 lm 126 53.96 W Wall Graze
INT-4-48L-55-3K7-WW
IES file
3000 K 70 CRI 6275 lm 116 53.96 W Wall Wash
INT-4-48L-55-4K7-HF
IES file
4000 K 70 CRI 6439 lm 119 53.96 W Horizontal Flood
INT-4-48L-55-4K7-MF
IES file
4000 K 70 CRI 6786 lm 126 53.96 W Medium Flood
INT-4-48L-55-4K7-N
IES file
4000 K 70 CRI 6983 lm 129 53.96 W Narrow
INT-4-48L-55-4K7-NM
IES file
4000 K 70 CRI 7011 lm 75 93.92 W Narrow Medium
INT-4-48L-55-4K7-WF
IES file
4000 K 70 CRI 7135 lm 132 53.96 W Wide Flood
INT-4-48L-55-4K7-WF-DL
IES file
4000 K 70 CRI 5897 lm 109 53.96 W Wide Flood
INT-4-48L-55-4K7-WG
IES file
4000 K 70 CRI 7120 lm 132 53.96 W Wall Graze
INT-4-48L-55-4K7-WW
IES file
4000 K 70 CRI 6597 lm 122 53.96 W Wall Wash
INT-4-48L-55-5K7-HF
IES file
5000 K 70 CRI 6573 lm 122 53.96 W Horizontal Flood
INT-4-48L-55-5K7-MF
IES file
5000 K 70 CRI 6927 lm 128 53.96 W Medium Flood
INT-4-48L-55-5K7-N
IES file
5000 K 70 CRI 7128 lm 132 53.96 W Narrow
INT-4-48L-55-5K7-NM
IES file
5000 K 70 CRI 7156 lm 133 53.96 W Narrow Medium
INT-4-48L-55-5K7-WF
IES file
5000 K 70 CRI 7284 lm 135 53.96 W Wide Flood
INT-4-48L-55-5K7-WF-DL
IES file
5000 K 70 CRI 6020 lm 112 53.96 W Wide Flood
INT-4-48L-55-5K7-WG
IES file
5000 K 70 CRI 7268 lm 135 53.96 W Wall Graze
INT-4-48L-55-5K7-WW
IES file
5000 K 70 CRI 6734 lm 125 53.96 W Wall Wash
INT-4-48L-80-3K7-HF
IES file
3000 K 70 CRI 8499 lm 108 78.6 W Horizontal Flood
INT-4-48L-80-3K7-MF
IES file
3000 K 70 CRI 8956 lm 114 78.6 W Medium Flood
INT-4-48L-80-3K7-N
IES file
3000 K 70 CRI 9217 lm 117 78.6 W Narrow
INT-4-48L-80-3K7-NM
IES file
3000 K 70 CRI 9253 lm 118 78.6 W Narrow Medium
INT-4-48L-80-3K7-WF
IES file
3000 K 70 CRI 9418 lm 120 78.6 W Wide Flood
INT-4-48L-80-3K7-WF-DL
IES file
3000 K 70 CRI 7783 lm 99 78.6 W Wide Flood
INT-4-48L-80-3K7-WG
IES file
3000 K 70 CRI 9398 lm 120 78.6 W Wall Graze
INT-4-48L-80-3K7-WW
IES file
3000 K 70 CRI 8707 lm 111 78.6 W Wall Wash
INT-4-48L-80-4K7-HF
IES file
4000 K 70 CRI 8935 lm 114 78.6 W Horizontal Flood
INT-4-48L-80-4K7-MF
IES file
4000 K 70 CRI 9416 lm 120 78.6 W Medium Flood
INT-4-48L-80-4K7-N
IES file
4000 K 70 CRI 9690 lm 123 78.6 W Narrow
INT-4-48L-80-4K7-NM
IES file
4000 K 70 CRI 9728 lm 124 78.6 W Narrow Medium
INT-4-48L-80-4K7-WF
IES file
4000 K 70 CRI 9901 lm 126 78.6 W Wide Flood
INT-4-48L-80-4K7-WF-DL
IES file
4000 K 70 CRI 8183 lm 104 78.6 W Wide Flood
INT-4-48L-80-4K7-WG
IES file
4000 K 70 CRI 9880 lm 126 78.6 W Wall Graze
INT-4-48L-80-4K7-WW
IES file
4000 K 70 CRI 9154 lm 116 78.6 W Wall Wash
INT-4-48L-80-5K7-HF
IES file
5000 K 70 CRI 9121 lm 116 78.6 W Horizontal Flood
INT-4-48L-80-5K7-MF
IES file
5000 K 70 CRI 9612 lm 122 78.6 W Medium Flood
INT-4-48L-80-5K7-N
IES file
5000 K 70 CRI 9892 lm 126 78.6 W Narrow
INT-4-48L-80-5K7-NM
IES file
5000 K 70 CRI 9931 lm 126 78.6 W Narrow Medium
INT-4-48L-80-5K7-WF
IES file
5000 K 70 CRI 10107 lm 129 78.6 W Wide Flood
INT-4-48L-80-5K7-WF-DL
IES file
5000 K 70 CRI 8353 lm 106 78.6 W Wide Flood
INT-4-48L-80-5K7-WG
IES file
5000 K 70 CRI 10086 lm 128 78.6 W Wall Graze
INT-4-48L-80-5K7-WW
IES file
5000 K 70 CRI 9344 lm 119 78.6 W Wall Wash
