Litecontrol's Vora was created with the future in mind by pushing the boundaries of the current landscape of recessed products.
Featuring the newest generation of LED edge-lit technology, two laser etched acrylic panels emit a perfectly uniform diffused surface while utilizing our patented center mixing chamber to disperse excess light. Extruded and cast aluminum components complete a quality construction that is unmatched. The result is one of the thinnest architectural troffers with a unique take on the traditional aesthetic.
SLEEK
2.2" fixture depth, reducing plenum space
EFFICIENT
Edge-lit light guides for perfectly uniform appearance of up to 8000 lumens and up to 120 lm/W in select configurations
CUSTOMIZABLE
Five size options, four visual options, three finish options
FIVE SIZES
1' x 1', 1' x 2', 2' x 2', 1' x 4', 2' x 4'

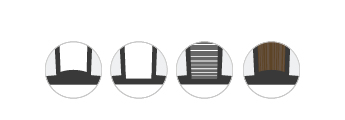

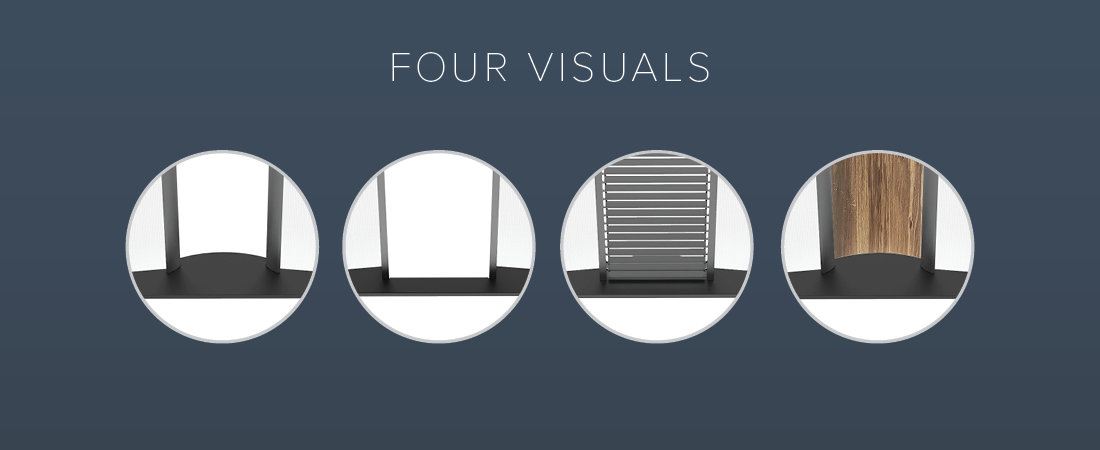

FOUR VISUALS
Open, Lens, Baffle, Decorative
THREE FINISHES
Carbon Black, Machined Aluminum, Matte White
OPEN
The Open visual allows for direct view to the center mixing chamber reflector. A fresh new look to the architectural market.
LENS
The Lens visual allows for a more traditional look by incorporating a third lens into the fixture.
BAFFLE
The Baffle aesthetic helps increase visual comfort by reducing glare though the use of a straight blade louver to restrict the view into the center reflector.
DECORATIVE
An upscale take on the open visual, the Decorative center allows for a special graphic insert into the center chamber.
CONSTRUCTION
LED boards located at the sides of the fixture direct the light through the acrylic light guides. The light collides with the laser etched optics in the lens to direct the light into the room. Excess light spills into the center mixing chamber and is recycled back out into the space. The result is uniform light throughout the entire appearance of the fixture.
MOUNTING OPTIONS
Vora's universal frame design allows for interface with mulitple ceiling types. A single bracket is added to allow adaption to 9/16th narrow grid.
The use of light guides allows for the full lumen output to be spread across the fixture rather than a single, visible source. This results in a reduction of glare and a visually comfortable, quiet appearance.
Utilizing edge-lit technology allows for a significant reduction in fixture space, resulting in a depth that virtually eliminates plenum fit concerns.
SpectraSync™ is an easy and intuitive white tuning solution offered in two modes to accommodate a variety of applications.
DIM TO WARM
Dim to Warm mimics the familiar warming effect that occurs with traditional incandescent sources as they are dimmed. (Available with 2200K-3000K)
TUNABLE WHITE
Tunable White offers users the ability to tailor CCT to their personal preference, enhancing task visibility, material and colors, or the aesthetics of the space. (Available with 2700K-5000K or 2700K-6500K)
Product Details
General
| Application |
|
| Type | Architectural Troffers |
Resources/Downloads
Specifications
Brochures
Installation/Instruction Manual (IOM)
BIM
3D Media
OPEN - OPN
LENS - SOF
BAFFLE - BWO
Please wait, preparing to download your file.
Photometry
| IES Files | Color Temperature | CRI | Delivered Lumens | Lm/W | Watts | Distribution Type |
|---|---|---|---|---|---|---|
|
50L-X-D-11-SOF-CX-35K-D10
IES file |
3500 °K | 80 CRI | 1000 lm | 80 | 13 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D11
IES file |
3500 °K | 80 CRI | 1100 lm | 80 | 14 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D12
IES file |
3500 °K | 80 CRI | 1200 lm | 80 | 15 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D13
IES file |
3500 °K | 80 CRI | 1300 lm | 80 | 16 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D14
IES file |
3500 °K | 80 CRI | 1400 lm | 79 | 18 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D15
IES file |
3500 °K | 80 CRI | 1500 lm | 79 | 19 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D16
IES file |
3500 °K | 80 CRI | 1600 lm | 78 | 20 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D17
IES file |
3500 °K | 80 CRI | 1700 lm | 78 | 22 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D18
IES file |
3500 °K | 80 CRI | 1800 lm | 78 | 23 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D19
IES file |
3500 °K | 80 CRI | 1900 lm | 77 | 25 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D20
IES file |
3500 °K | 80 CRI | 2000 lm | 77 | 26 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D21
IES file |
3500 °K | 80 CRI | 2100 lm | 77 | 27 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D22
IES file |
3500 °K | 80 CRI | 2200 lm | 76 | 29 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D23
IES file |
3500 °K | 80 CRI | 2300 lm | 76 | 30 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D24
IES file |
3500 °K | 80 CRI | 2400 lm | 75 | 32 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D25
IES file |
3500 °K | 80 CRI | 2500 lm | 74 | 34 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D26
IES file |
3500 °K | 80 CRI | 2600 lm | 74 | 35 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D27
IES file |
3500 °K | 80 CRI | 2700 lm | 73 | 37 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D28
IES file |
3500 °K | 80 CRI | 2800 lm | 73 | 38 W | Direct: Lambertian |
|
50L-X-D-11-SOF-CX-35K-D29
IES file |
3500 °K | 80 CRI | 2900 lm | 72 | 40 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D10
IES file |
3500 °K | 80 CRI | 1000 lm | 90 | 11 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D11
IES file |
3500 °K | 80 CRI | 1100 lm | 90 | 12 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D12
IES file |
3500 °K | 80 CRI | 1200 lm | 89 | 13 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D13
IES file |
3500 °K | 80 CRI | 1300 lm | 89 | 15 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D14
IES file |
3500 °K | 80 CRI | 1400 lm | 89 | 16 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D15
IES file |
3500 °K | 80 CRI | 1500 lm | 89 | 17 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D16
IES file |
3500 °K | 80 CRI | 1600 lm | 89 | 18 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D17
IES file |
3500 °K | 80 CRI | 1700 lm | 89 | 19 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D18
IES file |
3500 °K | 80 CRI | 1800 lm | 89 | 20 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D19
IES file |
3500 °K | 80 CRI | 1900 lm | 89 | 21 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D20
IES file |
3500 °K | 80 CRI | 2000 lm | 89 | 22 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D21
IES file |
3500 °K | 80 CRI | 2100 lm | 89 | 24 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D22
IES file |
3500 °K | 80 CRI | 2200 lm | 89 | 25 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D23
IES file |
3500 °K | 80 CRI | 2300 lm | 89 | 26 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D24
IES file |
3500 °K | 80 CRI | 2400 lm | 89 | 27 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D25
IES file |
3500 °K | 80 CRI | 2500 lm | 89 | 28 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D26
IES file |
3500 °K | 80 CRI | 2600 lm | 88 | 29 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D27
IES file |
3500 °K | 80 CRI | 2700 lm | 88 | 31 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D28
IES file |
3500 °K | 80 CRI | 2800 lm | 88 | 32 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D29
IES file |
3500 °K | 80 CRI | 2900 lm | 87 | 33 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D30
IES file |
3500 °K | 80 CRI | 3000 lm | 87 | 34 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D31
IES file |
3500 °K | 80 CRI | 3100 lm | 87 | 36 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D32
IES file |
3500 °K | 80 CRI | 3200 lm | 89 | 36 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D33
IES file |
3500 °K | 80 CRI | 3300 lm | 86 | 38 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D34
IES file |
3500 °K | 80 CRI | 3400 lm | 86 | 39 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D35
IES file |
3500 °K | 80 CRI | 3500 lm | 86 | 41 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D36
IES file |
3500 °K | 80 CRI | 3600 lm | 85 | 42 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D37
IES file |
3500 °K | 80 CRI | 3700 lm | 85 | 44 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D38
IES file |
3500 °K | 80 CRI | 3800 lm | 84 | 45 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D39
IES file |
3500 °K | 80 CRI | 3900 lm | 84 | 46 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D40
IES file |
3500 °K | 80 CRI | 4000 lm | 84 | 48 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D41
IES file |
3500 °K | 80 CRI | 4100 lm | 83 | 49 W | Direct: Lambertian |
|
50L-X-D-12-SOF-CX-35K-D42
IES file |
3500 °K | 80 CRI | 4200 lm | 83 | 51 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D16
IES file |
3500 °K | 80 CRI | 1600 lm | 106 | 15 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D17
IES file |
3500 °K | 80 CRI | 1700 lm | 106 | 16 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D18
IES file |
3500 °K | 80 CRI | 1800 lm | 106 | 17 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D19
IES file |
3500 °K | 80 CRI | 1900 lm | 106 | 18 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D20
IES file |
3500 °K | 80 CRI | 2000 lm | 106 | 19 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D21
IES file |
3500 °K | 80 CRI | 2100 lm | 106 | 20 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D22
IES file |
3500 °K | 80 CRI | 2200 lm | 106 | 21 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D23
IES file |
3500 °K | 80 CRI | 2300 lm | 106 | 22 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D24
IES file |
3500 °K | 80 CRI | 2400 lm | 106 | 23 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D25
IES file |
3500 °K | 80 CRI | 2500 lm | 106 | 24 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D26
IES file |
3500 °K | 80 CRI | 2600 lm | 106 | 25 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D27
IES file |
3500 °K | 80 CRI | 2700 lm | 106 | 25 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D28
IES file |
3500 °K | 80 CRI | 2800 lm | 106 | 26 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D29
IES file |
3500 °K | 80 CRI | 2900 lm | 106 | 27 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D30
IES file |
3500 °K | 80 CRI | 3000 lm | 106 | 28 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D31
IES file |
3500 °K | 80 CRI | 3100 lm | 106 | 29 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D32
IES file |
3500 °K | 80 CRI | 3200 lm | 105 | 30 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D33
IES file |
3500 °K | 80 CRI | 3300 lm | 105 | 31 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D34
IES file |
3500 °K | 80 CRI | 3400 lm | 105 | 32 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D35
IES file |
3500 °K | 80 CRI | 3500 lm | 105 | 33 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D36
IES file |
3500 °K | 80 CRI | 3600 lm | 105 | 34 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D37
IES file |
3500 °K | 80 CRI | 3700 lm | 105 | 35 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D38
IES file |
3500 °K | 80 CRI | 3800 lm | 105 | 36 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D39
IES file |
3500 °K | 80 CRI | 3900 lm | 104 | 37 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D40
IES file |
3500 °K | 80 CRI | 4000 lm | 104 | 38 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D41
IES file |
3500 °K | 80 CRI | 4100 lm | 104 | 39 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D42
IES file |
3500 °K | 80 CRI | 4200 lm | 104 | 41 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D43
IES file |
3500 °K | 80 CRI | 4300 lm | 103 | 42 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D44
IES file |
3500 °K | 80 CRI | 4400 lm | 103 | 43 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D45
IES file |
3500 °K | 80 CRI | 4500 lm | 103 | 44 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D46
IES file |
3500 °K | 80 CRI | 4600 lm | 103 | 45 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D47
IES file |
3500 °K | 80 CRI | 4700 lm | 102 | 46 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D48
IES file |
3500 °K | 80 CRI | 4800 lm | 102 | 47 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D49
IES file |
3500 °K | 80 CRI | 4900 lm | 102 | 48 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D50
IES file |
3500 °K | 80 CRI | 5000 lm | 102 | 49 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D51
IES file |
3500 °K | 80 CRI | 5100 lm | 101 | 50 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D52
IES file |
3500 °K | 80 CRI | 5200 lm | 101 | 51 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D53
IES file |
3500 °K | 80 CRI | 5300 lm | 101 | 52 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D54
IES file |
3500 °K | 80 CRI | 5400 lm | 101 | 53 W | Direct: Lambertian |
|
50L-X-D-14-SOF-CX-35K-D55
IES file |
3500 °K | 80 CRI | 5500 lm | 101 | 55 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D10
IES file |
3500 °K | 80 CRI | 1000 lm | 120 | 8 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D11
IES file |
3500 °K | 80 CRI | 1100 lm | 120 | 9 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D12
IES file |
3500 °K | 80 CRI | 1200 lm | 120 | 10 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D13
IES file |
3500 °K | 80 CRI | 1300 lm | 120 | 11 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D14
IES file |
3500 °K | 80 CRI | 1400 lm | 120 | 12 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D15
IES file |
3500 °K | 80 CRI | 1500 lm | 120 | 13 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D16
IES file |
3500 °K | 80 CRI | 1600 lm | 120 | 13 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D17
IES file |
3500 °K | 80 CRI | 1700 lm | 120 | 14 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D18
IES file |
3500 °K | 80 CRI | 1800 lm | 120 | 15 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D19
IES file |
3500 °K | 80 CRI | 1900 lm | 120 | 16 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D20
IES file |
3500 °K | 80 CRI | 2000 lm | 120 | 17 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D21
IES file |
3500 °K | 80 CRI | 2100 lm | 120 | 18 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D22
IES file |
3500 °K | 80 CRI | 2200 lm | 120 | 18 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D23
IES file |
3500 °K | 80 CRI | 2300 lm | 120 | 19 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D24
IES file |
3500 °K | 80 CRI | 2400 lm | 120 | 20 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D25
IES file |
3500 °K | 80 CRI | 2500 lm | 120 | 21 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D26
IES file |
3500 °K | 80 CRI | 2600 lm | 120 | 22 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D27
IES file |
3500 °K | 80 CRI | 2700 lm | 120 | 23 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D28
IES file |
3500 °K | 80 CRI | 2800 lm | 120 | 23 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D29
IES file |
3500 °K | 80 CRI | 2900 lm | 120 | 24 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D30
IES file |
3500 °K | 80 CRI | 3000 lm | 120 | 25 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D31
IES file |
3500 °K | 80 CRI | 3100 lm | 120 | 26 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D32
IES file |
3500 °K | 80 CRI | 3200 lm | 120 | 27 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D33
IES file |
3500 °K | 80 CRI | 3300 lm | 119 | 28 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D34
IES file |
3500 °K | 80 CRI | 3400 lm | 119 | 29 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D35
IES file |
3500 °K | 80 CRI | 3500 lm | 118 | 30 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D36
IES file |
3500 °K | 80 CRI | 3600 lm | 118 | 31 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D37
IES file |
3500 °K | 80 CRI | 3700 lm | 118 | 31 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D38
IES file |
3500 °K | 80 CRI | 3800 lm | 117 | 32 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D39
IES file |
3500 °K | 80 CRI | 3900 lm | 117 | 33 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D40
IES file |
3500 °K | 80 CRI | 4000 lm | 117 | 34 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D41
IES file |
3500 °K | 80 CRI | 4100 lm | 117 | 35 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D42
IES file |
3500 °K | 80 CRI | 4200 lm | 116 | 36 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D43
IES file |
3500 °K | 80 CRI | 4300 lm | 116 | 37 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D44
IES file |
3500 °K | 80 CRI | 4400 lm | 116 | 38 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D45
IES file |
3500 °K | 80 CRI | 4500 lm | 115 | 39 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D46
IES file |
3500 °K | 80 CRI | 4600 lm | 115 | 40 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D47
IES file |
3500 °K | 80 CRI | 4700 lm | 115 | 41 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D48
IES file |
3500 °K | 80 CRI | 4800 lm | 114 | 42 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D49
IES file |
3500 °K | 80 CRI | 4900 lm | 114 | 43 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D50
IES file |
3500 °K | 80 CRI | 5000 lm | 113 | 44 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D51
IES file |
3500 °K | 80 CRI | 5100 lm | 113 | 45 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D52
IES file |
3500 °K | 80 CRI | 5200 lm | 113 | 46 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D53
IES file |
3500 °K | 80 CRI | 5300 lm | 112 | 47 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D54
IES file |
3500 °K | 80 CRI | 5400 lm | 112 | 48 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D55
IES file |
3500 °K | 80 CRI | 5500 lm | 111 | 49 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D56
IES file |
3500 °K | 80 CRI | 5600 lm | 111 | 51 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D57
IES file |
3500 °K | 80 CRI | 5700 lm | 110 | 52 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D58
IES file |
3500 °K | 80 CRI | 5800 lm | 110 | 53 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D59
IES file |
3500 °K | 80 CRI | 5900 lm | 109 | 54 W | Direct: Lambertian |
|
50L-X-D-22-SOF-CX-35K-D60
IES file |
3500 °K | 80 CRI | 6000 lm | 109 | 55 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D17
IES file |
3500 °K | 80 CRI | 1700 lm | 102 | 17 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D18
IES file |
3500 °K | 80 CRI | 1800 lm | 102 | 18 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D19
IES file |
3500 °K | 80 CRI | 1900 lm | 102 | 19 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D20
IES file |
3500 °K | 80 CRI | 2000 lm | 102 | 20 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D21
IES file |
3500 °K | 80 CRI | 2100 lm | 102 | 21 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D22
IES file |
3500 °K | 80 CRI | 2200 lm | 102 | 22 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D23
IES file |
3500 °K | 80 CRI | 2300 lm | 102 | 23 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D24
IES file |
3500 °K | 80 CRI | 2400 lm | 102 | 23 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D25
IES file |
3500 °K | 80 CRI | 2500 lm | 102 | 24 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D26
IES file |
3500 °K | 80 CRI | 2600 lm | 102 | 25 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D27
IES file |
3500 °K | 80 CRI | 2700 lm | 102 | 26 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D28
IES file |
3500 °K | 80 CRI | 2800 lm | 102 | 27 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D29
IES file |
3500 °K | 80 CRI | 2900 lm | 102 | 28 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D30
IES file |
3500 °K | 80 CRI | 3000 lm | 102 | 29 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D31
IES file |
3500 °K | 80 CRI | 3100 lm | 102 | 30 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D32
IES file |
3500 °K | 80 CRI | 3200 lm | 102 | 31 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D33
IES file |
3500 °K | 80 CRI | 3300 lm | 102 | 32 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D34
IES file |
3500 °K | 80 CRI | 3400 lm | 102 | 33 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D35
IES file |
3500 °K | 80 CRI | 3500 lm | 102 | 34 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D36
IES file |
3500 °K | 80 CRI | 3600 lm | 102 | 35 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D37
IES file |
3500 °K | 80 CRI | 3700 lm | 102 | 36 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D38
IES file |
3500 °K | 80 CRI | 3800 lm | 102 | 37 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D39
IES file |
3500 °K | 80 CRI | 3900 lm | 102 | 38 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D40
IES file |
3500 °K | 80 CRI | 4000 lm | 102 | 39 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D41
IES file |
3500 °K | 80 CRI | 4100 lm | 102 | 40 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D42
IES file |
3500 °K | 80 CRI | 4200 lm | 102 | 41 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D43
IES file |
3500 °K | 80 CRI | 4300 lm | 102 | 42 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D44
IES file |
3500 °K | 80 CRI | 4400 lm | 102 | 43 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D45
IES file |
3500 °K | 80 CRI | 4500 lm | 102 | 44 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D46
IES file |
3500 °K | 80 CRI | 4600 lm | 102 | 45 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D47
IES file |
3500 °K | 80 CRI | 4700 lm | 102 | 46 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D48
IES file |
3500 °K | 80 CRI | 4800 lm | 102 | 47 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D49
IES file |
3500 °K | 80 CRI | 4900 lm | 102 | 48 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D50
IES file |
3500 °K | 80 CRI | 5000 lm | 102 | 49 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D51
IES file |
3500 °K | 80 CRI | 5100 lm | 102 | 50 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D52
IES file |
3500 °K | 80 CRI | 5200 lm | 102 | 51 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D53
IES file |
3500 °K | 80 CRI | 5300 lm | 102 | 52 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D54
IES file |
3500 °K | 80 CRI | 5400 lm | 102 | 53 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D55
IES file |
3500 °K | 80 CRI | 5500 lm | 102 | 54 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D56
IES file |
3500 °K | 80 CRI | 5600 lm | 102 | 55 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D57
IES file |
3500 °K | 80 CRI | 5700 lm | 102 | 56 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D58
IES file |
3500 °K | 80 CRI | 5800 lm | 102 | 57 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D59
IES file |
3500 °K | 80 CRI | 5900 lm | 102 | 58 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D60
IES file |
3500 °K | 80 CRI | 6000 lm | 102 | 59 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D61
IES file |
3500 °K | 80 CRI | 6100 lm | 102 | 60 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D62
IES file |
3500 °K | 80 CRI | 6200 lm | 102 | 61 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D63
IES file |
3500 °K | 80 CRI | 6300 lm | 102 | 62 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D64
IES file |
3500 °K | 80 CRI | 6400 lm | 102 | 63 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D65
IES file |
3500 °K | 80 CRI | 6500 lm | 102 | 64 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D66
IES file |
3500 °K | 80 CRI | 6600 lm | 102 | 65 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D67
IES file |
3500 °K | 80 CRI | 6700 lm | 102 | 66 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D68
IES file |
3500 °K | 80 CRI | 6800 lm | 102 | 67 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D69
IES file |
3500 °K | 80 CRI | 6900 lm | 101 | 68 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D70
IES file |
3500 °K | 80 CRI | 7000 lm | 101 | 69 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D71
IES file |
3500 °K | 80 CRI | 7100 lm | 101 | 70 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D72
IES file |
3500 °K | 80 CRI | 7200 lm | 101 | 71 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D73
IES file |
3500 °K | 80 CRI | 7300 lm | 101 | 72 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D74
IES file |
3500 °K | 80 CRI | 7400 lm | 101 | 73 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D75
IES file |
3500 °K | 80 CRI | 7500 lm | 101 | 74 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D76
IES file |
3500 °K | 80 CRI | 7600 lm | 101 | 75 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D77
IES file |
3500 °K | 80 CRI | 7700 lm | 101 | 76 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D78
IES file |
3500 °K | 80 CRI | 7800 lm | 101 | 77 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D79
IES file |
3500 °K | 80 CRI | 7900 lm | 101 | 78 W | Direct: Lambertian |
|
50L-X-D-24-SOF-CX-35K-D80
IES file |
3500 °K | 80 CRI | 8000 lm | 101 | 79 W | Direct: Lambertian |
Related Products
