WR13000 | Type WR Wirewound Resistor

By Powerohm

Catalog ID: WR13000

By Powerohm
Catalog ID:  WR13000

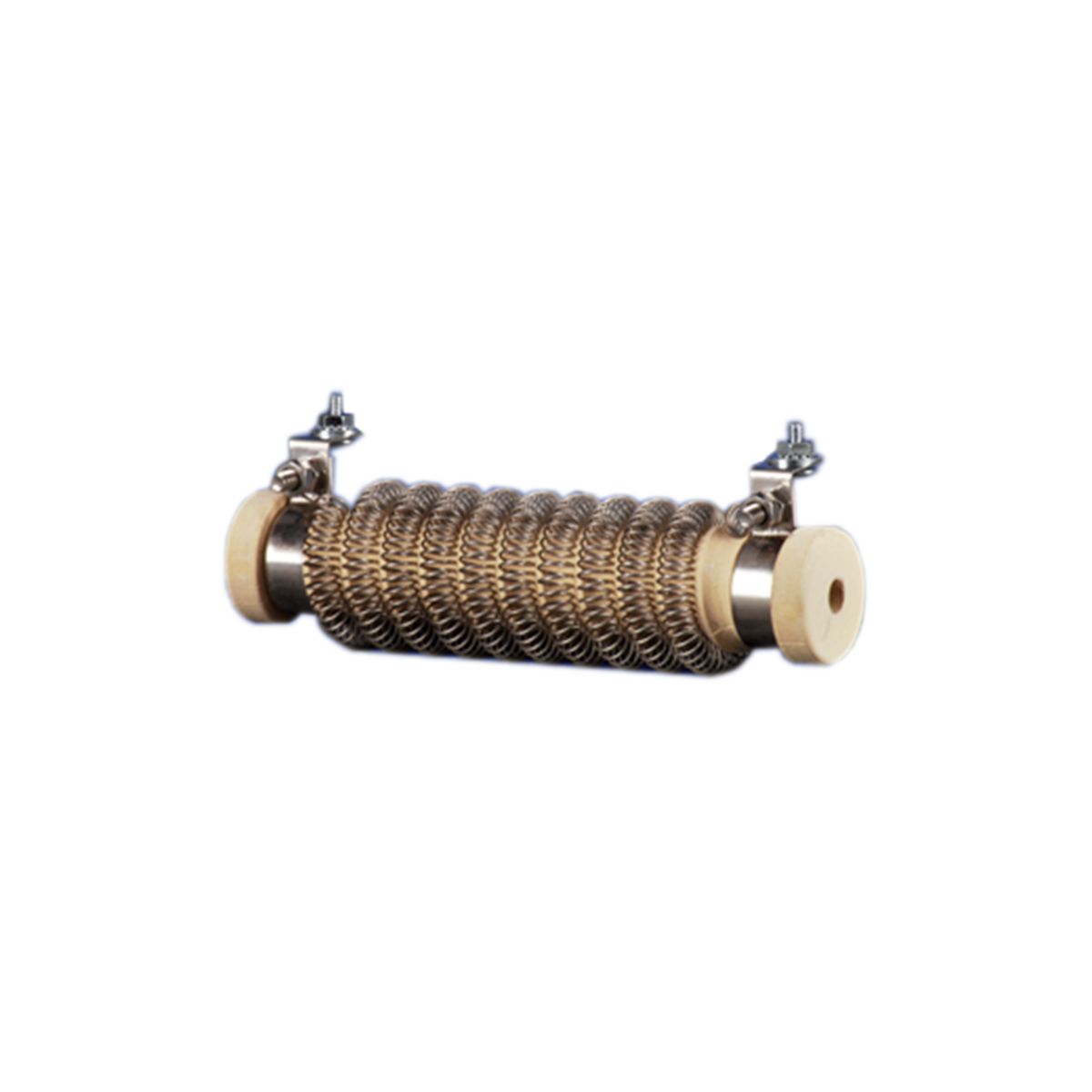

Type WR Wirewound Resistor 130 Ohms 1.37 A
  • Powerohm's Type WR Wirewound Resistors are designed for low current applications ranging from 1.0 to 32.0 amps continuous, and resistance values ranging between 250.0 and 0.25 ohms, respectively
  • Can be used for any type of AC or DC power application, including motor control, dynamic braking, neutral grounding and load testing
  • The corrosion resistant Type WR resistor will withstand considerable shock and vibration, qualifying it for use in most harsh environments
  • Continues Wattage:244

Voltage Rating: 600 VAC. Resistance Tolerance: +/- 10%

Contact Us

More Options

Get a Quote

Product Details

General

Resistance Ohms 130 Ohm

Dimensions

Depth 2.75 in
Length 7.25 in
Weight 0.8 lb
Width 2 in

Electrical Ratings

Current / Amperage Rating 1.37 A
Maximum Current Rating Amps Continuous 1.37
Wattage 244 W
