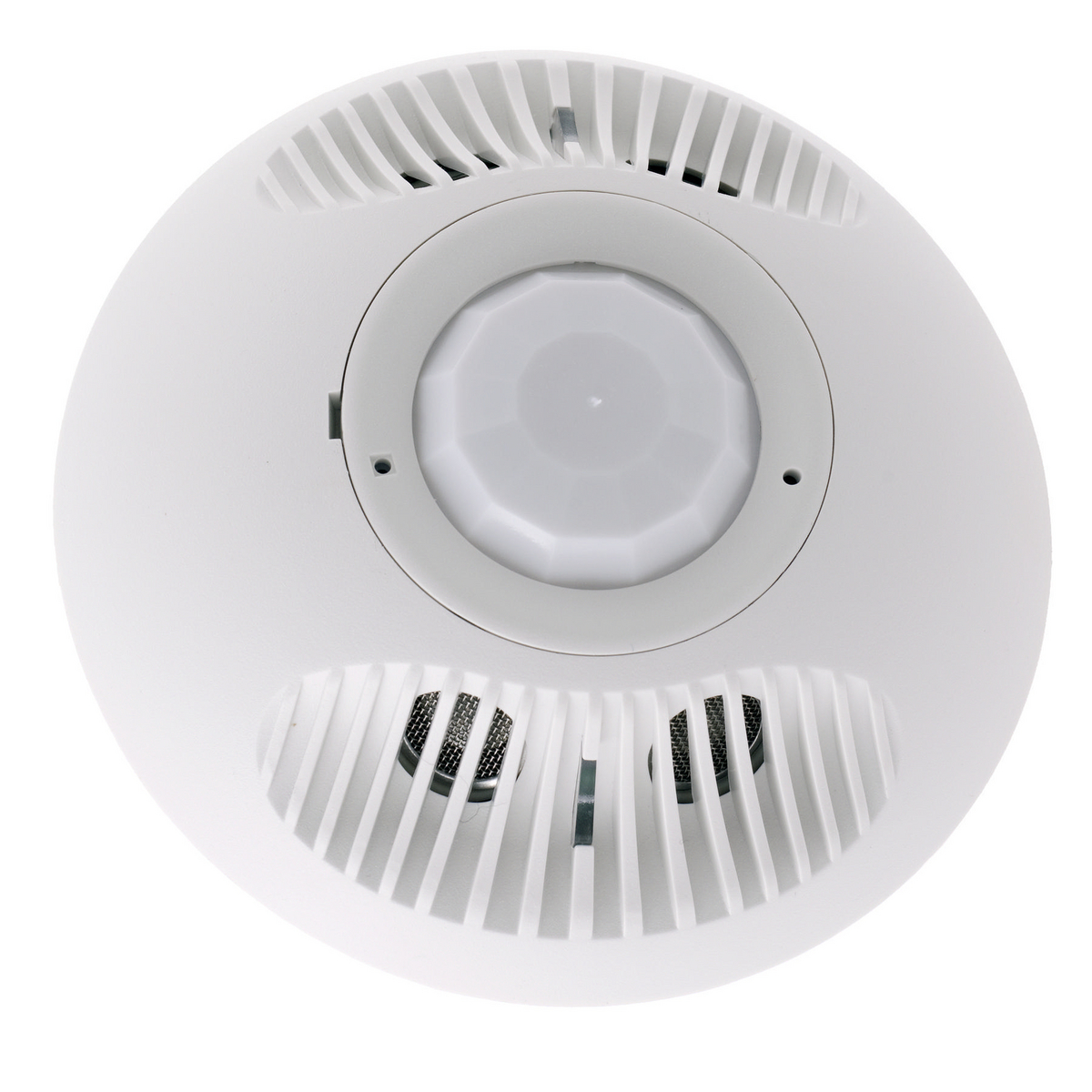

Switches and Lighting Controls, Occupancy Sensors, Adaptive TechnologyDual (Ultrasonic and PIR) Ceiling Sensors, 2000 Square Feet Coverage

By Hubbell Wiring Device-Kellems

Catalog ID: ATD2000C

Switches and Lighting Controls, Occupancy Sensors, Adaptive TechnologyDual (Ultrasonic and PIR) Ceiling Sensors, 2000 Square Feet Coverage

By Hubbell Wiring Device-Kellems

Catalog ID: ATD2000C

Switches and Lighting Controls, Occupancy Sensors, Adaptive TechnologyDual (Ultrasonic and PIR) Ceiling Sensors, 2000 Square Feet Coverage

Adaptive Dual Technology combines Ultrasonic and Passive Infrared technology, minimizing the risk of lights turning ON when the space is unoccupied. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights ON. Adaptive technology provides better control. Hubbell’s patented breakthrough in advanced control feature smart microprocessors constantly monitoring the controlled area and adjust the sensitivity and timer based on environmental history. The optimum choice when performance is paramount.

Coverage 2000 sq. ft. (360°), low voltage sensor
Minimize the risk of false triggering
lights turning ON when the space is un-occupied. Offer the best performance for most applications
Office White ABS enclosure blends with ceiling tile
Red LED indicates passive infrared detection and Green LED indicates ultrasonic detection
"Install and Forget" operation. Auto-adjusting adaptive technology eliminates manual adjustments

Standard Product

Add to List

More Options

Where to Buy

See locations

General

Application	Compatible with most LED and CFL
Color	Office White Blanc
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
Humidity	0% to 95% non-condensing relative humidity
Indicator(s) Type	PIR= Red LED, Ultrasonic= Green LED
Item Type	Low voltage Ceiling Sensors
Load Capacity	Load Is A Function Of The Control Unit
Material	ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
Material - Mounting Hardware	Screw Mounting
Mounting Type	Ceiling Mount
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Cycles	6,000 Cycles Minimum
Operating Temperature	32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F(11°C) per hour
Performance	Controls - Ambient Light - 1 to 1000 foot candles Controls - Sensitivity - Adaptive 0 to 100% Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity Sensing Indicators - Passive Infrared - Red LED Sensing Indicators - Ultrasonic - Green LED
Series	Dual Accessories
Storage Temperature Range	-20°F to 150°F (-29°C to 65°C)
Style	Ceiling Mount Sensing Devices
Type	Sensors Sensors
UPC	783585392431
