Watertight Devices, Accessories, Weather Protective Lift Cover, Black, For use with locking 30A receptacles

By Hubbell Wiring Device-Kellems

Catalog ID: HBL6800BK

WBP_HBL6800BK_PRODIMAGE

WBP_HBL6800BK_PRODIMAGE

Watertight Devices, Accessories, Weather Protective Lift Cover, Black, For use with locking 30A receptacles

By Hubbell Wiring Device-Kellems

Catalog ID: HBL6800BK

Watertight Devices, Accessories, Weather Protective Lift Cover, Black, For use with locking 30A receptacles

Impact resistant PBT cover plate
Stainless steel hinge spring and pin
Thermoplastic elastomer seal

Contact Us

More Options

Where to Buy

General

Color	Black
Item Type	Weather Protective Lift Cover
Performance	Environmental - Flammability - UL94 V-0 Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 3R, 3RX, 4X, 12 Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Type	Lift Covers
UPC	783585511337

Dimensions

Dimensions	4.56 in x 3.10 in x 1.20 in
Height	1.20 in
Length	4.56 in
Width	3.10 in

Certifications and Compliance

Industry Standard(s)

Meets NEMA WD-1, WD-6 And ANSI Standards

Logistics

Carton Quantity

5

Specifications

Wiring HBL6800BK Specification Sheet

Catalogs

Wiring Full Catalog

Catalog Page

Wiring C-8 Catalog page

Literature

Pulp & Paper Solutions

WIRING_WLFVM034

Warranty

Industrial & Commercial Products

Videos

Watertight Products

Related Products

WBP_HBL69W49_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 277V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-30R, Yellow

WBP_HBL69W74_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 125/250V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L14-30R, Yellow

WBP_HBL69W48_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 250V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-30R, Yellow

WBP_HBL69W48BK_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 250V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-30R, Black

WBP_HBL69W47_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30R, Yellow

WBP_HBL67W09_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 3 Phase WYE 120/208VAC, 4 Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA, Yellow

WBP_HBL69W08_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 125/250V AC, 3 Pole, 3 Wire, Thermoplastic elastomer, NON-NEMA, Yellow

WBP_HBL69W77_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 600V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L17-30R, Yellow

WBP_HBL69W81_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-30R

WBP_HBL69W75_PRODIMAGE

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 250V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L15-30R, Yellow

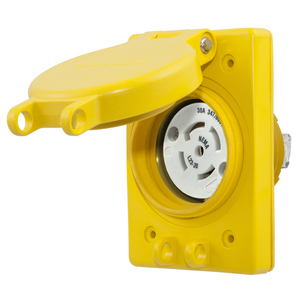

WBP_HBL69W83_PRODIMAGE
