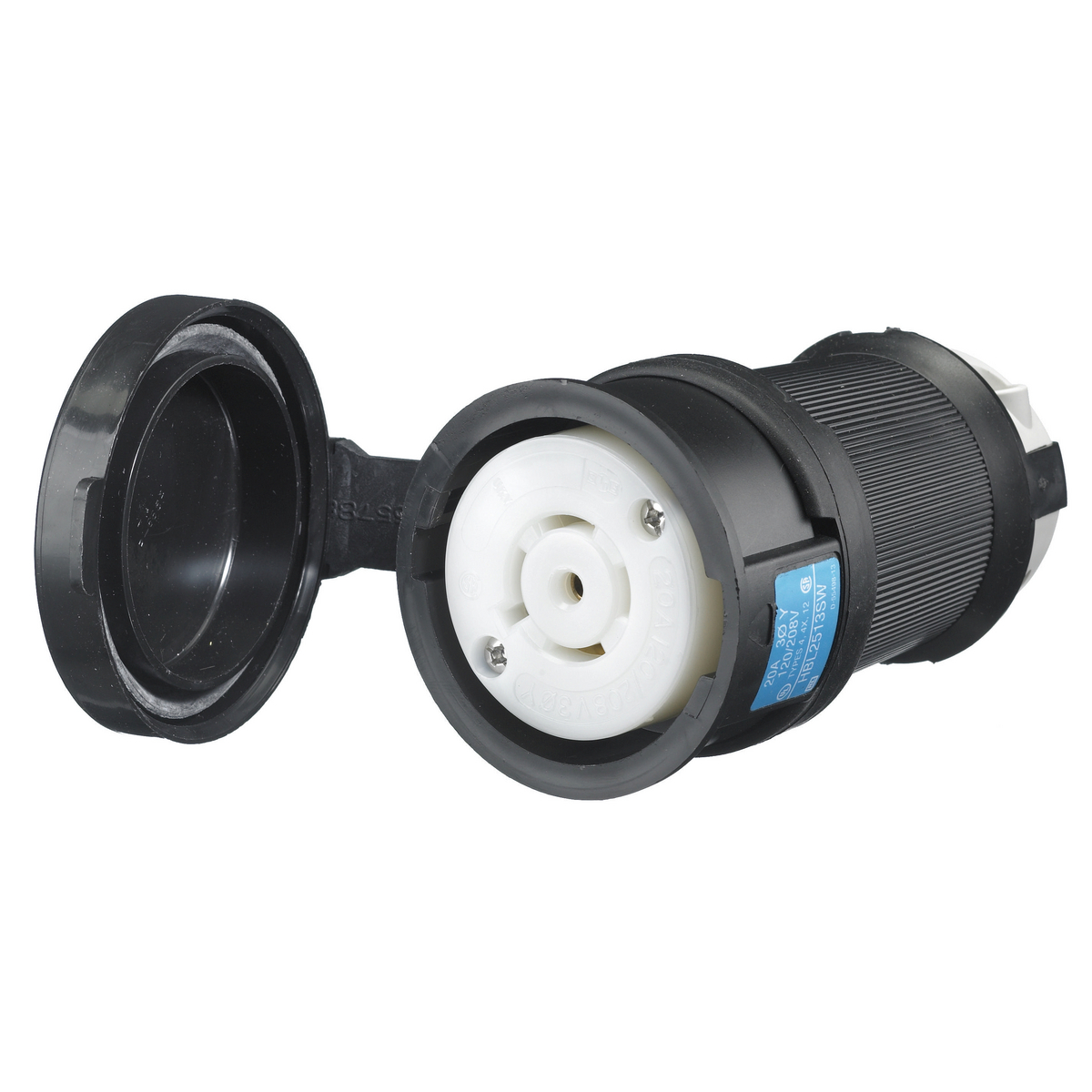

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Black PBT housing, White PBT clamps.

UL Type 4X Environmental seal protects connection while in use.
One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
Closure cap is included for environmental seal when device is not in use
Superior cord grip design protects terminations from excess strain.

Shrouded Watertight Construction

Add to List

More Options

Where to Buy

See locations

General

Application	Heavy Duty Industrial
Color	Black, White
Cord Range	0.350"-1.150" (9-29)
Environmental Conditions	Watertight
Insulation	Insulated Body
Item Type	20A Watertight Safety-Shroud® Connector
Material	Composite
Material - Mounting Hardware	Cord Mounted
Number Of Poles	4-Pole
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17 Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type	Connector Body
UPC	783585231549

Dimensions

Dimensions	2.75 in x 2.94 in x 4.40 in
Display Size	Standard
Height	4.40 in
Length	2.75 in
Weight	0.65 lb
Width	2.94 in

Electrical Ratings

Amperage Rating	20 A
Connectivity	Pressure Terminal Screws
Current / Amperage Rating	20 A
Current Rating	20 A
Dielectric Strength	Withstands 2,000V minimum
Phase	3 Phase WYE
Voltage Rating	3 Phase WYE 120/208 VAC
Voltage Rating Description	3 Phase WYE 120/208 VAC
