INDUSTRIAL CONTROL TRANSFORMERS





SPECIAL ANNOUNCEMENT


Acme Electric is introducing a new line of Industrial Control Transformers that will offer even greater benefits than our current line of transformers and are assembled in the USA of imported and domestic components. Our ICT series offers two types of construction; encapsulated or fully enclosed for harsh environment use. Molded terminations provide improved stability and conductivity while integral terminals offer robust support and flexibility. The new Acme Electric Industrial Control Transformer series will begin rolling out April 2018.



Industrial Control Transformers provide a low and safe control voltage for the operation of electromagnetic devices, such as motor starters, contactors, solenoids, and timers...or other loads requiring above average voltage regulation when actuated.


2018 TB/CE SERIES

The new 2018 TB/CE Series will be replacing our current TA/TB series, AE/CE series, and our Finger Safe Guard series. This new lie of ICT’s will offer even better performance than our current ICT series.

Features and benefits include:

· Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants

· Secondary Fuse Clips Factory installed where applicable

· Twenty year limited warranty

· Assembled in the USA of imported and domestic components



TA/TB SERIES

Features:

· 600 volt class and below

· 50–1000 VA, 50/60 Hz

· 80°C temperature rise, 130°C insulation class

· Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency

· Designs incorporate precision split bobbin wound coils for improved regulation. Primary fuse blocks and secondary fuse kits available and easily adaptable. Series-parallel connecting links save wiring and labor costs

· Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors

· Integrally molded terminal blocks with isolation barriers to prevent arc over. Footprint matches TA Series for easy interchangeability

· Copper windings on all groups

· Heavy gauge steel mounting plate adapts to various mounting dimensions. Voltage regulation exceeds NEMA requirements

· UL Listed and CSA Certified

· Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards

· Ten-year limited warranty

Applications:

· Motor Starters

· Contactors

· Solenoids

· Timer Circuits

· Relays

· Control Panels

· Robotics

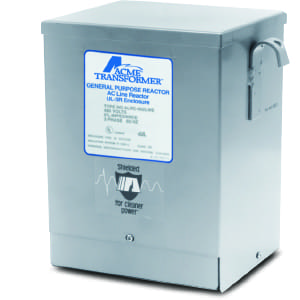

HARSH ENVIRONMENT

Features:

· Fully encapsulated and enclosed n 55°C temperature rise, 155°C insulation Copper windings n 1000, 2000, 3000, 5000 and 10000 VA sizes

· Voltage regulation exceeds NEMA requirements n UL and UL-3R listed

· CSA certified

· 10-year limited warranty

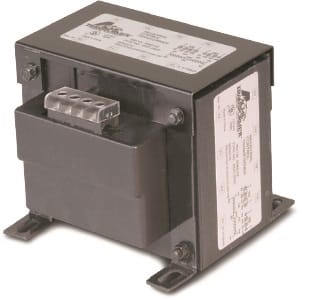

AC/CE SERIES

Features:

· Epoxy encapsulated design protects core & coil assembly from potentially damaging contaminants

· Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination

· Heavy gauge steel mounting feet

· Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary

· Dual labeling for easy product identification when equipped with a fuse block 50-750 VA, 50/60 Hz

· UL and cUL Listed, CE Marked (CE Series only)

· Ten-year limited warranty

· 55°C Temperature Rise

· 105°C Insulation Class



FINGER/GUARD LINE

Features:

· Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency

· Designs incorporate precision wound coils for improved regulation

· Copper windings on all groups

· 50 VA through 3000 VA sizes, 50/60 Hz

· 130°C (Class B) Insulation 80°C temperature rise

· Voltage regulation exceeds NEMA requirements

· UL Listed, CSA Certified and CE Marked

· Attractive finish, nameplate, and design features enhance the end product. Ten-year limited warranty

· Smaller, lighter weight design
