00:06Welcome to Acme Electrics product information video series.

00:10We are excited to bring you a series of videos that will cover everything from basic product

00:15information to training and tutorials.

00:20In today's series, we will be demonstrating single phase buck boost wiring configurations.

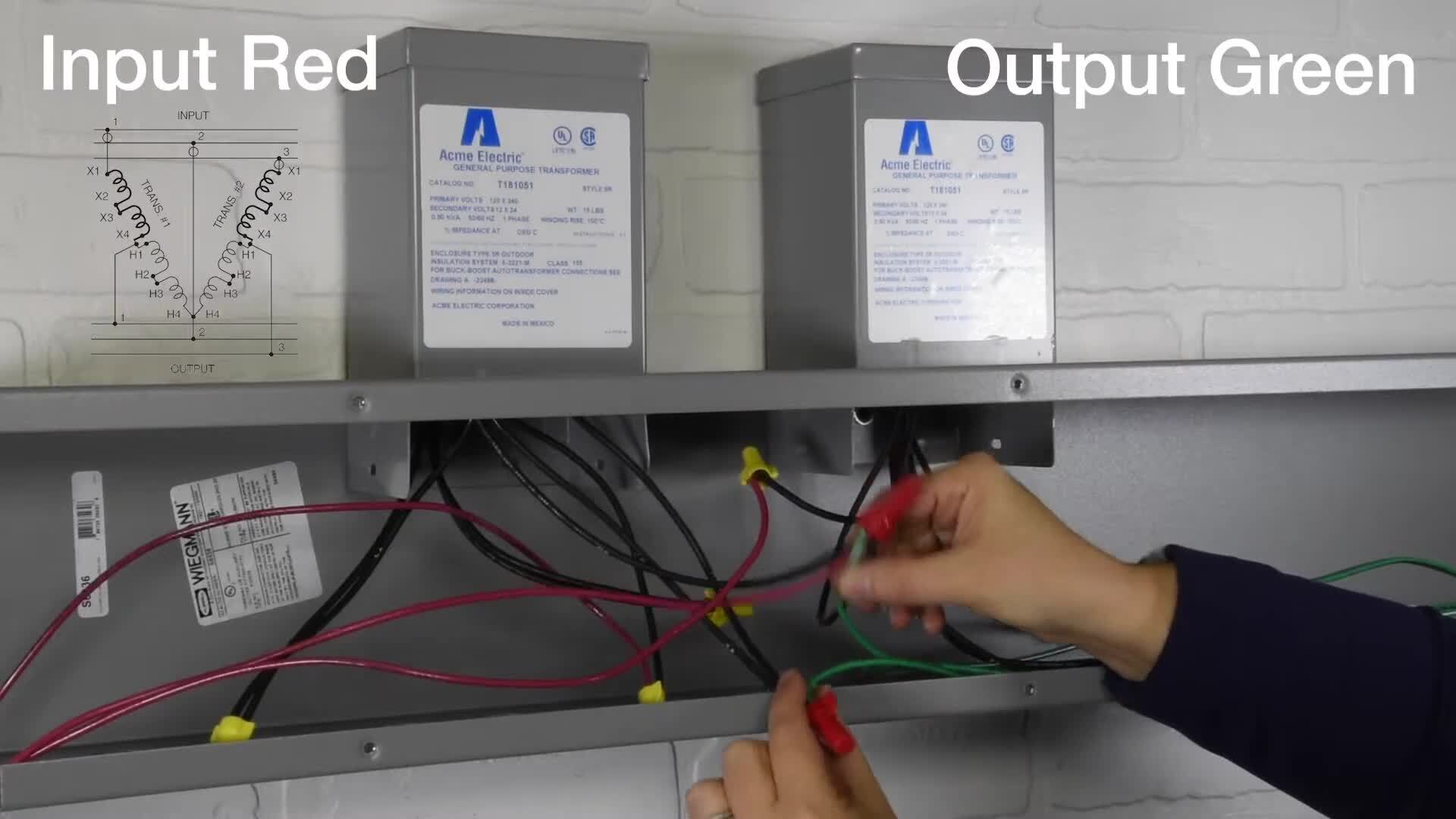

00:41This demonstration will follow figure ee in our Acne Electric catalog.

00:46First connection input one to transformer one wire, X one second connection

00:53transformer one wires, X two to X three third connection transformer

01:00one wires H two to H three fourth connection transformer one wire X

01:07four to H one to output 1/5 connection input two to transformer one wire H

01:13four to transformer two wire H four to output 2/6 connection input three to

01:20transformer two wire, X one seventh connection transformer two wires,

01:27X two to X three eight connection transformer two wires,

01:34H two to H three final connection transformer two wires X four to H one to

01:41output three. You can learn more about our buck boost

01:47transformer line by visiting our website at www.hubble.com/acne electric slash

01:54en where you will also find our useful buck boost selector tool.

01:58Be sure to visit our resources page and check out our literature section where you can find

02:02our buck boost transformer brochure.
