00:06Welcome to Acme Electrics product information video series.
00:10We are excited to bring you a series of videos that will cover everything from basic product
00:15information to training and tutorials.

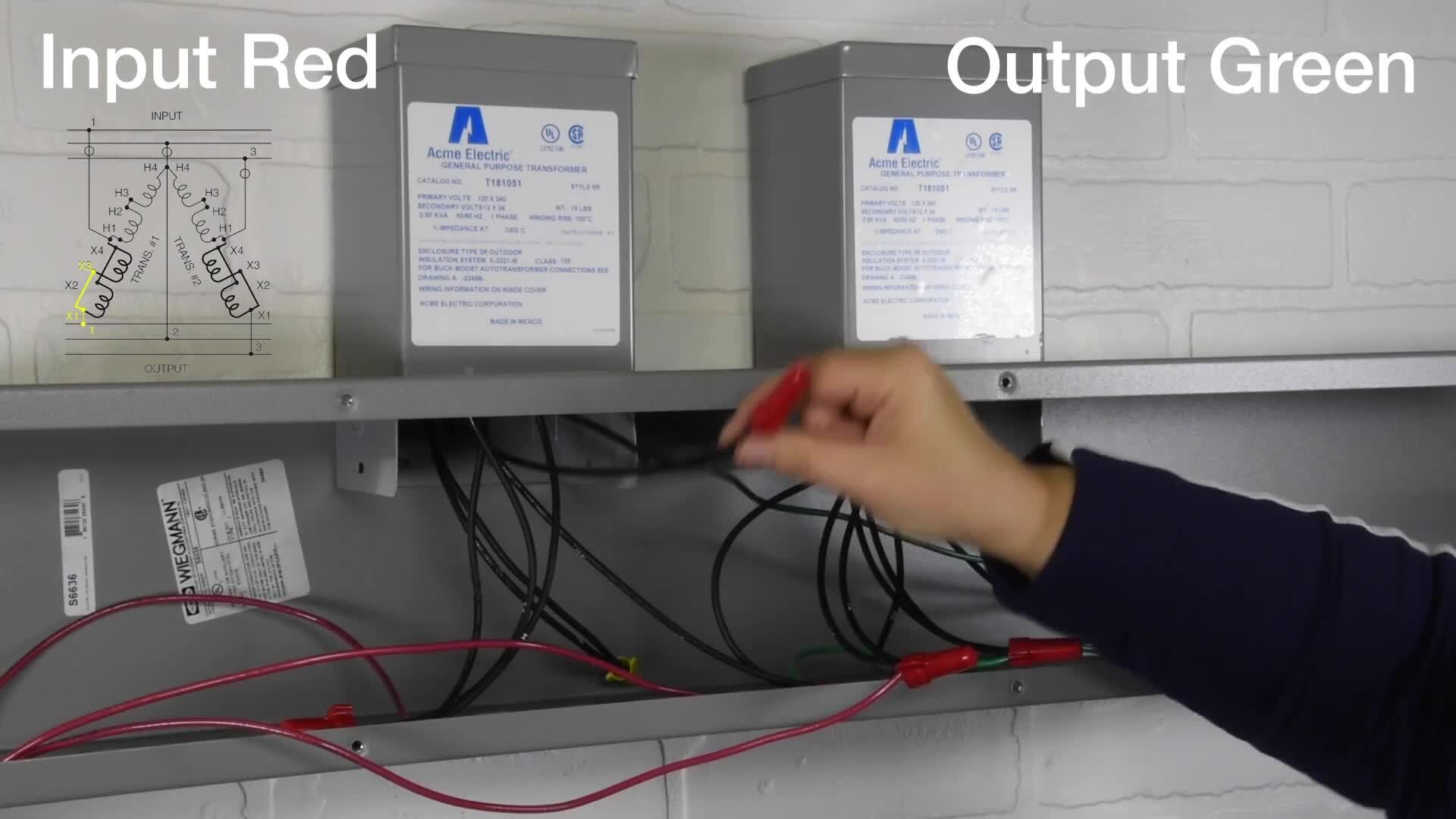

00:20In today's series, we will be demonstrating single phase buck boost wiring configurations.
00:40This demonstration will follow figure GG in our Acne Electric catalog.
00:46First connection input one to transformer one wires, H one and X four to X two
00:54second connection transformer one wires H three to H two third connection
01:01transformer one wires, X three to X one to output one fourth
01:07connection, input two to transformer one wire H four to transformer two wire H four to output
01:14two fifth connection, input three to transformer two wire,
01:20H one to X four to X 2/6 connection transformer two wires,
01:27H three to H two final connection transformer two wires,
01:32X three to X one to output one.
01:39You can learn more about our buck boost transformer line by visiting our website at
01:42www.hubble.com/acne electric slash en where you will also find our useful
01:49buck boost selector tool. Be sure to visit our resources page and check
01:53out our literature section where you can find our buck boost transformer brochure.
