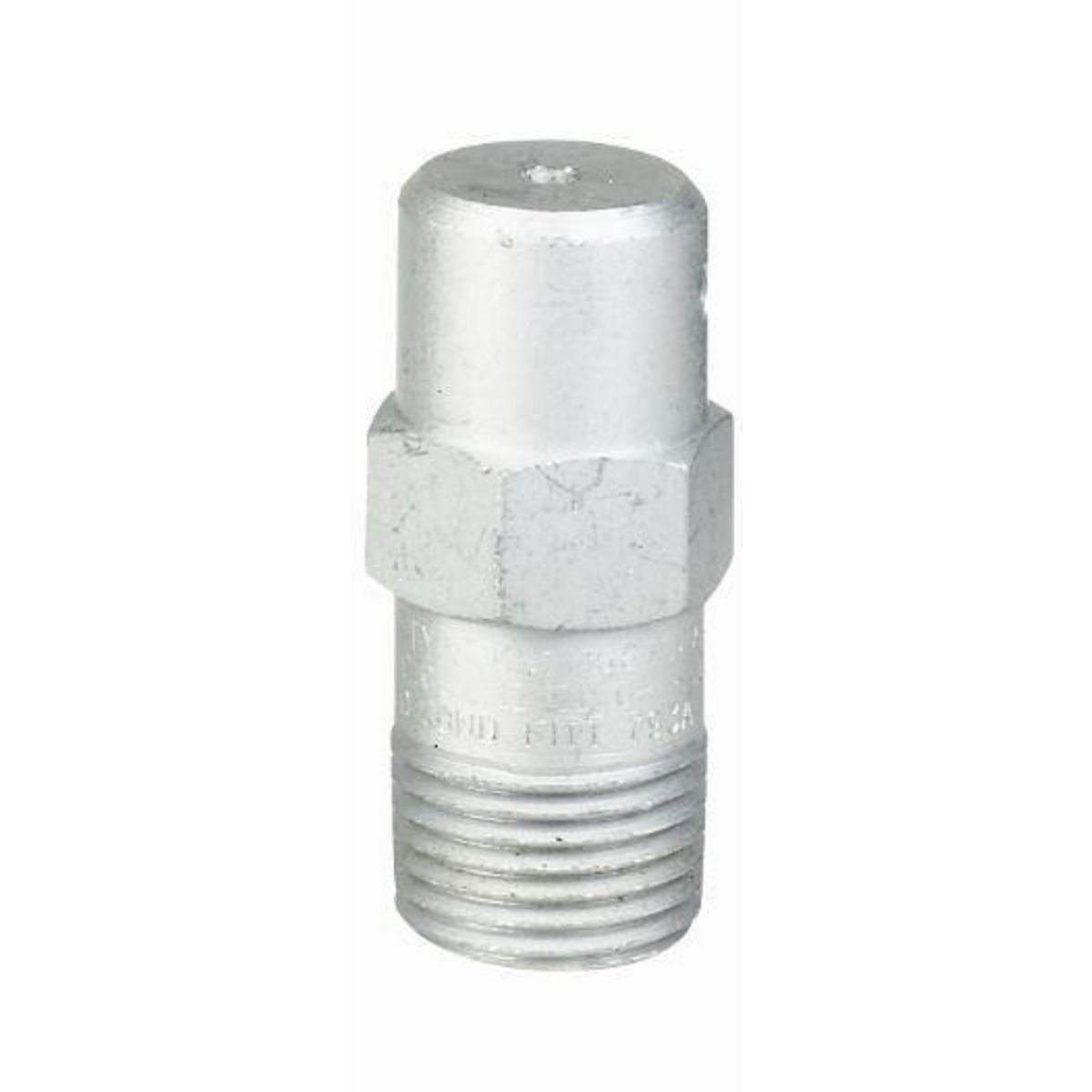

KB Series - Aluminum ATEX And IECEx Certified Drain - Thread Size 1/2Inch NPT
Catalog ID: KB1DCEN
The KB & KDB drain and breather are installed either the bottom or the top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top or the side wall of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Div. 1, Class I Zone 1 & 2 Class II, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
|Application||When installed in the bottom of an enclosure, these fittings permit water from condensation to drain from the enclosure continuously.|
|EU RoHS Indicator||Contact Manufacturer|
|Material||Aluminum, Copper Free (less than 4/10 of 1%)|
|Dimensions||2 in x 1 in x 1 in|
|Gross Weight with Packaging||0.25|
Certifications and Compliance
|ATEX File Number||10ATEX1351U|
|CSA File Number||LR11716|
|IECEx File Number||10.0007U|
|UL File Number||E10514|
Resources and Downloads
Installation/Instruction Manual (IOM)
