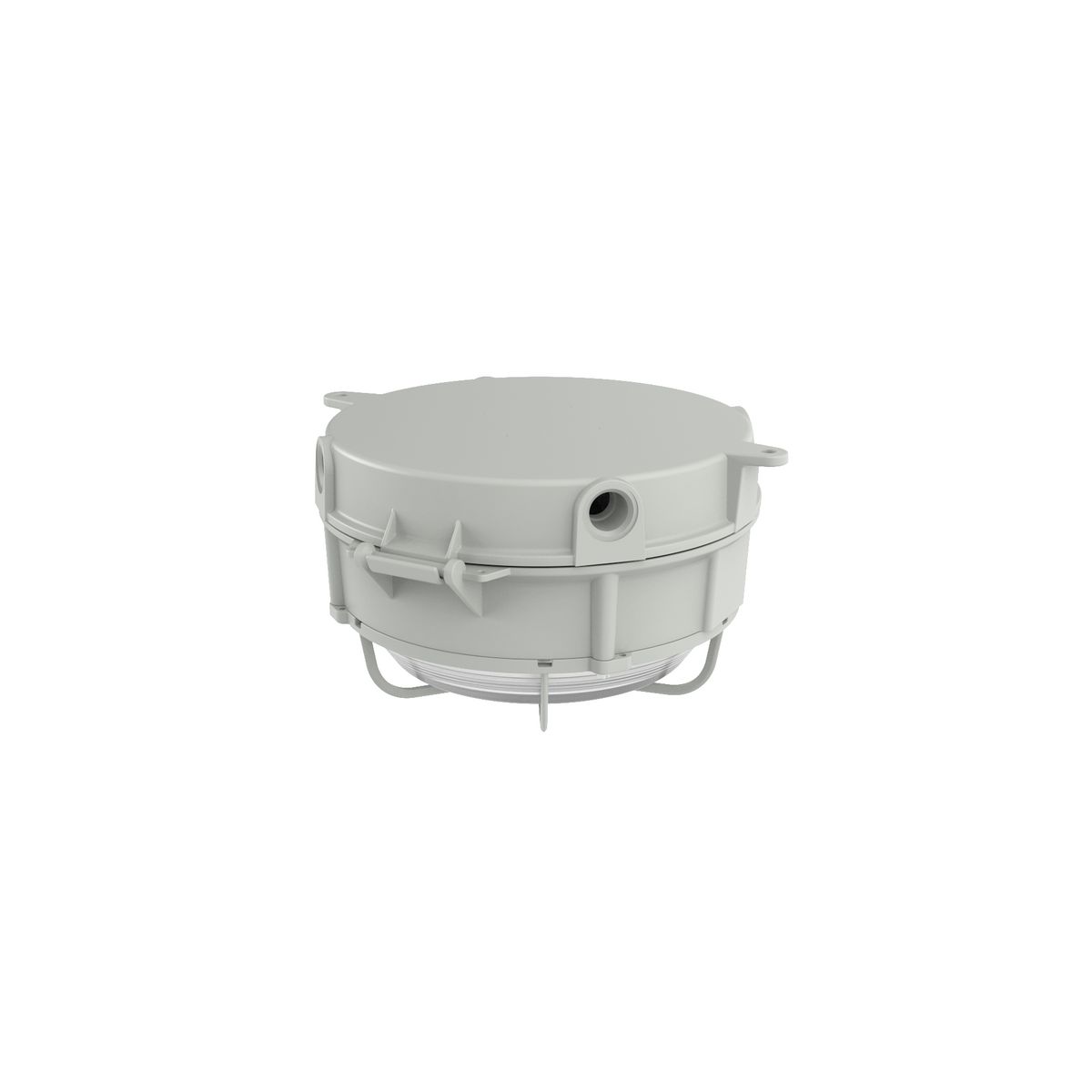

VML-X Series LED Area light 55 Watt, 120-277VAC, 7000 Lumen 1" Ceiling Mount

By Killark

Catalog ID: VML1X730X3G

By Killark
Catalog ID:  VML1X730X3G

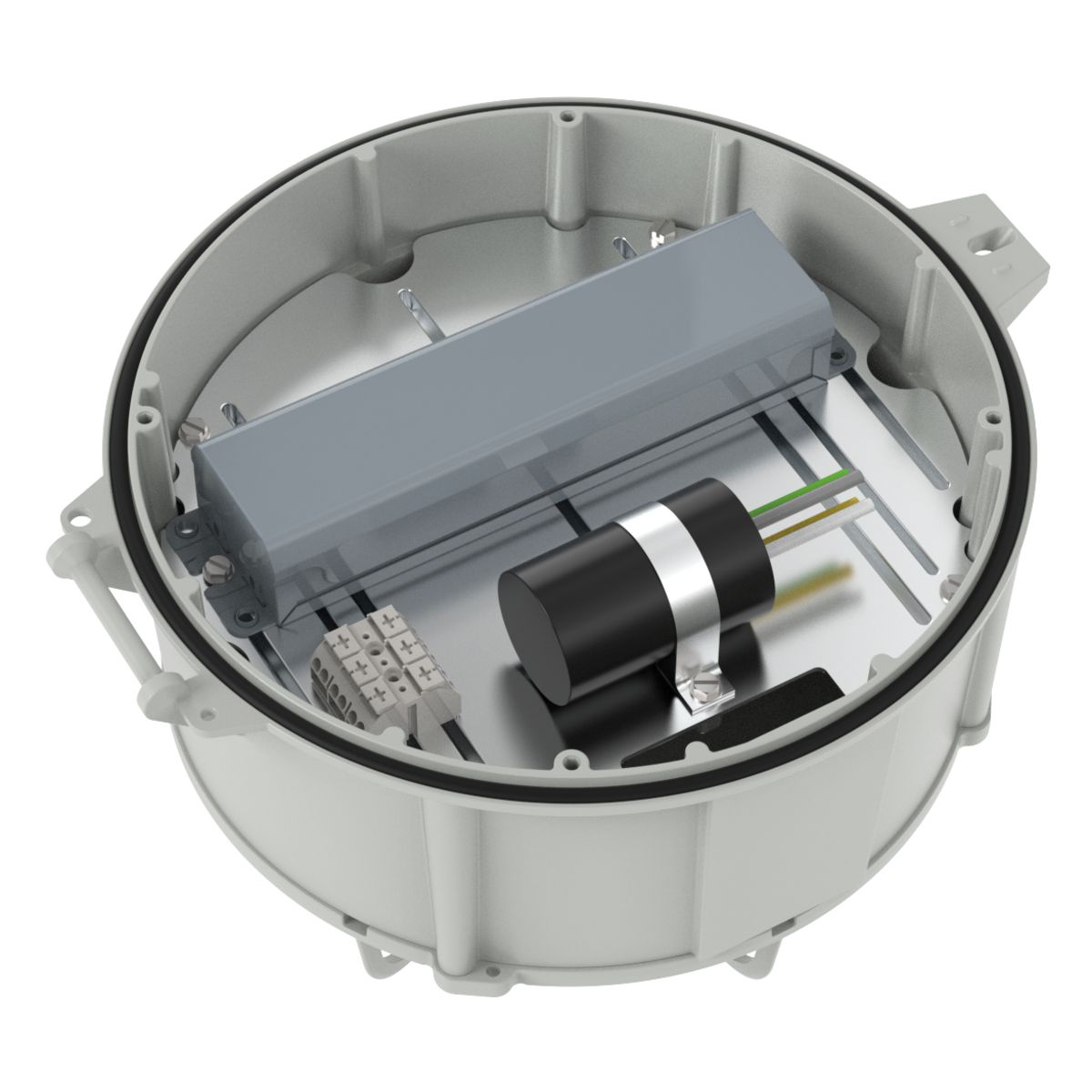

The VML-X Series is an Area Light fixture using energy efficient LED's. The redesigned CertiLite VML-X uses optics on the LED's to direct the light to where it is needed. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. The design of this fixture internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins. Easily Retro fit any old HID or LED fixture to the new VML-X for a cleaner more efficient light.
  • Energy Efficient and Long Life LED's
  • Walkway Optic patterns
  • Easy Retrofit to Competitors
  • Finless Design
  • Lighter Weight
  • LED Color of 5000K with 80 CRI
  • Wildlife Friendly Color options
Contact Us

More Options

Where to Buy
Related Links

Product Details

General

Application
  • Class I Division 2 Hazardous Locations
  • Class II Hazardous Dust
  • Zone 2 Hazardous Locations
  • Off and On Shore Oil and Gas
  • Wet and Marine Locations
  • Food and Beverage
  • Heavy Industrial
Color Temperature 5000 K
Finish Type Powder Epoxy Paint
Light Source LED
Lumen Range 5,000 - 9,000 lm
Lumens 7000
Mounting Type Ceiling
Optic Type Glass Globe
Series VML-X

Dimensions

Hub Size 1"

Electrical Ratings

Current / Amperage Rating 0.46-0.20 A
Frequency Rating 50-60 Hz
Voltage Rating 120-277 VAC
Wattage 55 W

Certifications and Compliance

Hazardous Rating(s)
  • Class I, Div2, Groups A,B,C,D
  • Class I, Zone 2, Groups IIC, IIB, IIA
  • Class II, Div. 1&2, Groups E,F,G
  • IECEx QPS 15.0006
  • Ex ec IIC T4/T3 Gc
  • Ex tb IIIC T4/T3 Db
  • QPS 22ATEX7000

Resources and Downloads

Specifications

VML1X730X3G Specification Sheet

Catalog Page

VML-X Series Catalog Pages

Brochures

Download All
VML-X Series Hazardous Location Luminaires Brochure
VML-X Series for Harsh and Hazardous Environments

Installation/Instruction Manual (IOM)

VMLX Series IOM K1531

Certifications

Download All
VMLX Series QPS North American Certification
VMLX/VM4L Series ATEX Certificate
VMLX/VM4L Series EU Type ATEX Certificate

Videos

VML-X Features and Benefits

Photometry (4)

Download All
Product Name Color Temp CRI Lumens Lm/W Watts Dist. Type Resources
KIL_VML1X730N-AMBER
KIL_VML1X730N-GREEN
KIL_VML1X730NAR
 127
KIL_VML1X730NDR
 127
