00:03Hi, I'm Mike Senner, product manager here at Killer Electric.

00:06And today we're gonna be introducing a full line expansion selection phase.

00:11When shifting matters, we have your connection solutions.

00:15Kark is a leading manufacturer and provider of electrical conduit fittings to the industrial

00:20market with locations around the globe.

00:23They are now pleased to announce the introduction of a full line of expansion and

00:27deflection fittings.

00:29The A F and DF series.

00:32This new series maintains the quality and reliability for which Kark is recognized for

00:37over a century and deflection fittings are engineered to accommodate axial angular and

00:44linear movement and conduit runs driven by temperature fluctuation and structural movement.

00:50The DF series deflection fitting is made from a synthetic silicone rubber that prevents drying

00:55and rotting out by maintaining moisture to ensure durability and is environmentally

01:00corrosive and UV resistant.

01:03The rubber sleeve is securely fastened with two stainless steel lap bands for ultimate

01:07corrosion resistance.

01:09It includes an integral tin copper braid for electrical continuity and two casted Z A 12

01:16zinc alloy and couplings.

01:18This series provides a 30 degree angular flex as well as a 34 contraction and extension and

01:25can withstand occasional vibrations driven by vehicular traffic.

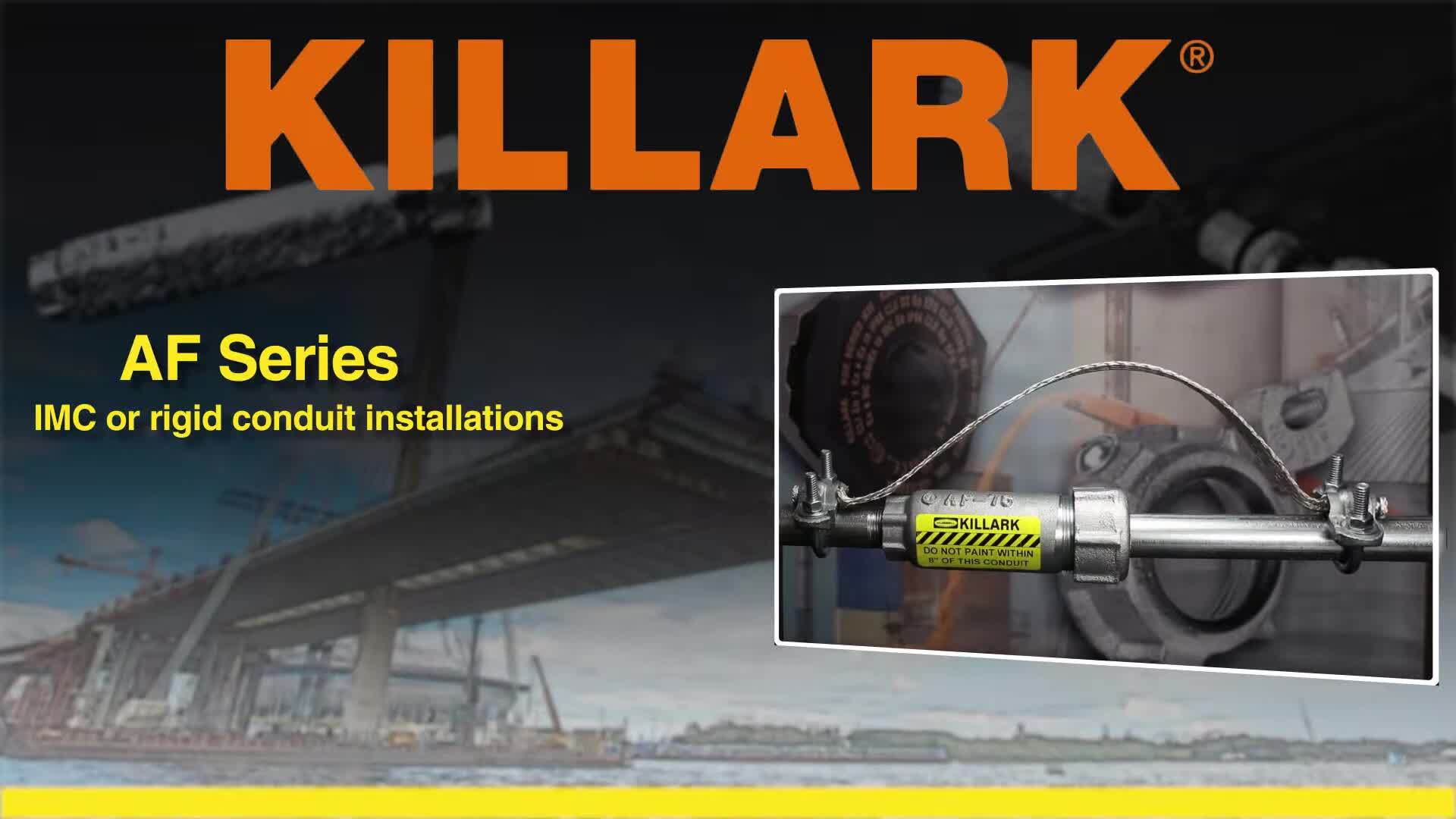

01:29The A F series expansion fittings are for use with I MC or rigid conduit installations.

01:35The A F series prevents damage of the electrical installations typically used in

01:40buildings and bridges by compensating linear movement due to thermal fluctuations or

01:44structural movement.

01:46The series provides maximum four inches and eight inch conduit movement.

01:51The A F series requires external tint plated bonding jumpers for electrical continuity and

01:57can be easily designated in the catalog cut sheet for ordering purposes.

02:01The bonding jumpers allow for visible inspections and reassures continuity.

02:06Some major applications for the A F and DF series would be bridges,

02:11tunnels, marinas and piers, parking garages, wastewater

02:18facilities, mass transits and railways, solar power fields,

02:25airport infrastructures, cold storage facilities and any other application that

02:32involves thermal fluctuations and structural movement.

02:36The DF and A F series are available in four finishes including standard Z A 12 zinc alloy,

02:43electro galvanized iron, aluminum and poly fen coated.

02:47This product is UL listed to standard 514 B and is Nema FB one.

02:53It is rain water and concrete tight.

02:56The Kark A FDF series expansion and deflection fittings are designed casted machined and

03:01assembled in the USA.

03:04Thanks for watching. Hope you're excited about this product as we

03:06are for order information, please contact your local sales rep or distributor for more

03:11information about this product. Check out our website below
