  7. Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White

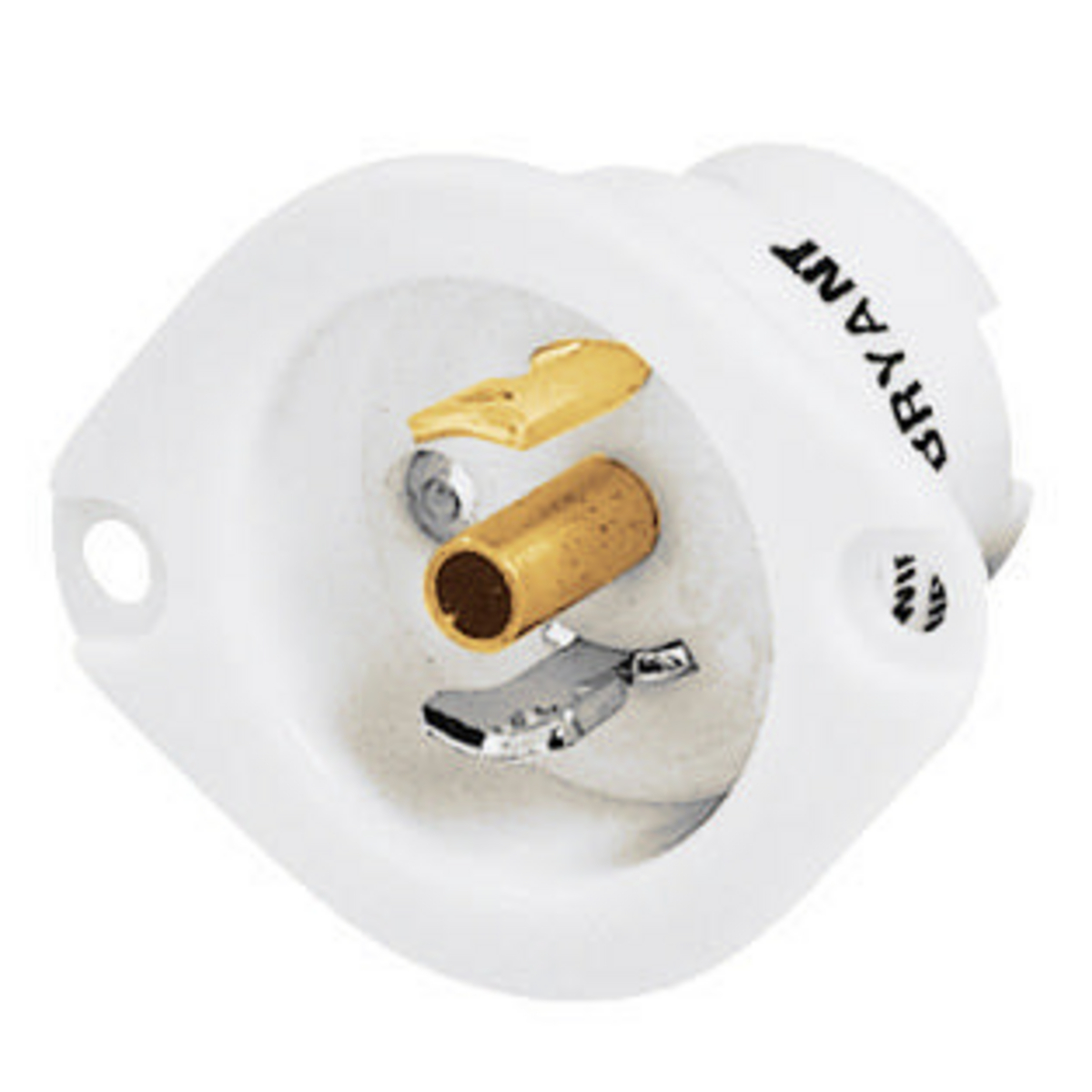

Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White

By Bryant

Catalog ID: 7595MB

By Bryant
Catalog ID:  7595MB
Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White

Standard Product

Contact Us
Add to List

More Options

Where to Buy

Product Details

General

Application Extra Heavy Duty Industrial
Color White
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Insulation Insulated Body
Item Type 15A Midget Flanged Inlet
Material Composite
Material - Mounting Hardware Screw Mounting
Number Of Poles 2-Pole
OEM Brand Name Hubbell Bryant
Style Grounding
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Type Flanged Inlet
UPC 781786671409

Dimensions

Dimensions 2.06 in x 1.62 in x 1.17 in
Display Size Midget Locking
Height 1.17 in
Length 2.06 in
Width 1.62 in

Electrical Ratings

Amperage Rating 15 A
Connectivity Screw Terminals
Current Rating 15 A
Dielectric Strength Withstands 3000V Minimum in
Voltage Rating 125 V
Voltage Rating Description 125V

Conductor Related

Number Of Wires 3-Wire
Wire Size #18 AWG to #12 AWG

Certifications and Compliance

Nema Rating ML-2P

Logistics

Carton Quantity 10
