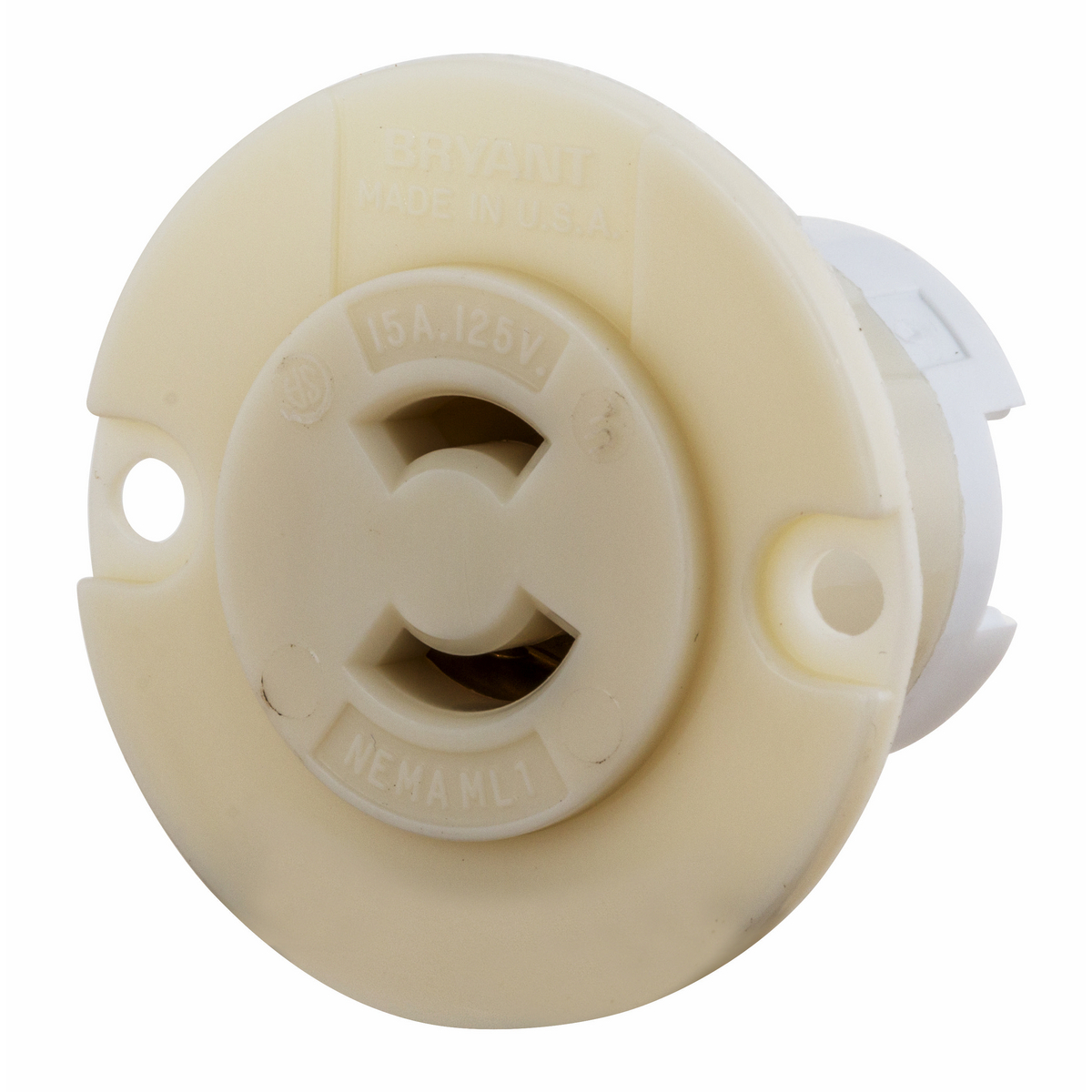

Locking Devices, Bryant Midget Locking, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, ML-1R, Screw Terminal, Black

By Bryant

Catalog ID: 7468N

By Bryant
Catalog ID:  7468N
Locking Devices, Bryant Midget Locking, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, ML-1R, Screw Terminal, Black

Standard Product

Contact Us
Add to List

More Options

Where to Buy

Product Details

General

Application Extra Heavy Duty Industrial Specification Grade
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Item Type 15A Midget Flanged Receptacle
Material Composite
Material - Mounting Hardware Screw Mounting
Number Of Poles 2-Pole
OEM Brand Name Hubbell Bryant
Style Non-Grounding
Type Flanged Receptacle
UPC 781786638525

Dimensions

Dimensions 1.63 in x 1.38 in x 1.18 in
Display Size Midget Locking
Height 1.18 in
Length 1.63 in
Width 1.38 in

Electrical Ratings

Amperage Rating 15 A
Connectivity Terminal Screws
Current Rating 15 A
Phase Single Phase
Voltage Rating 125 V
Voltage Rating Description 125V

Conductor Related

Number Of Wires 2-Wire
Wire Size #18 AWG to #12 AWG

Certifications and Compliance

Nema Rating ML-1R

Logistics

Carton Quantity 10
