Discontinued

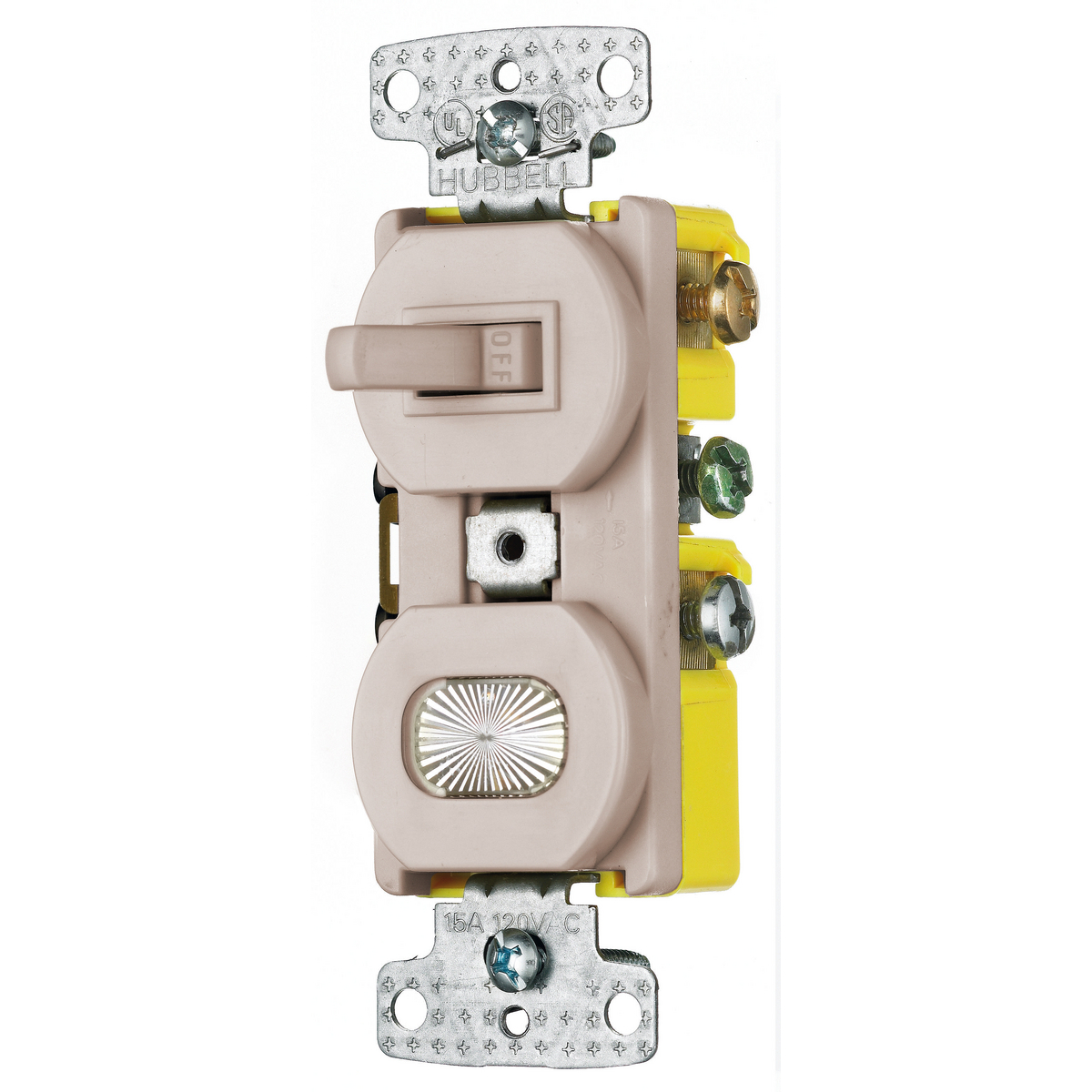

COMBO, 15A 3W TOG, PILOT/ILLUM, AL
Request a Quote
Brand:
Bryant
Catalog ID:
RC309AL
COMBO, 15A 3W TOG, PILOT/ILLUM, AL
Quiet snap action mechanism
Self-grounding staple is standard
Elongated strap with continuous plaster ears
Standard Product
Product details
Resources and downloads
Product details
General
Action
Snap Switch
Actuator
Toggle
Application
Residential
Contact Configuration
Two Position
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Contact Manufacturer
Item Type
Traditional Switch and Amber Pilot Combo Devices
Material - Mounting Hardware
Mounting Screws
Number Of Poles
1) Three Way
Operating Cycles
30,000 Minimum
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
UPC
883778110108
Dimensions
Display Size
Standard Size
Electrical Ratings
Amperage Rating
15 A
Connectivity
Side Wired
Contact Rating
15A
Current / Amperage Rating
15 A
Current Rating
15 A
Voltage Rating
120 VAC
Wattage
1800
Logistics
Carton Quantity
10
Resources and downloads
Specifications
RC309AL Specification Sheet
