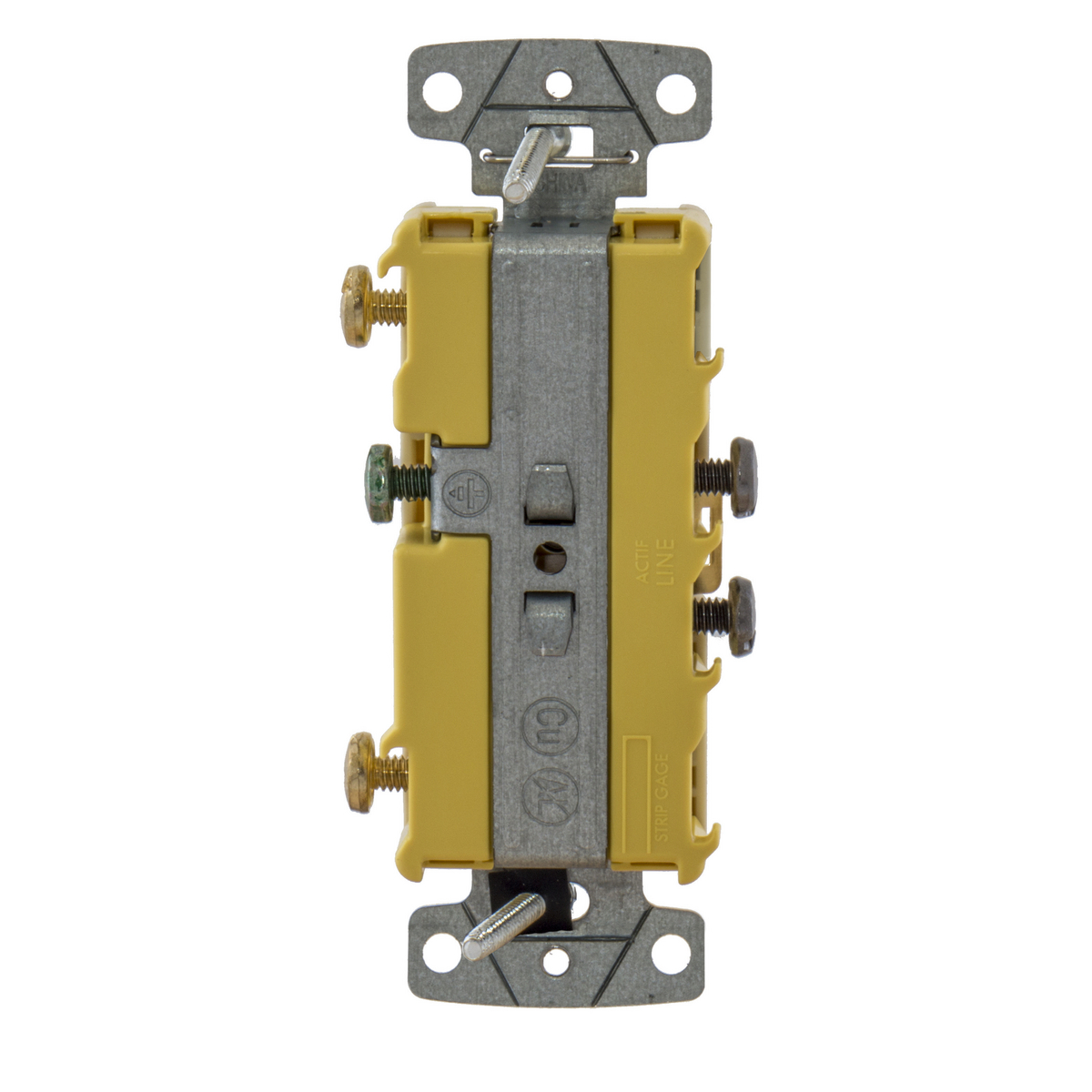

Combination Devices, Residential Grade, 1) Single Pole Toggle, 1) Single Tamper Resistant Receptacle, 15A 120VAC, SelfGrounding, Side Wired

By Bryant

Catalog ID: RC108LATR

By Bryant
Catalog ID:  RC108LATR
One Single Pole Toggle One Single TR Receptacle Combination Device, Residential 15A 120VAC, Self Grounding, Side Wired
  • Quiet snap action mechanism
  • Self-grounding staple is standard
  • Elongated strap with continuous plaster ears

Tamper Resistant Receptacle

Buy Now
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Action Snap Switch
Actuator Toggle
Application Residential
Contact Configuration Two Position
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Item Type Traditional Switch and Receptacle Combo Devices
Material - Mounting Hardware Mounting Screws
Number Of Poles 1) Single Pole
Operating Cycles 30,000 Minimum
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Performance Environmental - Operating temperature - -20°C to 60°C
UPC 883778302268

Dimensions

Display Size Standard Size

Electrical Ratings

Amperage Rating 15 A
Connectivity Side Wired
Contact Rating 15A
Current / Amperage Rating 15 A
Current Rating 15 A
Voltage Rating 120 VAC
Voltage Rating Description 120 VAC
Wattage 1800

Certifications and Compliance

Industry Standard(s) UL Listed

Logistics

Carton Quantity 10
