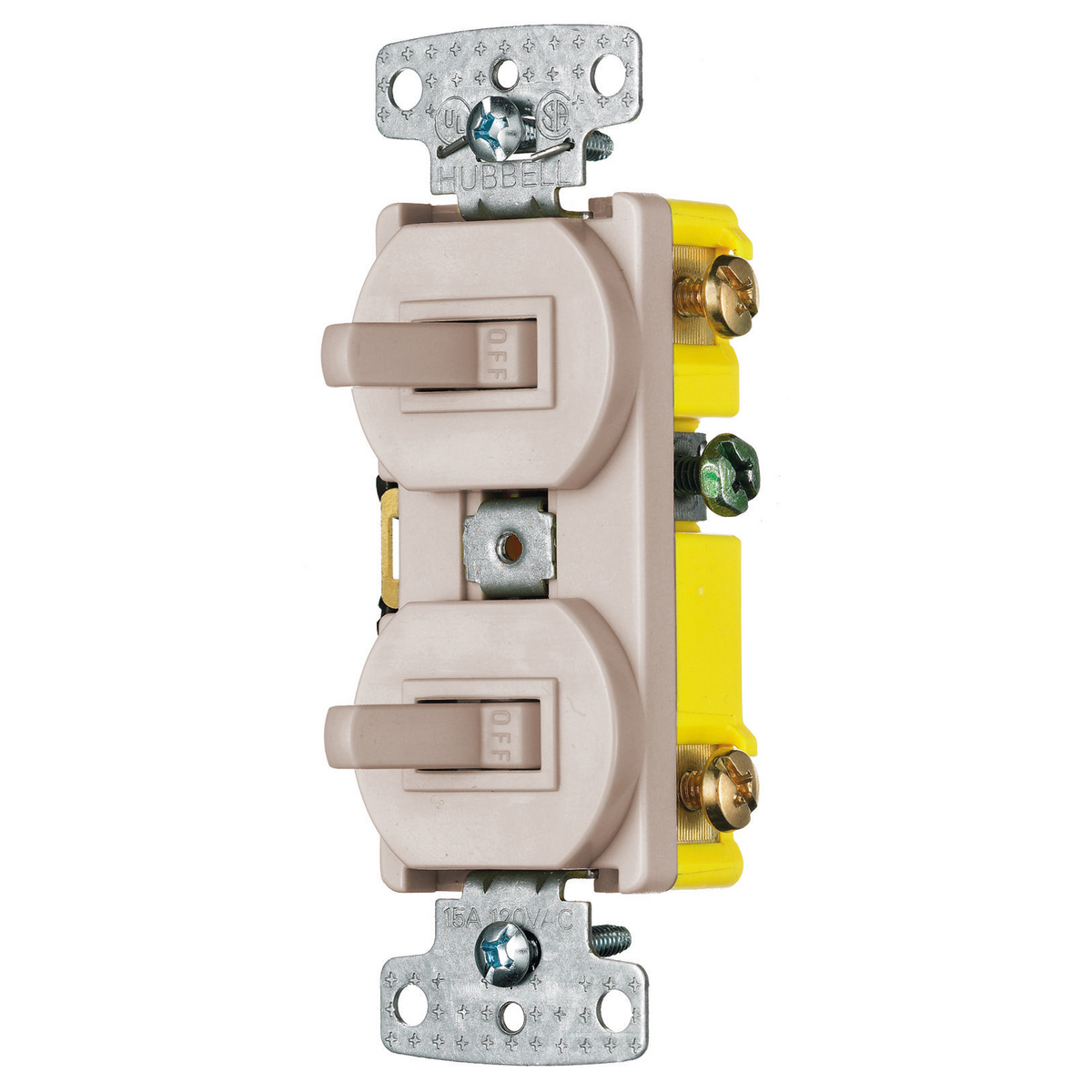

Switches and Lighting Controls, Combination Devices, Residential Grade, 2) Single Pole Toggles, 15A 120V AC, Self Grounding, Side Wired, Brown

By Bryant

Catalog ID: RC101AL

By Bryant
Catalog ID:  RC101AL
Switches and Lighting Controls, Combination Devices, Residential Grade, 2) Single Pole Toggles, 15A 120V AC, Self Grounding, Side Wired, Brown
  • Quiet snap action mechanism
  • Self-grounding staple is standard
  • Elongated strap with continuous plaster ears

Standard Product

Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Action Snap Switch
Actuator Toggle
Application Residential
Contact Configuration Two Position
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Item Type Traditional Switch Combo Devices
Material - Mounting Hardware Mounting Screws
Number Of Poles 2) Single Pole
Operating Cycles 30,000 Minimum
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
UPC 883778109805

Dimensions

Display Size Standard Size

Electrical Ratings

Amperage Rating 15 A
Connectivity Side Wired
Contact Rating 15A
Current / Amperage Rating 15 A
Current Rating 15 A
Voltage Rating 120 VAC
Wattage 1800

Logistics

Carton Quantity 10
