  7. Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 30A 3- Phase 250V AC, 15-30P, Single Pack

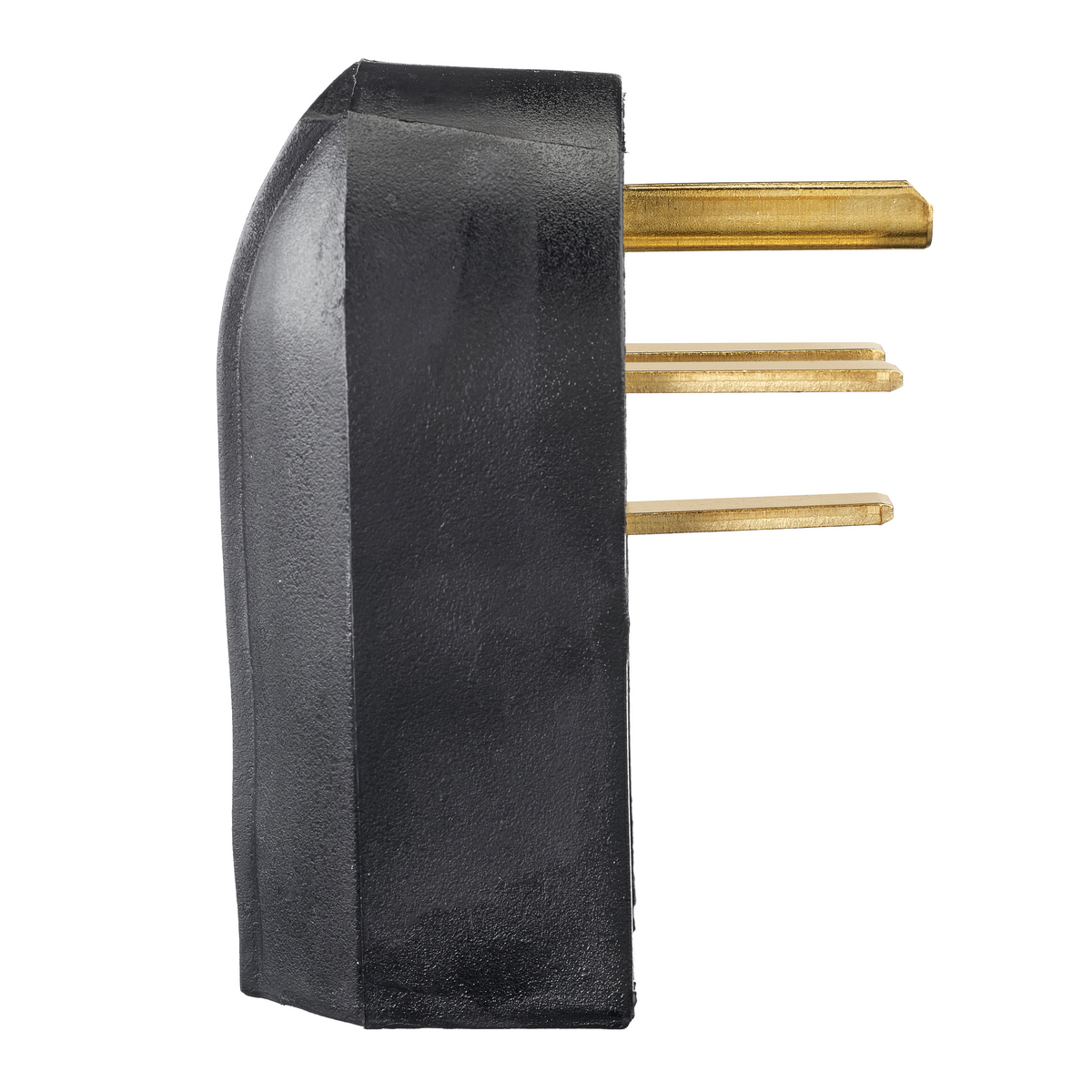

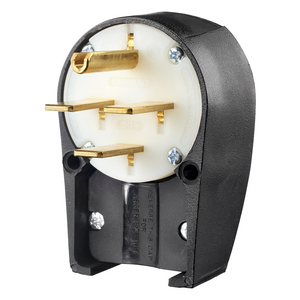

Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 30A 3- Phase 250V AC, 15-30P, Single Pack

By Bryant

Catalog ID: 8432ANPB

By Bryant
Catalog ID:  8432ANPB
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 3-Pole 4-Wire Grounding, 30A 3- Phase 250V AC, 15-30P, Black, Single Pack

Angled

Contact Us
Add to List

More Options

Where to Buy

Product Details

General

Application Heavy Duty
Color Black and White
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Item Type Standard
Material Composite
Material - Mounting Hardware Cord Mounted
Number Of Poles 3-Pole
OEM Brand Name Hubbell Bryant
Series Industrial
Style Heavy Duty
Type Plug
UPC 781786673922

Dimensions

Display Size Standard Sized
Length 4.19 in
Weight 0.75 lb
Width 3.25 in

Electrical Ratings

Amperage Rating 30 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 30 A
Current Rating 30 A
Phase Three Phase
Voltage Rating 250 V
Voltage Rating Description 250 V
Wattage 7500

Conductor Related

Cord Type All Portable
Number Of Wires 4-Wire
Wire Size #12 AWG to #8 AWG

Certifications and Compliance

Nema Rating 15-30P

Logistics

Carton Quantity 10
