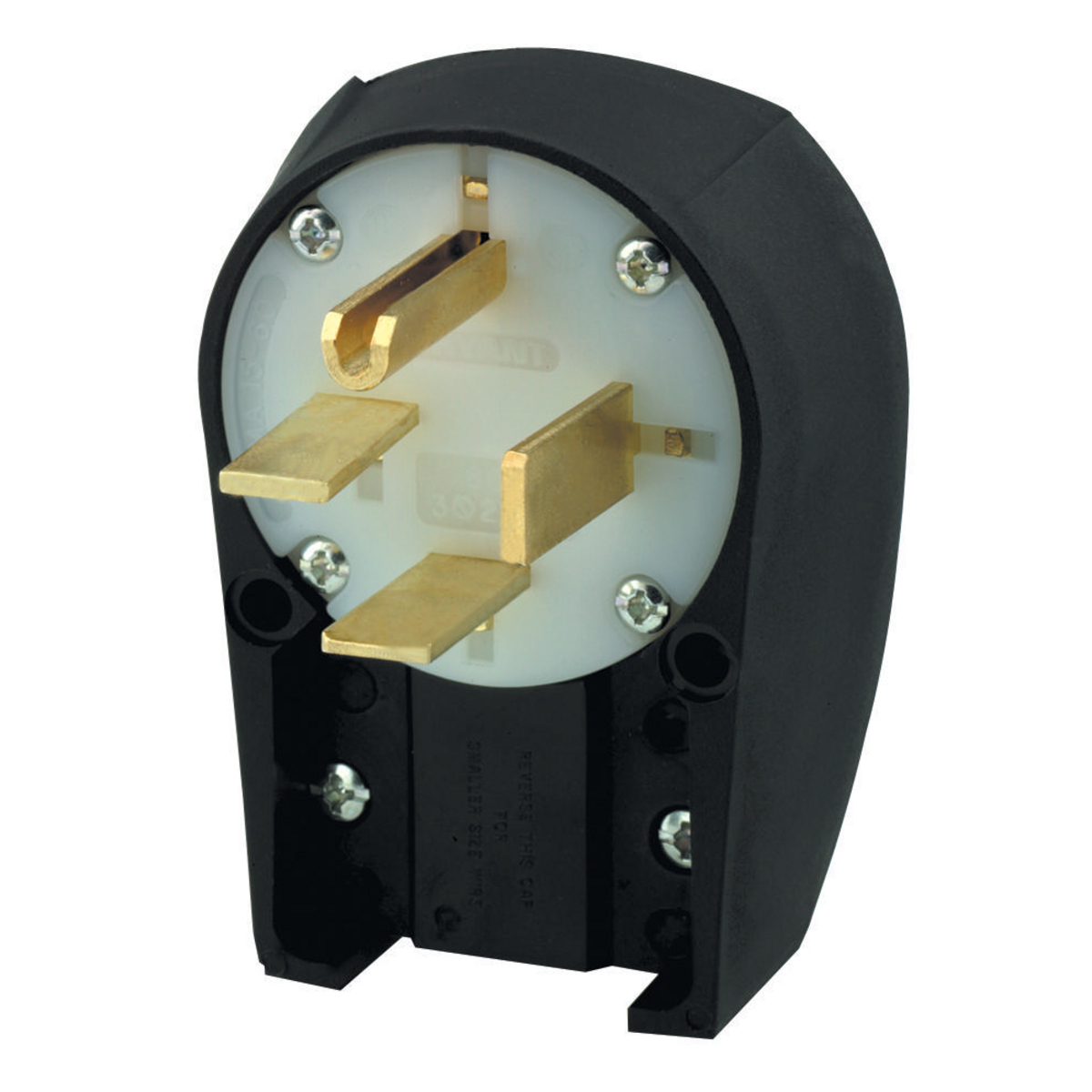

Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 60A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, 15-60P, Single Pack

By Bryant

Catalog ID: 8462ANPB

By Bryant
Catalog ID:  8462ANPB
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Angled, 60A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, 15-60P, Black, Single Pack

Angled

Contact Us
Add to List

More Options

Where to Buy

Product Details

General

Application Heavy Duty
Color Black
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Item Type Standard
Material Composite
Material - Mounting Hardware Cord Mounted
Number Of Poles 3-Pole
OEM Brand Name Hubbell Bryant
Series Industrial
Style Heavy Duty
Type Plug
UPC 781786674325

Dimensions

Dimensions 4.19 in x 3.25 in x 1.75 in
Display Size Standard Sized
Height 1.75 in
Length 4.19 in
Weight 0.7 lb
Width 3.25 in

Electrical Ratings

Amperage Rating 60 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 60 A
Current Rating 60 A
Phase Three Phase
Voltage Rating Three Phase 250 VAC
Voltage Rating Description 3 Phase 250 VAC
Wattage 12480

Conductor Related

Cord Type All Portable
Number Of Wires 4-Wire
Wire Size #6 AWG to #4 AWG

Certifications and Compliance

Nema Rating 15-60P

Logistics

Carton Quantity 10
