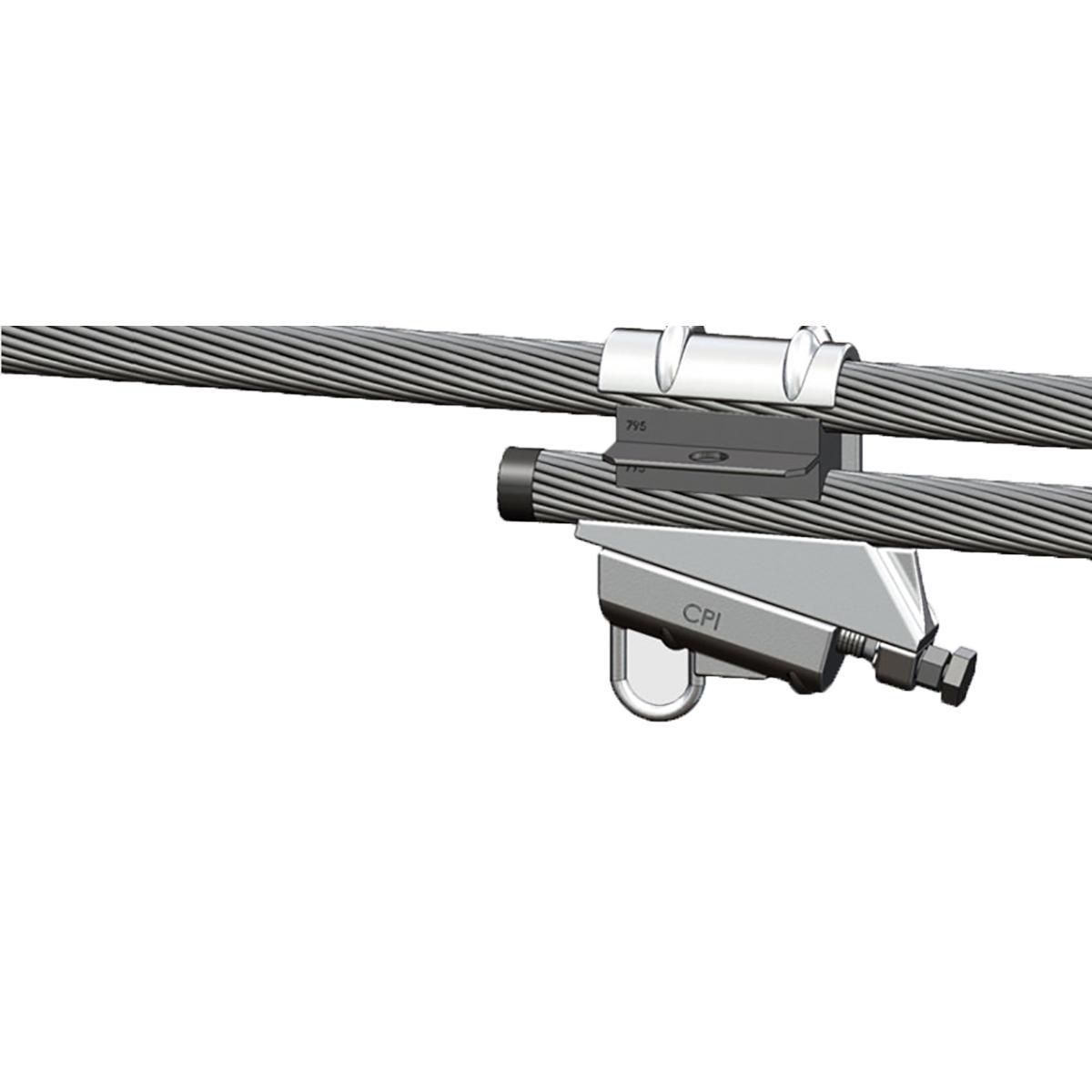

103110, Shear Bolt Wedge Tap Connector, 1033.5 -1271 AAC, Tap: 2/0 ACSR - 4/0 AAC
Brand:
Connector Products (CPI)
CPI Aluminum Taps are designed for use as a permanent connection for aluminum and copper conductors. CPI wedge connectors use high strength aluminum alloy, pure aluminum and a unique shear head bolt for a mechanically strong, electrically conductive and easy to install connection.
- Industry-proven spring wedge technology easily installed with common socket or impact wrench - No Special Tools Required!
- "Spring Like" high strength C-Body ensures permanent connection with consistent pressure on the conductors
- Meets or exceeds current carrying capacity of conductors being connected
- Corrosion resistant highly conductive aluminum alloys with a pure aluminum insert between conductors increases conductivity and lowers electrical resistance
- Corrosion inhibitor factory applied for ease of installation
- Remains permanently locked through fault current or power surges
- Easy to remove without damage to conductor
- May be used in non-corrosive environments to connect copper conductors
- Excellent option for emergency storm restoration
Product details
Conductor Related
Conductor Range
Main Conductor: 1-33/5 ACSR, 1113 ACSR, 1102 AAC, 1282 AAC (1.212" - 1.300")
Tap Conductor: 2/0 ACSR, 3/0, 4/0 AAC (.447" - .522")
Tap Conductor: 2/0 ACSR, 3/0, 4/0 AAC (.447" - .522")
