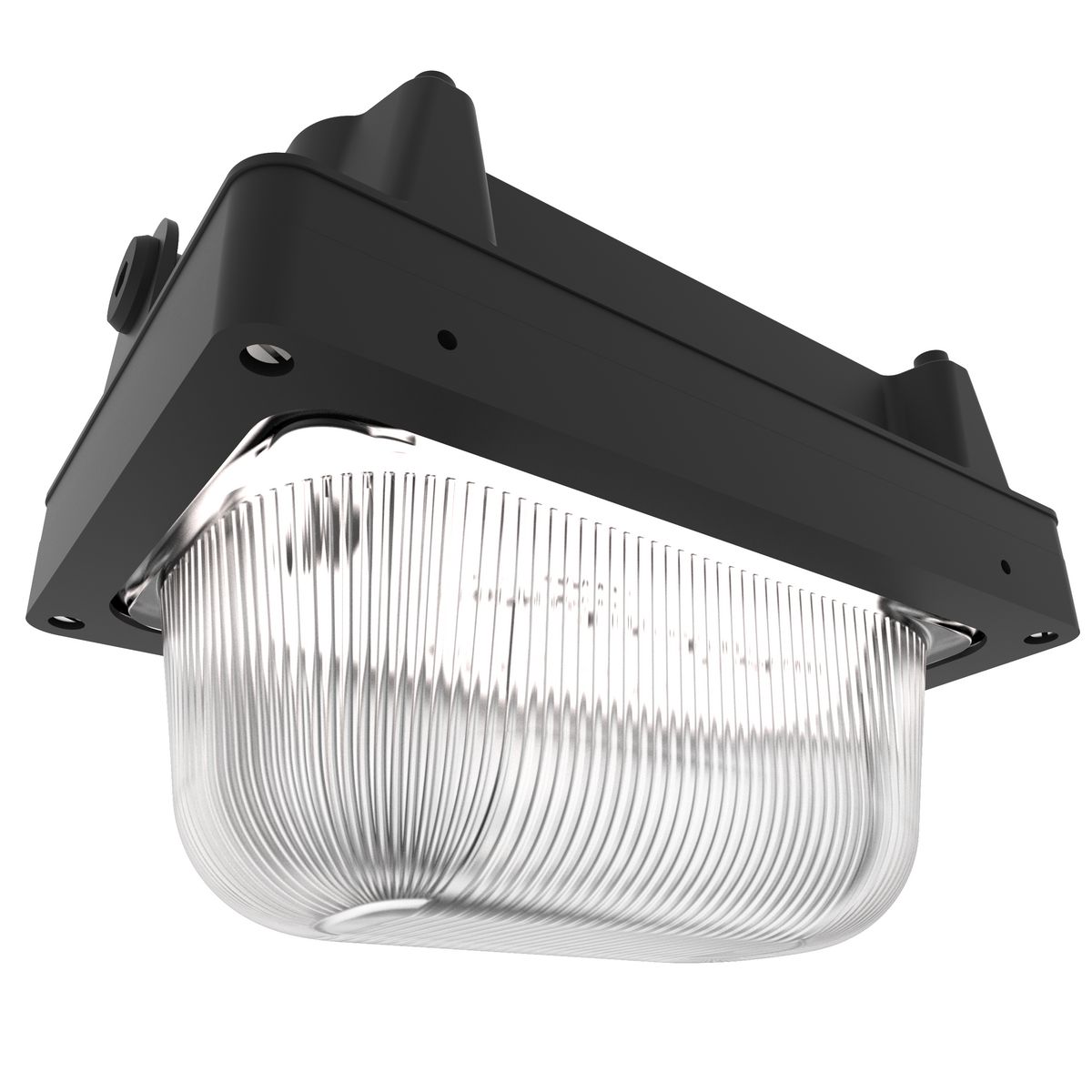

Nexxus II

By Chalmit Lighting
By Chalmit Lighting
The Nexxus II low power LED bulkhead luminaire is suitable for a wide range of applications and ambient temperatures. With reduced energy consumption when compared to traditional light sources this versatile luminaire is suitable for ceiling, wall and bulkhead mounting.
  • Fixing points outside restricted breathing enclosure.
  • High corrosion resistance.
  • Through wire or looping as standard.
  • Prismatic lens.
  • Suitable for low temperature applications.
  • Very low power consumption.
  • Highly Energy Efficient.
  • Suitable for Zone 21 combustible dust environments.
  • Equivalent performance to a 26W CFL.

Click the 'Contact Us' link above to get in touch with us and discuss how the Nexxus II LED bulkhead luminaire could work for you.

Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

ATEX Classification Group II Category 3 GD
Application
  • Zone 2, 21, & 22
  • Mounting holes in rear of casting
Construction Material - Main Painted Aluminum LM6 Enclosure
Ingress Protection
  • IP66
  • IK08
Lamp Type
  • 12 x 1W LEDs
  • White
Light Source LED Array
Material LM6 aluminium; RAL-9005 black matt fine textured epoxy paint finish with toughened glass and sIndustrialicone gasket.
Operating Temperature Range Celcius -45°C to +55°C
Style Bulkhead
Type Bulkhead

Certifications and Compliance

Certified Listed
  • ATEX
  • IEC Ex
  • EAC (Russian)
Compliance
  • Restricted Breathing
  • IP66
  • IK08
Hazardous Rating(s)
  • Ex nR IIC T6 Gc
  • Ex tc IIIC T70°C Dc IP6X
Industry Standard(s)
  • EN 60079-10-1
  • EN 60079-10-2
  • EN 60079-14

Photometry (1)

Product Name Color Temp CRI Lumens Lm/W Watts Dist. Type Resources
Photometric File | NE2N/121/LE
