Compression Terminal

By Burndy

Catalog ID: YAV28L13NK

By Burndy
Catalog ID:  YAV28L13NK

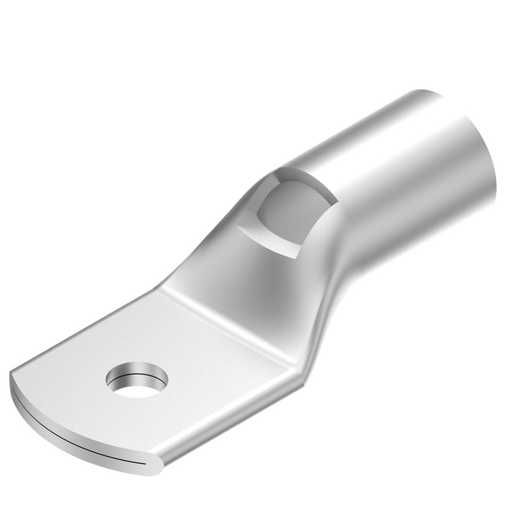

Cu tubing Compression Terminal, 1 Hole W/InspWindow, AN-4/0, 5/8" Stud, Nickel Plated.
Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Application Wire Termination
Connector Type STANDARD BARREL
Die Index 15
Feature - Barrel Style Chamfered
Feature - Barrel Type Standard
Finish Type Nickel Plated
Material COPPER
Physical Attribute - Number of Holes 1
Physical Attribute - Tongue Type Ring
Plated Y
Plating Type Nickel
Temperature Rating 194
Trade Name HYLUG™
Type Standard Barrel, Nickel Plated
UPC 781810055090
UPC 12 Digit 7818100550900

Dimensions

Dimension - B Length fraction 7/8 in
Dimension - B Length inch 0.85 in
Dimension - Bolt Hole Size inch 0.66 in
Dimension - Bolt Size fraction 5/8
Dimension - Bolt Size inch 0.63
Dimension - D inch 1.16 in
Dimension - Hole Size fraction 5/8
Dimension - Hole Size inch 0.69
Dimension - Hole Size mm 17.5 mm
Dimension - L Length Overall mm 69 mm
Dimension - Length Overall inch 2.72 in
Dimension - N inch 0.56 in
Dimension - Pad Width inch 1.12 in
Dimension - Strip Length inch 7/8
Dimension - Stud Size fraction 5/8
Dimension - Thread Size 5/8 in
Dimension - Z inch 0.60 in
Physical Attribute - Tongue Angle Straight

Electrical Ratings

Voltage - Maximum 35000
Voltage Rating 35 kV

Conductor Related

Conductor - Copper Str Aircraft Size AN 0000
Conductor - Copper Str Aircraft Size Range AN 0000
Conductor - Copper Str Size 4/0 AWG
Conductor - Material COPPER
Conductor Size 4/0 AWG
Conductor Type CODE

Certifications and Compliance

Certification - CSA Approved No
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 100
Pallet Quantity 14800

Resources and Downloads

Specifications

YAV28L13NK Specification Sheet

Sales Drawings

50094161_E

Videos

HYDENT Compression Terminal Overview Video
