Compression Terminal

By Burndy

Catalog ID: YAZ442TC38

By Burndy
Catalog ID:  YAZ442TC38
Prop 65 Notice

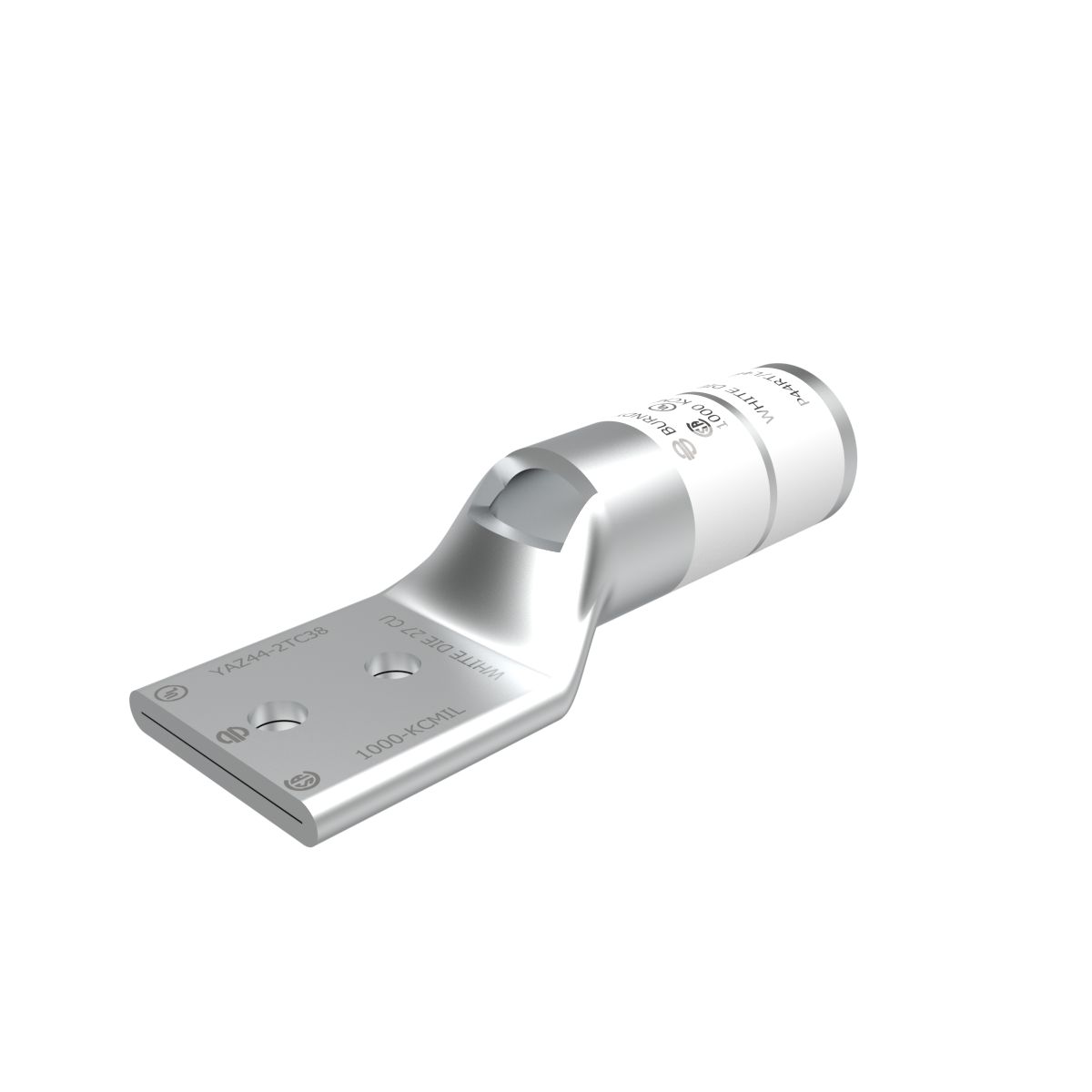

1000 kcmil CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, White Color Code, 27 Die Index.
Contact Us
Add to List

More Options

Where to Buy
Get a Quote
Related Links

Product Details

General

Application Wire Termination
Color Code White
Connector Type LONG BARREL
Die Index 27
Feature - Barrel Style Skived
Feature - Barrel Type Long
Finish Type Tin-Plated
Material COPPER
Physical Attribute - Number of Holes 2
Physical Attribute - Tongue Type Standard
Plated Y
Plating Type Tin - Electro Plated
Trade Name HYLUG™
Type Long Barrel, Skive, Tin Plated
UPC 781810228036
UPC 12 Digit 7818102280366

Dimensions

Dimension - B Length fraction 3 in
Dimension - B Length inch 3.00 in
Dimension - Bolt Hole Size inch 0.39 in
Dimension - Bolt Size fraction 3/8
Dimension - Bolt Size inch 0.38
Dimension - Hole Size fraction 3/8
Dimension - Hole Size inch 0.40 in
Dimension - Hole Size mm 10.4 mm
Dimension - L Length Overall mm 155 mm
Dimension - Length Overall inch 6.09 in
Dimension - N inch 0.50 in
Dimension - Outside Diameter inch 1.50 in
Dimension - Pad Width inch 2.19 in
Dimension - Strip Length inch 3-1/16
Dimension - Stud Size fraction 3/8
Dimension - Stud Size inch 3/8
Dimension - Z inch 0.53 in
Physical Attribute - Tongue Angle Straight

Electrical Ratings

Voltage - Maximum 35000
Voltage Rating 35 kV

Conductor Related

Conductor - Copper Str Size 1000 KCMIL
Conductor - Material COPPER
Conductor Size 1000 KCMIL
Conductor Type CODE

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 3
