Compression Terminal

By Burndy

Catalog ID: YAZ30TC12

By Burndy
Catalog ID:  YAZ30TC12
Prop 65 Notice

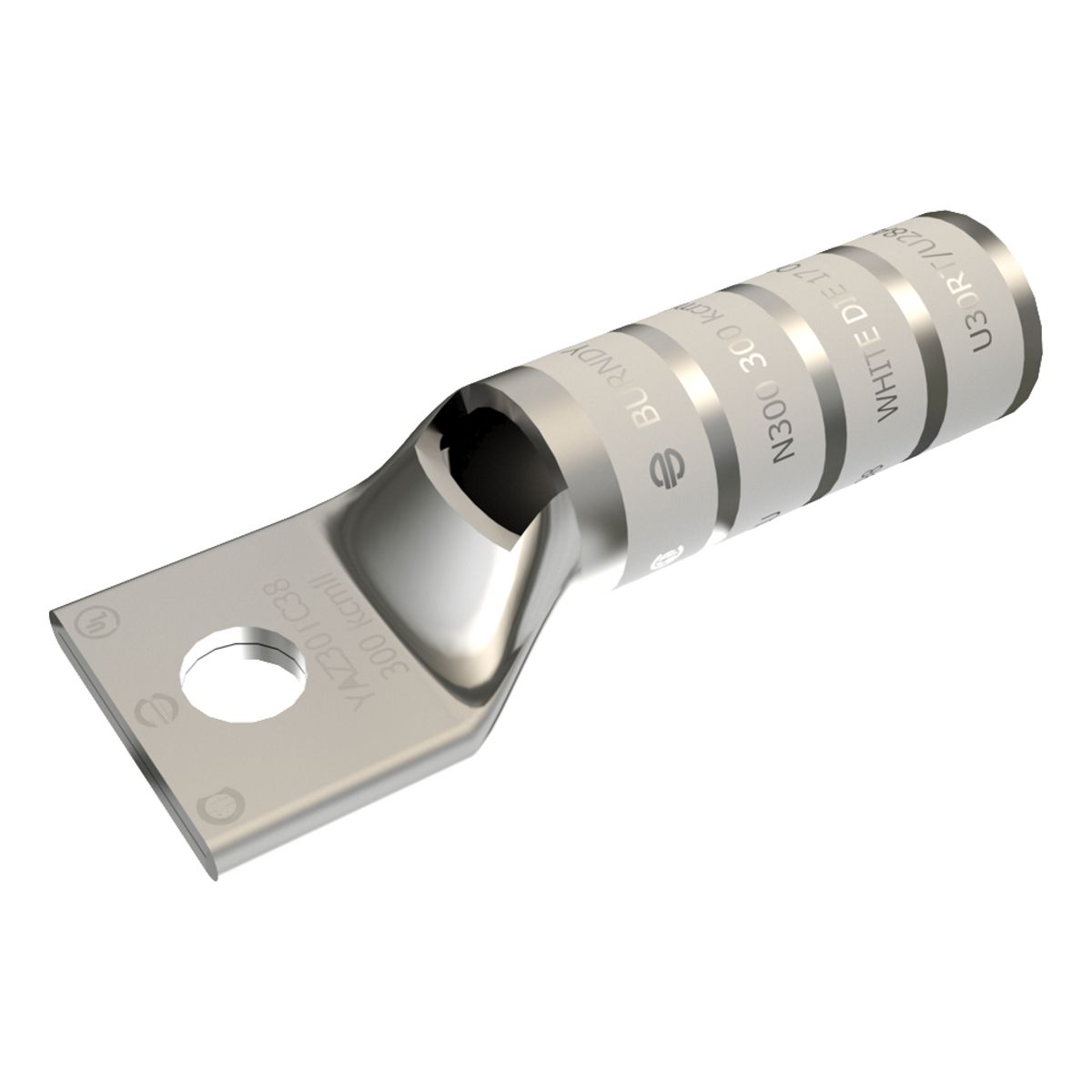

300 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, White Color Code, 17 or 298 Die Index.
Contact Us
Add to List

More Options

Where to Buy
Get a Quote
Related Links

Product Details

General

Application Wire Termination
Color Code White
Connector Type LONG BARREL
Die Index 17
Feature - Barrel Style Skived
Feature - Barrel Type Long
Finish Type Tin-Plated
Material COPPER
Physical Attribute - Number of Holes 1
Plated YES
Plating Type Tin - Electro Plated
Trade Name HYLUG™
Type Long Barrel, Skive, Tin Plated
UPC 781810240243
UPC 12 Digit 7818102402433

Dimensions

Dimension - B Length inch 2.00 in
Dimension - Bolt Hole Size inch 0.52 in
Dimension - Bolt Size fraction 1/2
Dimension - Bolt Size inch 0.5
Dimension - Hole Size fraction 1/2
Dimension - Hole Size inch 0.52 in
Dimension - Hole Size mm 13.5 mm
Dimension - L Length Overall mm 93 mm
Dimension - Length Overall inch 3.66 in
Dimension - N inch 0.53 in
Dimension - Outside Diameter inch 0.81 in
Dimension - Pad Width inch 1.20 in
Dimension - Strip Length inch 2-1/16
Dimension - Stud Size fraction 1/2
Dimension - Stud Size inch 1/2
Dimension - Thread Size 1/2
Dimension - Z inch 0.55 in
Physical Attribute - Tongue Angle Straight

Electrical Ratings

Voltage - Maximum 35000
Voltage Rating 35 kV

Conductor Related

Conductor - Copper Str Navy Size 300 (91) Navy
Conductor - Copper Str Size 300 KCMIL
Conductor - Material COPPER
Conductor Size 300 KCMIL
Conductor Type CODE

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s) UL 486A-486B
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 10
Pallet Quantity 9600

Resources and Downloads

Customer Notices

Prop 65 Notice

Specifications

YAZ30TC12 Specification Sheet

Installation/Instruction Manual (IOM)

Copper Code Long Terminals Tooling and Installation Instructions

Sales Drawings

SE..212356-22

Videos

HYDENT Compression Terminal Overview Video
