KS28

By Burndy

Catalog ID: KS28

By Burndy
Catalog ID:  KS28
Prop 65 Notice

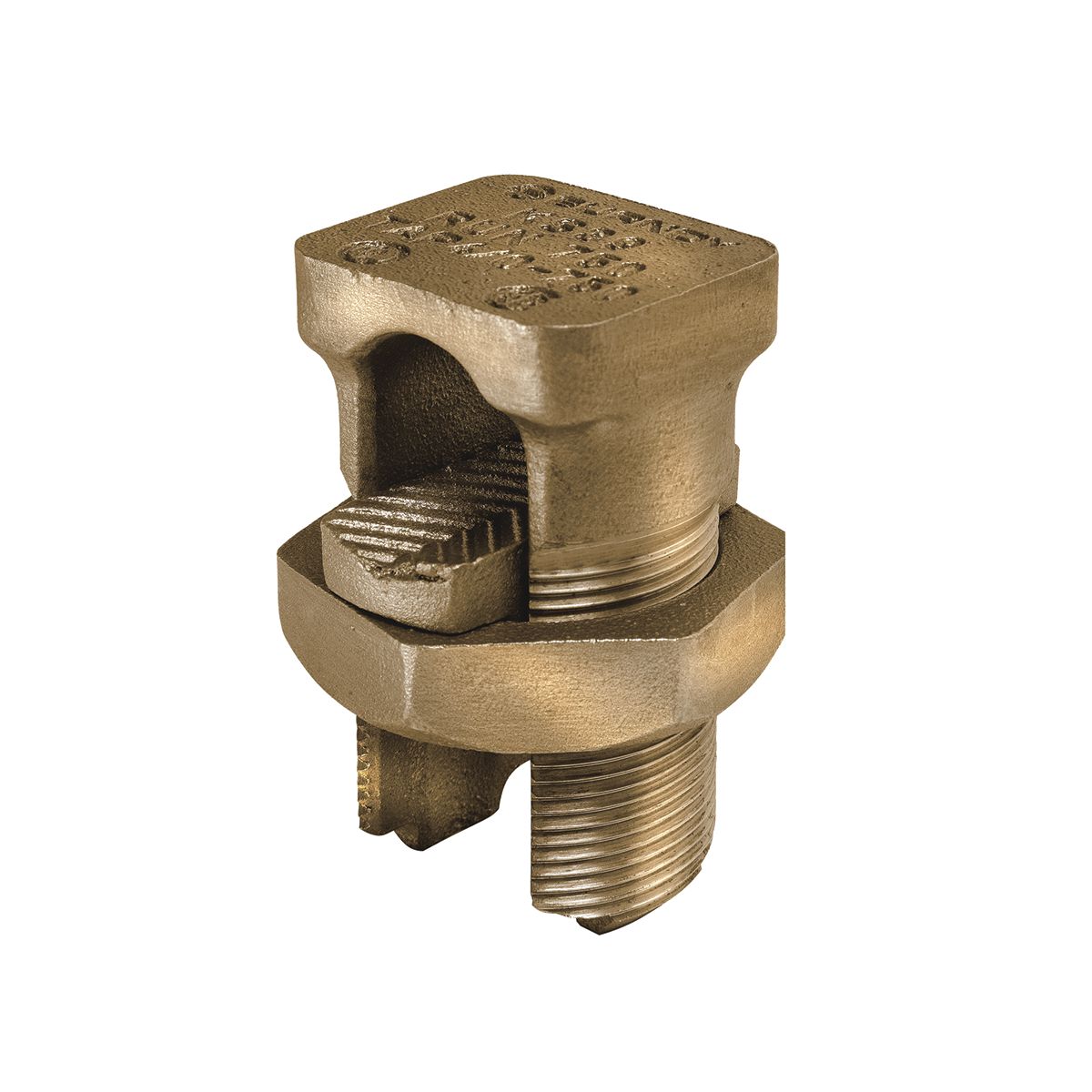

Copper Split Bolt, Cu: 1-4/0 AWG (Run & Tap).
Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Connector Type Split Bolt
Installation Torque Recommended in-lb 650 in
Material Copper
Plated N
Plating Type Unplated
Trade Name SERVIT®
UPC 781810422007
UPC 12 Digit 7818104220077

Dimensions

Dimension - L Length Overall mm 53 mm
Dimension - Length Overall inch 2.46
Dimension - Width inch 1.17 in
Dimension - Width mm 30 mm
Width 1.18 in

Conductor Related

Conductor - Copper Solid Run 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Run Range 1 AWG - 4/0 AWG
Conductor - Copper Solid Tap 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Tap Range 1 AWG - 4/0 AWG
Conductor - Copper Str Run 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Run Range 1 STR - 4/0 STR
Conductor - Copper Str Tap 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Tap Range 1 STR - 4/0 STR
Conductor Type
  • CU C Solid-Run
  • CU C Str-Run
  • CU Weld C Solid-Run
  • CU Weld C Str-Run
  • CU C Str-Tap
  • CU Weld C Solid-Tap
  • CU Weld C Str-Tap
  • CU C Solid-Tap

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Listed Direct Burial Yes
Certification - UL Recognized No
Certification - cULus No
Industry Standard(s)
  • UL 486A
  • UL486B
Standards - Industry Standards Met
  • UL 486A
  • UL486B
Standards - RoHS Compliance Status EX
UL Listed No
