00:12Warning. Some reels with large or multiple springs are

00:16equipped with a ratcheted adjustment wrench follow separately instructions for its use.

00:21Failure to use ratcheted wrench on reels so equipped could result in serious personal

00:27injury warning.

00:29Do not attempt to relieve spring tension using Spanner wrench doing so may result in personal

00:35injury. Ensure that machinery to be serviced by real is

00:41at position closest to real securely mount real in desired position using three by eight inch M

00:4710 bolts.

00:49Be sure spool is aligned with cable run position, optional cable guide.

00:53If real is so equipped, see cable installation drawing,

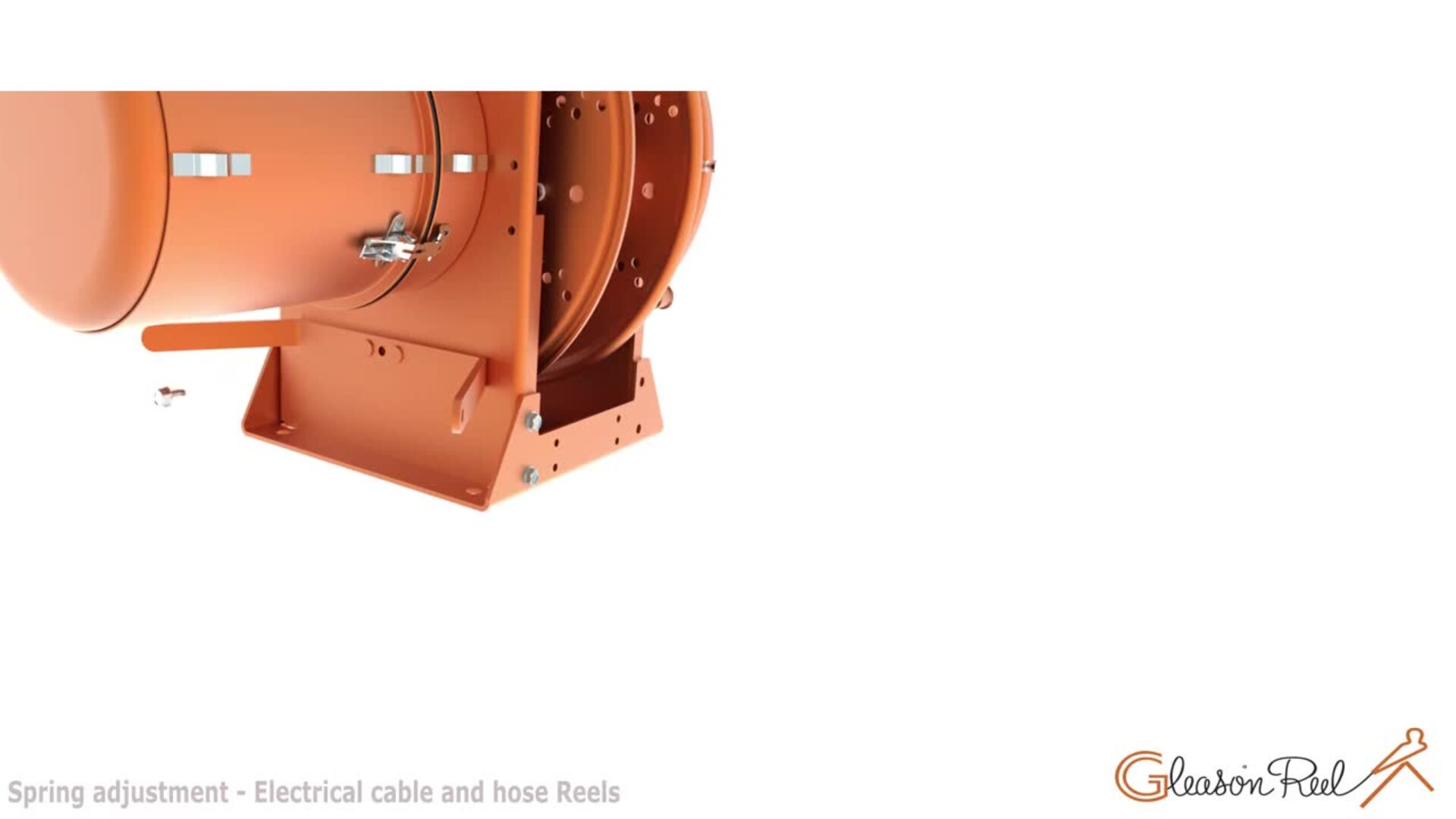

01:00remove cover plate on spring housing to expose shaft and spring hub

01:24insert, Spanner wrench into holes in spring hub rotate wrench counterclockwise for standard

01:31rotation, number of 360 degree turns should match last digit in model number on serial

01:37plate. If model number includes nr real is reverse

01:42rotation and wrench must be rotated. Clockwise warning do not exceed number of

01:49turns indicated on cereal plate over tension can cause a broken spring sheer shaft or other

01:56damage. Remove the wrench and place back into its

02:00original shipping position.

02:24Replace access cover and gasket.
