00:05The wire con installation tool is a device to make wire terminations in self contained

00:10devices, also known as SC DS.

00:13The hazards for the wire con installation tool include the risk of electrical shock,

00:18disconnect power before installing and never wire energized electrical components do not

00:23join two different wire sizes within the same S CD.

00:26Please note only one cable at a time can be installed.

00:31The tools needed include the wire con installation tool,

00:35a screwdriver, a pair of wire cutters, a wire stripper and a receptacle back in body

00:45using the wire strippers, strip and cut the wires per the instructions,

00:52cut the sheathing and form the three wires to position it in the wire con device

01:02place the receptacle in the bottom handle cradle by aligning the bevel on the sed.

01:06And the tool bevel is a guide place the formed wires in the appropriate device terminal,

01:14squeeze the handles together to terminate the wires

01:24place the second set of formed wires into the device terminal on top of the existing

01:29terminated wires.

01:30The maximum number of wires that can exit the sed from one side is two,

01:42take the back of the receptacle and position it by aligning the bevel edge with the receptacle

01:47body. Use your hands to snap the receptacle back to

01:53the receptacle body.

01:55Listen for a double snap and do a visual check to ensure that it is latched together.

02:00Make sure the back end of the receptacle is closed.

02:03If it is too difficult to use your hand, use the handles on the wire con device by taking

02:09the back of the receptacle and placing on top of the bottom black handle position it by

02:14aligning the bevel edge with the receptacle body and squeeze the handles together.

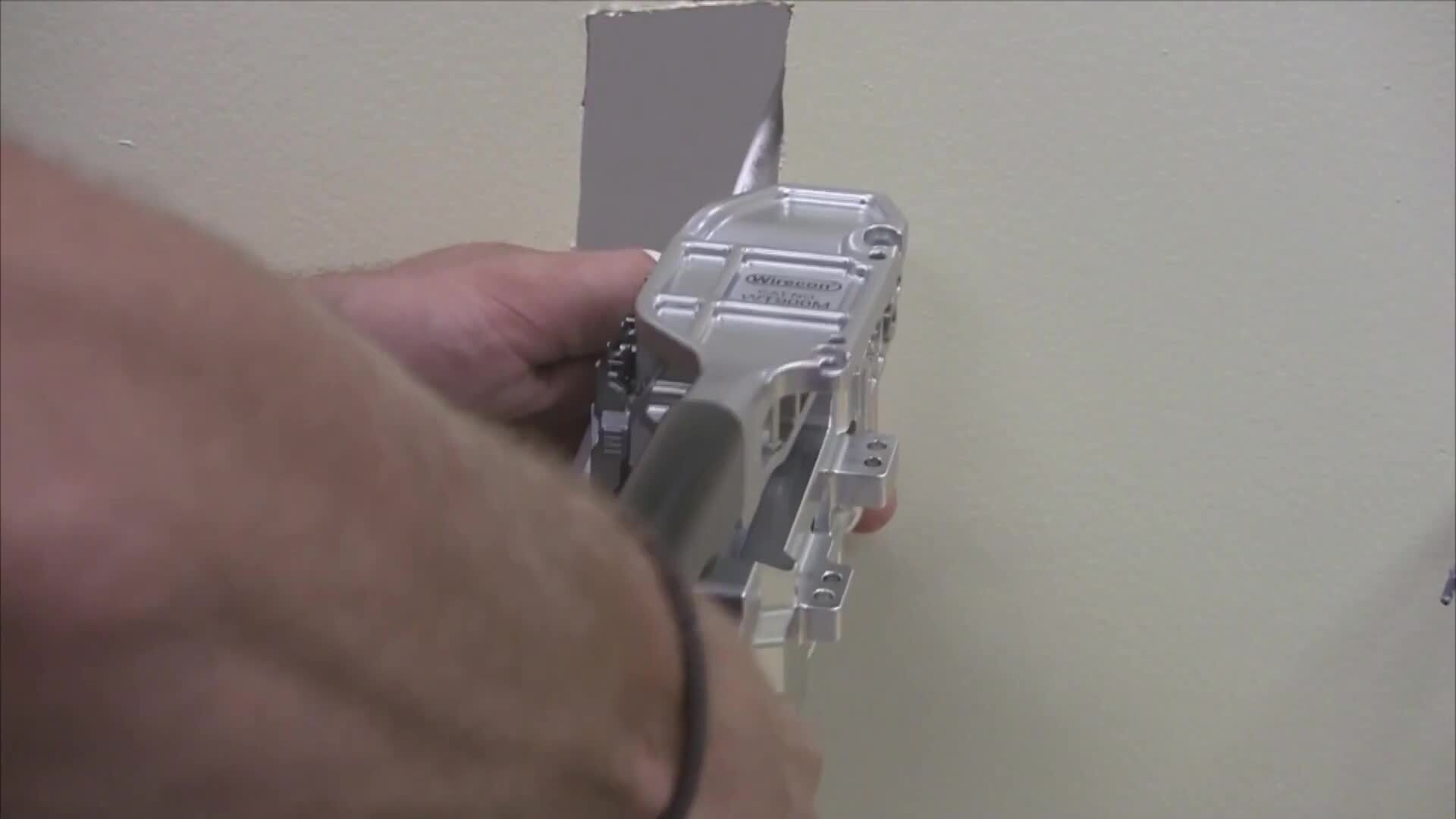

02:30Tuck the paws in place the receptacle into the wall and align the

02:37receptacle vertically.

02:40Use the screwdriver to tighten the pulse screws

02:49place the cover plate over the receptacle.

02:54Congratulations. You have successfully installed the receptacle

02:58using the wire con installation tool.
