1004LUBAR

By TradeSelect

Catalog ID: 1004LUBAR

By TradeSelect
Catalog ID:  1004LUBAR

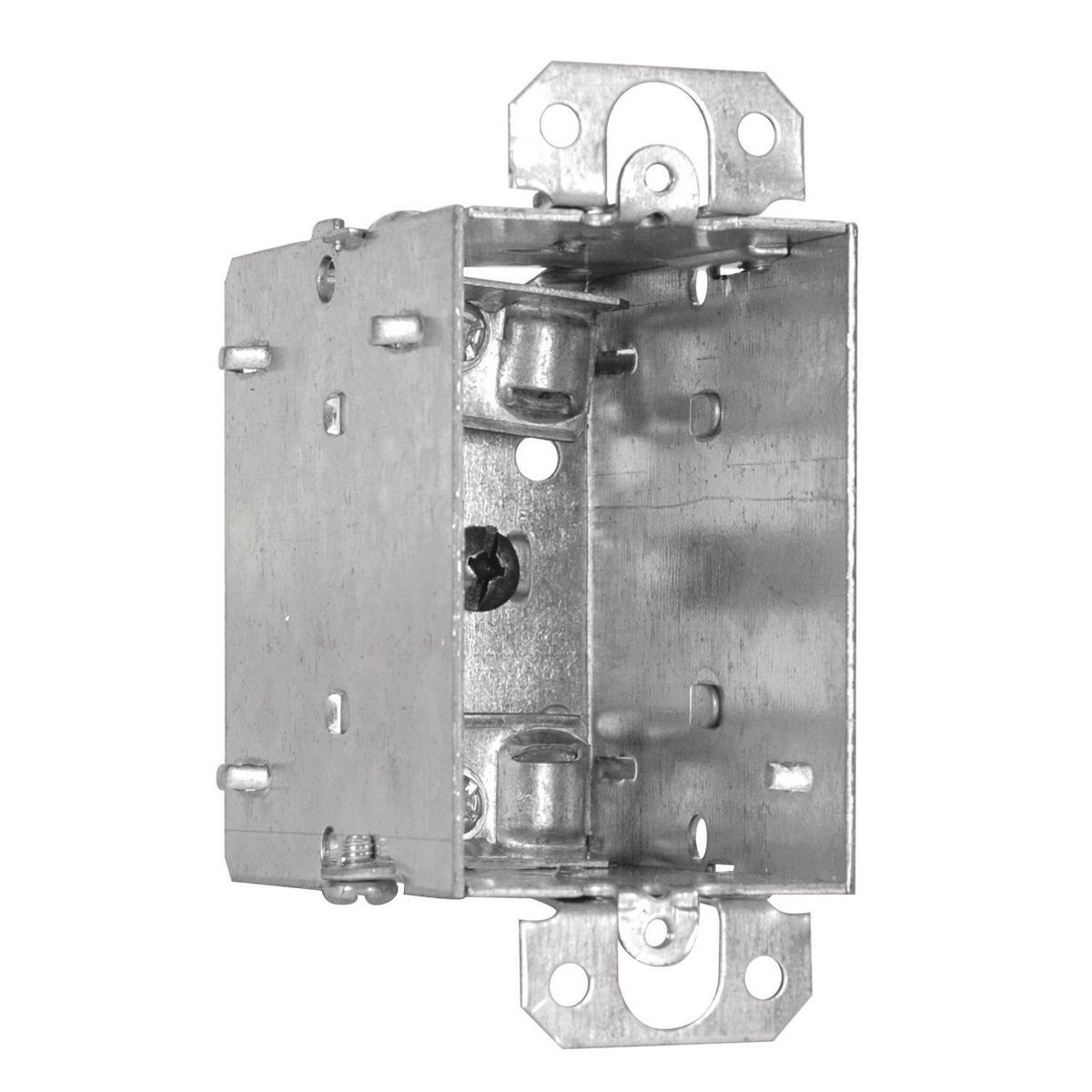

Gangable Box, 3" Deep, Flush Ears, NMD90 and BX90.

  • Device Box 3 Inches Deep, With Flush Ears, Gangable, NMD90 and BX90

    • This voluminous Hubbell® Gangable Device Box offers smooth flat external sides and flush ears that grip on the drywall. It works best in rework installation. When used for rework, this device box will need to be secured onto the drywall with a pair of supports (820DBAR). Some ideal installations are Thermostats, GFCI's, Occupancy Sensors and Dimmers.

    Buy Now
    Add to List

    More Options

    Get a Quote

    Product Details

    General

    Application These 3'' deep device boxes provide more cubic capacity and are ideal for larger appliances such as GFCI's, dimmers and thermostats or when extra cubic capacity is needed.
    Bracket Type No Bracket
    Color
    • Gray
    • Gris
    Drawn or Welded Welded
    Ends Cable 4
    Gangable Yes
    Material Steel
    Number of Gang(s) 1-Gang
    Plaster Ears Yes
    Sub Brand tradeSELECT
    Type
    • Switch Box, Box
    • Switch Box, Box
    UPC 626463020654
    Wiring System Non-Metallic Sheathed (NMD)/ Armoured Cable (AC) 14/2 8/3

    Dimensions

    Actual Depth 3 in
    Raised Ground Yes
    Weight 0.54 lb

    Conductor Related

    Cable Entry Universal Cable Clamps

    Certifications and Compliance

    Certified Listed CSA
    Industry Standard(s) CSA Certified

    Logistics

    Carton Quantity 20
    Pallet Quantity 2100

    Resources and Downloads

    Specifications

    TEM_CA-1004LUBAR-SPEC-FR

    Sales Drawings

    1004LUBAR

    360° AR Enabled Model
