  2. ScrubSwitch™ Sealed Switches

ScrubSwitch™ sealed switches for high-touch surfaces and frequent cleaning.

Surfaces in patient care areas require more frequent cleaning as health care workers can touch up to 15 different surfaces during a single patient interaction. Over 50% of Hospital Acquired Infections (HAIs) are spread through contaminated hands. Cleaning and disinfecting are usually done daily or more frequently if the risk of environmental contamination is higher.

Switches are key locations that require such cleaning.

The Problem With Toggles
  1. Too many nooks and crannies where bacteria can thrive. Gaps and seams between the toggle and the plate, even wallplate screw heads often can’t be cleaned properly.

    2.

  2. Disinfecting solution can cause discoloring and cracking when sprayed directly on the plastic plate. Too much solution allows it to enter through those openings to the interior of the switch, potentially burning it out.
  1. ScrubSwitch devices are the first switches designed to withstand the rigors of medical cleaning solutions and stricter protocols.

    2.

  2. The switch module is 100% sealed against liquids and installs in a standard electrical box. Unlike toggle switches, the totally smooth plate surface offers bacteria nowhere to hide.

    3.

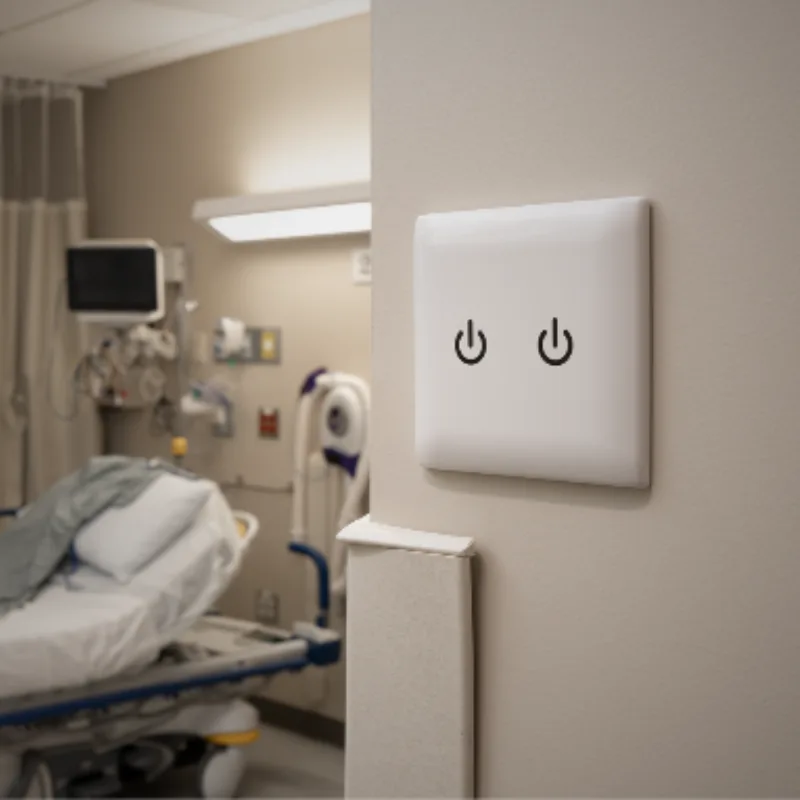

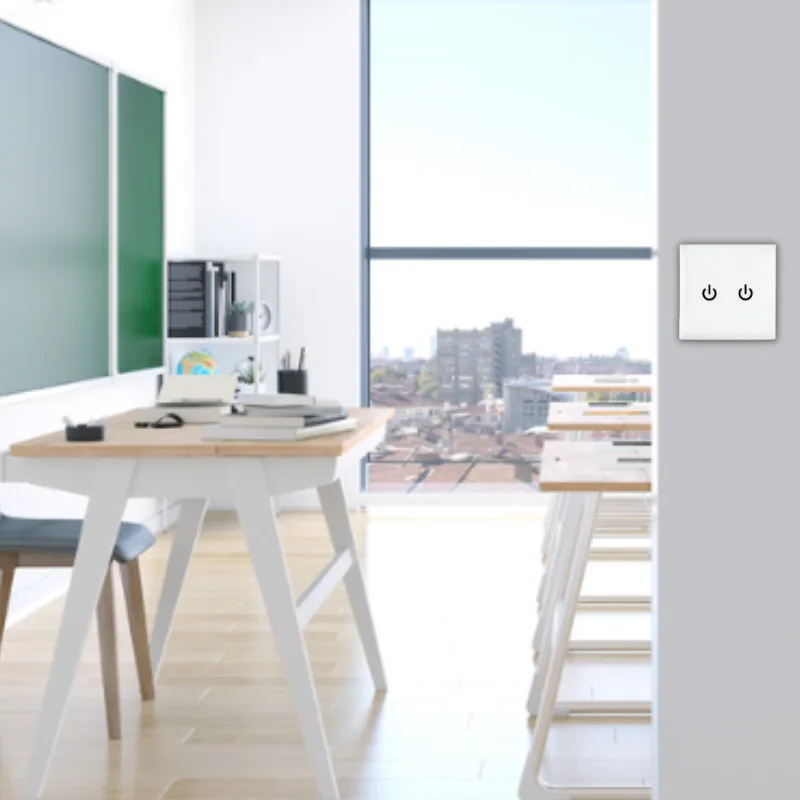

  3. ScrubSwitch devices are perfect for use in doctor and dentist offices, rehab facilities, schools, and in new construction or retrofit applications.

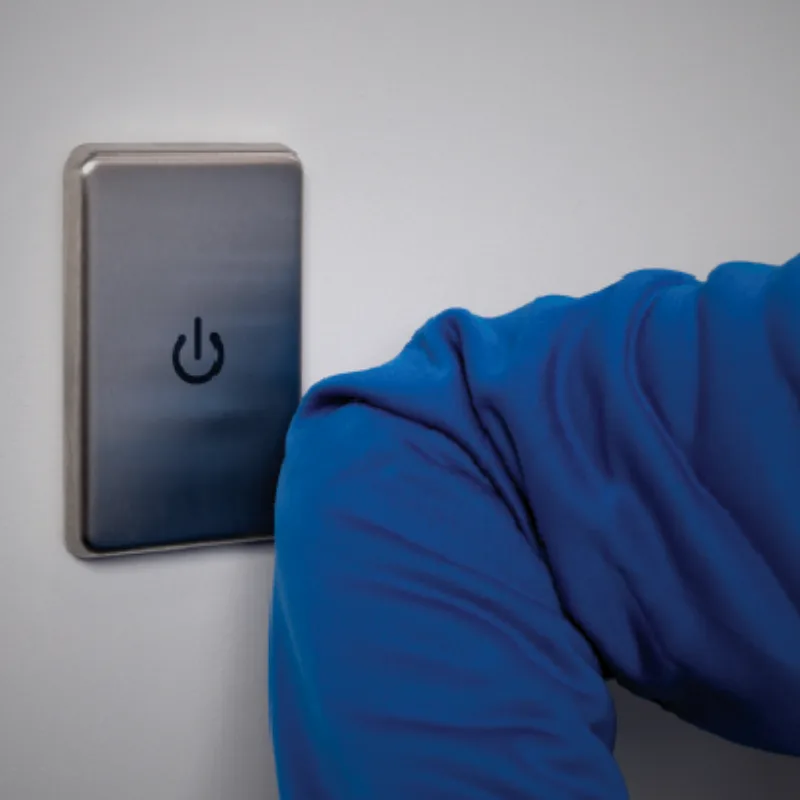

  1. No need to push a rocker or move a toggle, reducing the amount of contact. It works just as well with a latex gloved hand, or an elbow in a shirt sleeve. Touching the tap zone activates lights. They stay on till another touch de-activates them. The design limits accidental activation, such as vibration, walking past, or standing nearby.

    2.

  2. This technology allows the switchplate to maintain a smooth, unbroken surface. There’s simply nowhere for bacteria to hide. The 3R rated sealed switch sits behind the plate. That helps reduce the transmission of viruses and bacteria, enhancing cleanability.
  1. Added Microban® antimicrobial technology in the plate material suppresses bacterial growth. It releases silver ions, which disturb bacteria cell walls, preventing them from reproducing. The technology is shown to be effective on over 99.9% unwanted microorganisms. This can help reduce HAIs.

    2.

  2. The plates are impact-resistant to meet UL and CSA standards. Stainless steel plates, 302/304 grade, are also available.

    3.

  3. Plates can be disinfected using :
    • Bleach
    • Hydrogen peroxide
    • Alcohol/Quat
    • Phenols
    • Disinfectant and germicidal wipes
  1. ScrubSwitch devices help hospitals and other facilities maintain high levels of cleanliness in high touch areas that require more rigorous cleaning.

    2.

  2. These switches can be installed in new construction and retrofit applications.

PRODUCT FEATURES

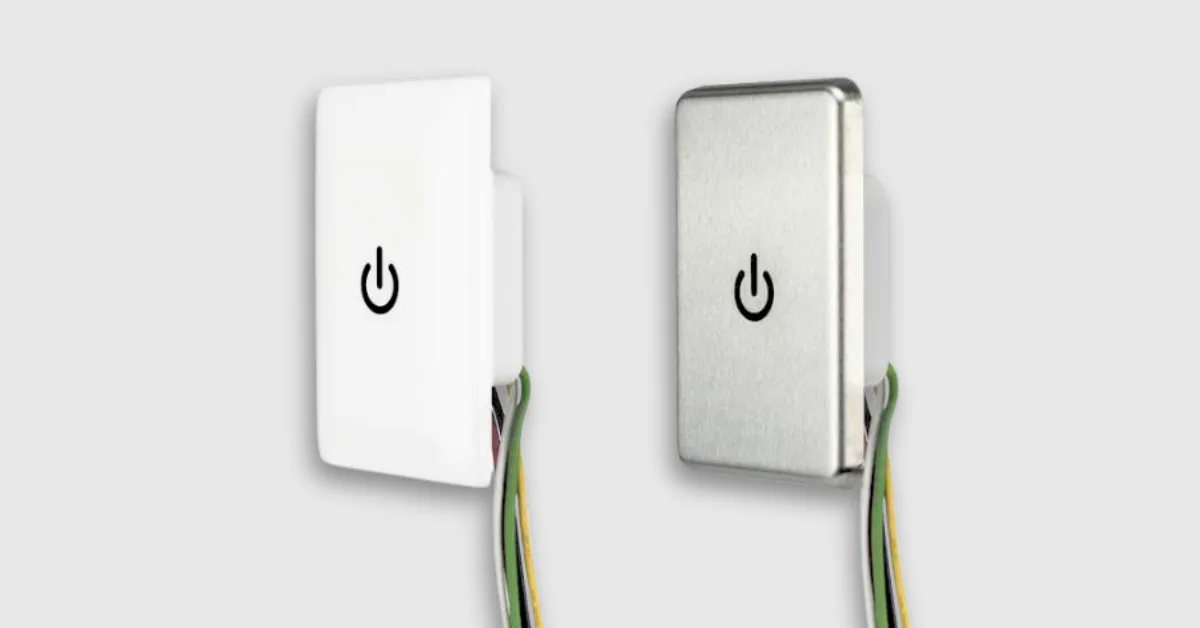

One Gang Switch

  • Single gang ScrubSwitch models offer single-pole and multi-way operation
  • Patented proximity tap sensing technology
  • 10A/120V, 8A/277V, ½HP motor
  • For LED, fluorescent, or incandescent lighting loads
  • NEMA 3R rated
  • Available in a smooth antimicrobial ABS plate or a stainless steel plate
  • Mount to a standard box
  • Complies with UL60730 (Automatic electrical controls) and CAN/CSA-E60730-1 (category CLSB/7)
  • Rated 50,000 cycles per Fed Spec

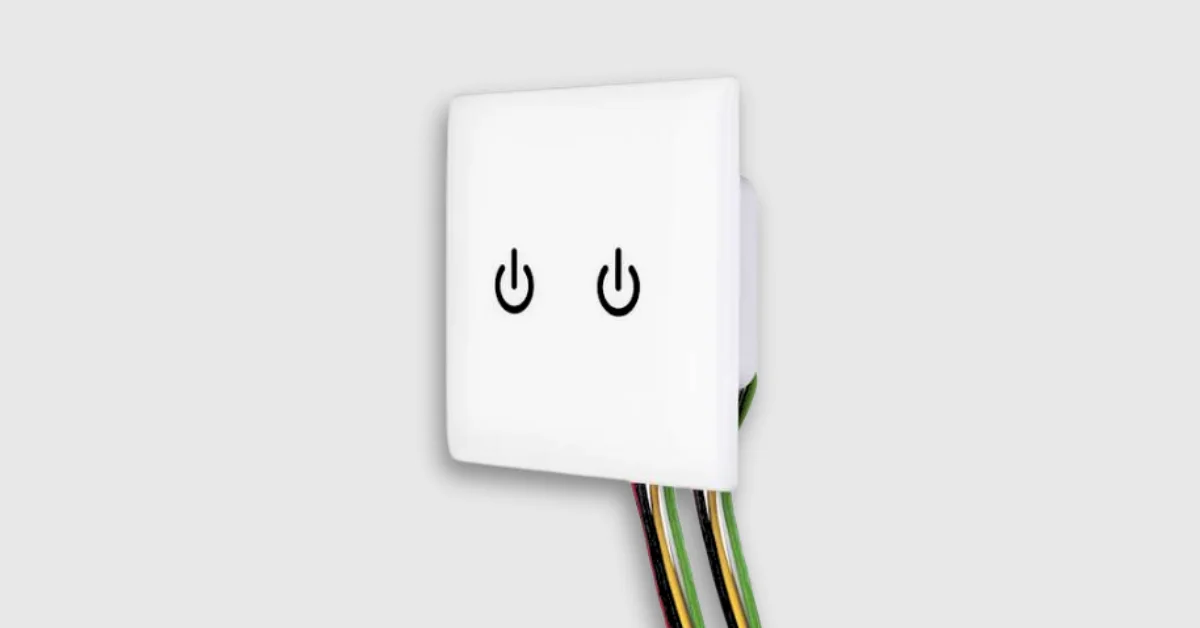

Two Gang Switch

  • Two gang ScrubSwitch model offer single-pole and multi-way operation
  • Patented proximity tap sensing technology
  • 10A/120V, 8A/277V, ½HP motor
  • For LED, fluorescent, or incandescent lighting loads
  • NEMA 3R rated
  • Smooth, antimicrobial ABS plate
  • Mount to a standard 2 gang box
  • Complies with UL60730 (Automatic electrical controls) and CAN/CSA-E60730-1 (category CLSB/7)
  • Rated 50,000 cycles per Fed Spec

RESOURCES

Product Listing

Product Listing

Brochure

Brochure

FAQ

FAQ

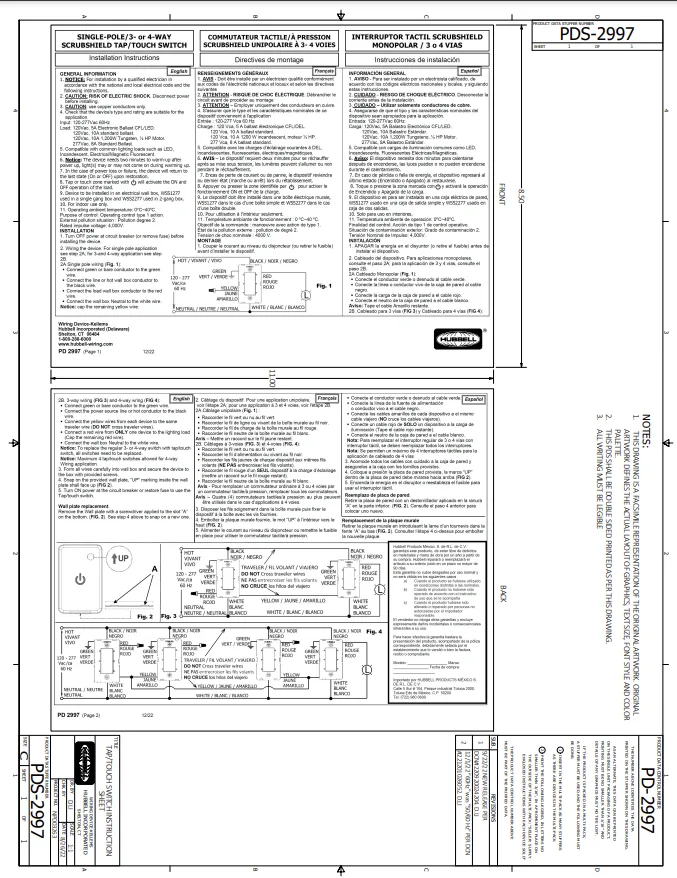

Installation Manual
