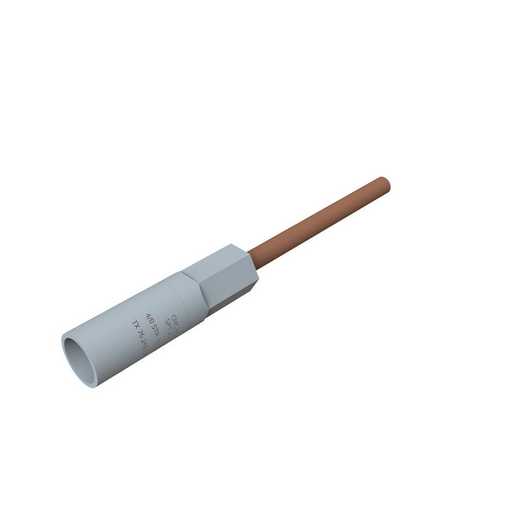

SPT4020 Overhead Shrouded Pin Term Aluminum Compression
Brand:
Connector Mfg. Co. (CMC)
Catalog ID:
SPT4020
Compression connectors, Shrouded Aluminum pin terminals
Shroud accepts insulation of conductors.;Tinned copper rod factory crimped into an aluminum compression sleeve. Cavities are pre-filled with electrical joint compound and capped.;Pin terminals are widely used in clamp-type plated bronze connectors, common to pole-type transformers, disconnect switches, cutouts and lightning arrestors, to allow aluminum conductors to be connected. The transition from copper to aluminum is made within a sealed compression joint to assure protection from bi-metallic corrosion.
- Shroud accepts insulation of conductors.
- Tinned copper rod factory crimped into an aluminum compression sleeve. Cavities are pre-filled with electrical joint compound and capped.
- Pin terminals are widely used in clamp-type plated bronze connectors, common to pole-type transformers, disconnect switches, cutouts and lightning arrestors, to allow aluminum conductors to be connected. The transition from copper to aluminum is made within a sealed compression joint to assure protection from bi-metallic corrosion.
Product details
General
Material
Aluminum
UPC
192663119110
Dimensions
Length
7 in
Length - Pin
3.72 in
Pin Size
3/8 in
Electrical Ratings
Voltage Rating
600 V
Conductor Related
Conductor - ACSR Str Size
4/0
Conductor Diameter - Maximum
0.575 in
Conductor Diameter - Minimum
0.511 in
Conductor Diameter Range
0.511 - 0.575
Conductor Range
#4/0 - 250 Str.;250 Comp.
