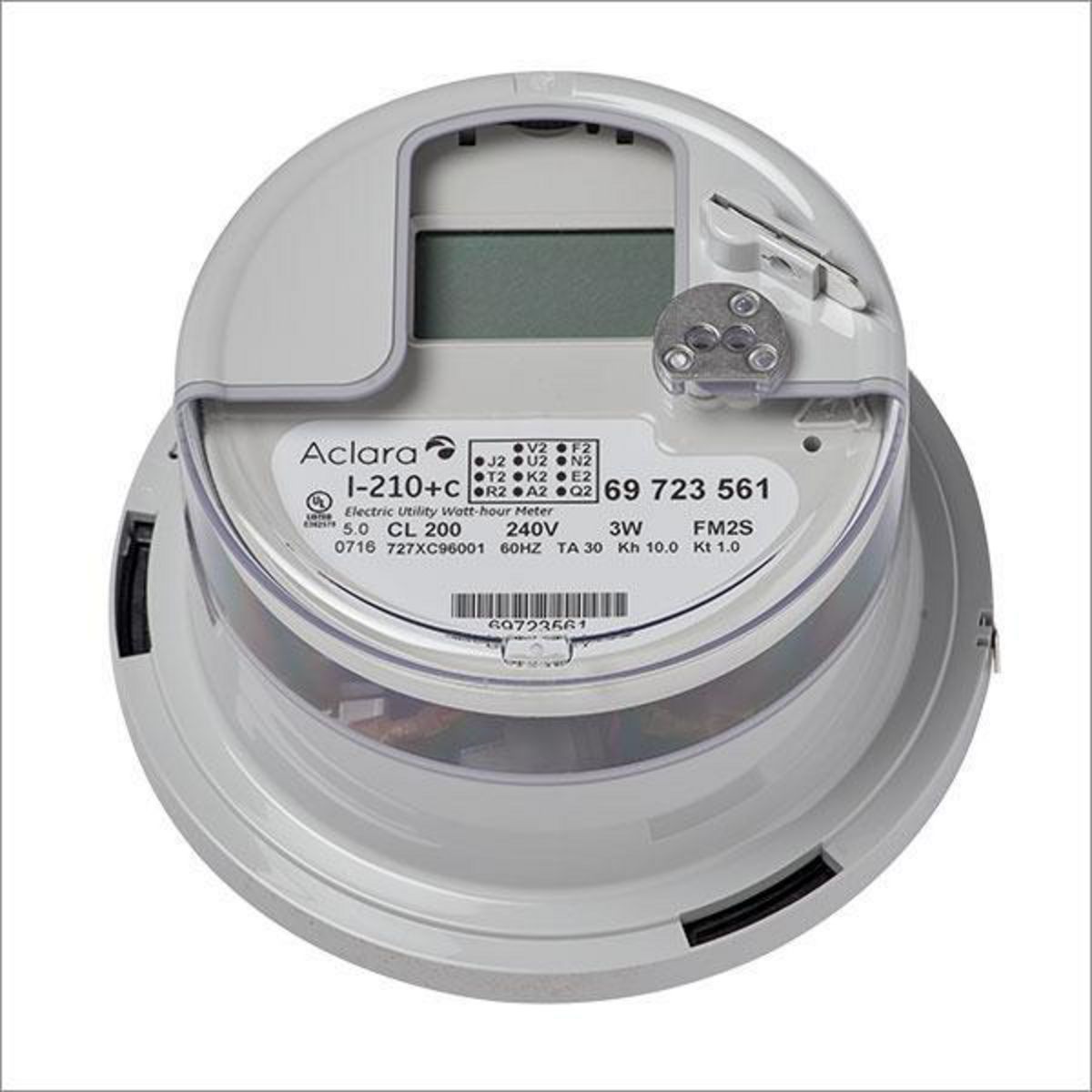

I-210+c Full-Featured Smart Grid Meter

By Aclara
By Aclara
Aclara’s I-210+c smart meter delivers industry capability for the most demanding and rigorous Smart Grid specifications. Based on years of commercial and industrial metering applications, the kV2c, I-210+c is based on advanced metrology capability and solid state metering design.
Designed for today’s dynamic rate structures, the I-210+c provides capability for demand, load profile, and TOU recording, along with a number of other power quality and demand response related functions. Configurable to support various metering quantities, this meter supports delivered (+), received (-) and net metering for distributed generation.
Advanced Functionality
With the addition of the fully rated 200 amp service switch, the meter is capable of pre-payment metering without the costs associated with card readers or other legacy pre-payment technologies. Load limiting and emergency conservation modes are added features when this meter is working in conjunction with a demand response program. The meter has the capacity for to be remotely configured, and is firmware upgradeable.
Communications
Designed to specifically for Smart Grid communications systems, the I-210+c has the same electrical and mechanical interface as Aclara’s I-210+ platform, making communications interchangeable and interoperable between these two residential metering platforms.
AMR/AMI Plug and Play Communications
Multiple communication options on the I-210+c allows greater communications options, including RF mesh, PLC, 3G/4G point-to-point communication technologies.
  • Customize advanced metering options through soft switches
  • AMR/AMI Plug-n-Play designed to accommodate:
  • Radio Frequency Mesh (RF Mesh)
  • Radio Frequency Point-to-Multipoint
  • Cellular communications
  • Ethernet
  • Advanced functionality such as time-of-use, insensitive demand, load profile recording, event logging, voltage sag/swell recording
  • Typical accuracy: within +/- 0.2 percent
  • Service Switch to improve operational efficiency and address issues such as:
  • Demand side management
  • Remote prepayment systems
  • Controlled outage restoration
  • Low starting watts; capture energy consumption at levels typically not registered by electromechanical meters
  • Low burden, which minimizes utility system losses
  • Patented tamper algorithm to detect tamper-by-meter Inversion
  • Meets or exceeds ANSI compliance C12.1, C12.10, C12.20, C37.90.1

Product Details

General

Application Residential

Certifications and Compliance

Industry Standard(s) ANSI
