CGB Cable Gland Series

Experience the next level of reliability and versatility

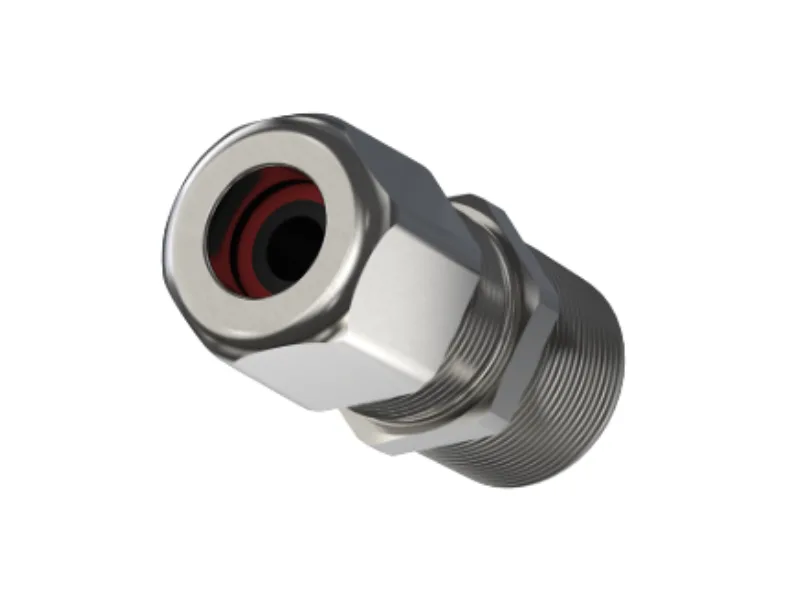

Introducing the innovative CGB Cable Gland Series from Killark, engineered with a robust design that ensures superior pull-out resistance. This unique series features on-site removable grommets, allowing for unparalleled flexibility and adaptability in handling a wide range of cable diameters.

What makes it stand out

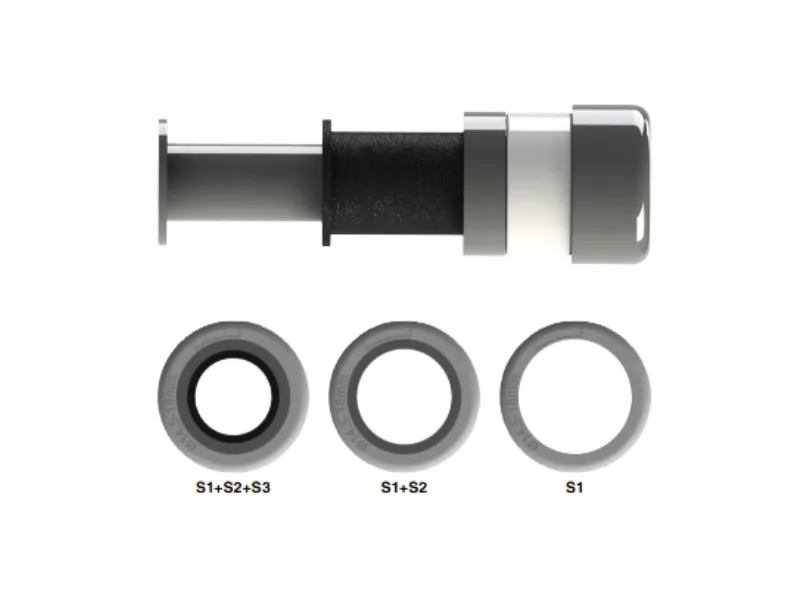

The key advantage of the CGB Cable Gland includes its versatile "top hat" style grommets, which can be conveniently removed onsite. This feature allows it to accommodate a wide variety of cable diameters and variances, making it suitable for a broader range of unarmoured cables in both hazardous and industrial environments.

Features & Highlights

Robust

Robust

The solid construction allows for superior pull-out resistance, enhancing durability and reliability in demanding applications.

Versatile

Versatile

The removable grommet accommodates a wider range of cable diameters, simplifying installations and reducing the need for multiple sizes.

Compact

Compact

The streamlined product design significantly reduces inventory footprint, allowing for more efficient use of storage space.

Applications & Solutions

The robust design ensures an even dispersion of the grommet when compressed around the cable, achieving ingress protection ratings of Type 4X and IP66. This innovative feature makes it perfectly suited for use in harsh, hazardous, or industrial environments.

HUBS-CA - Chemical Plants - Application Card

Chemical Plants

HUBS-CA - Ethanol Plants - Application Card

Ethanol Plants

HUBS-CA - Mining - Application Card

Mining

HUBS-CA - Oil & Gas Refineries - Application Card

Oil & Gas Refineries

HUBS-CA - Waste Water Management - Application Card

Waste Water Management

Technical Specifications

Area Classification

Suitable for use in Class 1 Div. 2 locations when installed in accordance with NEC 501.10b

Materials

Killark's Latest Innovation in Cable Installation Tools

The primary benefits of the CGB Cable Gland are the multiple "top hat" style grommets that can easily be removed onsite to service various cable diameters and variances allowing for a broader range of unarmoured cables for the hazardous and industrial markets. Its robust design allows for an even dispersion of the grommet when compressed around the cable for ingress protection ratings Type 4X and IP66. These innovative product features make it ideal for any harsh and hazardous or industrial applications. Our CGB Cable Gland is the safest specified choice for cable management. Ready to start your project?


GET A QUOTE TODAY

SPECIAL FEATURES

Revolutionary Design

  • Unique design allows for "on-site" removable grommets
  • Covers a larger range of cable diameters with less stocking SKUs
  • Ideal for over and undersized cables
  • Reduced stocking profile
  • Robust design allows for superior strain relief and pull out resistance

Specifications

Area Classification:
Suitable for use in Class 1 Div. 2 locations when installed in accordance with NEC 501.10b

Material:
Aluminum, 316 Stainless Steel, Nickel Plated Brass, Steel

Applications:
Ethanol Plants, Chemical Facilities, Waste Water Facilities, Oil and Gas Refineries, Mining


Less Stocking SKUs

The CGB removable seals offer a broader range of cable ODs to cover multiple cable sizes and variances. This allows for less stocking SKUs on any jobsite!
