4-11/16" Square Box Pre-Fab Assemblies

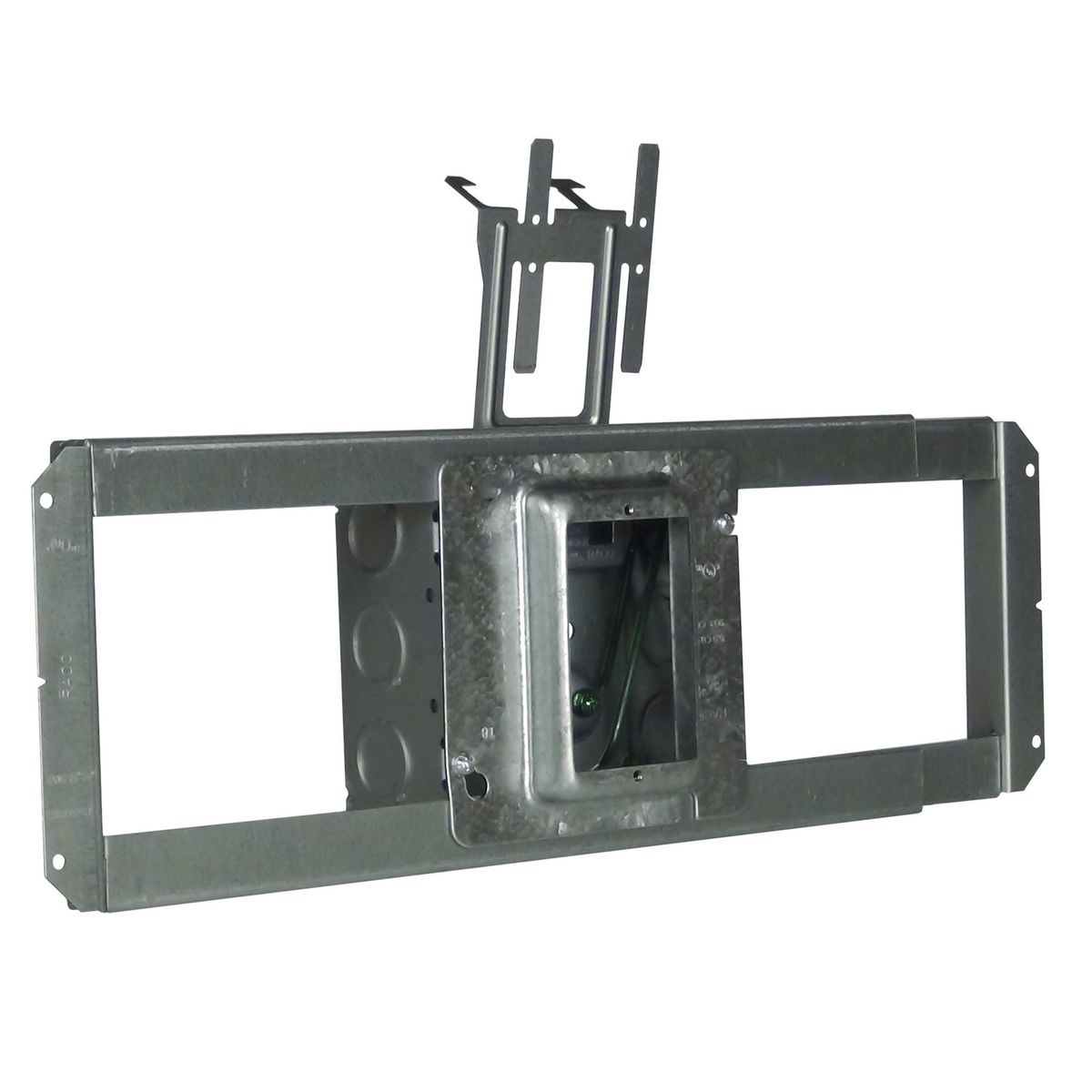

STAB-iT® Pre-Fab Assembly, 9020R model + 252SCM model + 838 model / 1G - Mud Ring, Raised 3/4" / 16" Studs
- Ready to install, no preparation required
- For use on wood or metal studs
- Designed and assembled in USA
General
Application
- Save labor costs on any job with RACO Pre-Fab assemblies. All components come pre-assembled, ready to install right out of the box. Electrical boxes, mounting brackets, cable management and mud rings. Ensure quality while reducing material and labor costs. Even reduce jobsite packaging waste.
- These Assemblies feature 4-11/16" boxes with integrated STAB-iT® II connectors for advanced fast, secure installation of MC cables. Contractor-proven to install MC in just 1/3 the time! These boxes also include built-in cable management clip and 8" solid #12 pigtail. Models with a second box for power and data applications include a standard 4-11/16" box with additional knockouts.
Cable Clamps
1
Catalog Number
AW2.1.16
Drawn or Welded
Welded
Material
Steel
Number of Gang(s)
1-Gang
UPC
050169993293
Wiring System
Flex
Dimensions
Cubic Capacity
42
Raised Ground
Yes
Raised Height
0.75 in
Certifications And Compliance
Certified Listed
UL Listed
Configuration
Number of Gang(s)
1-Gang
Logistics
Carton Quantity
6
Pallet Quantity
180
