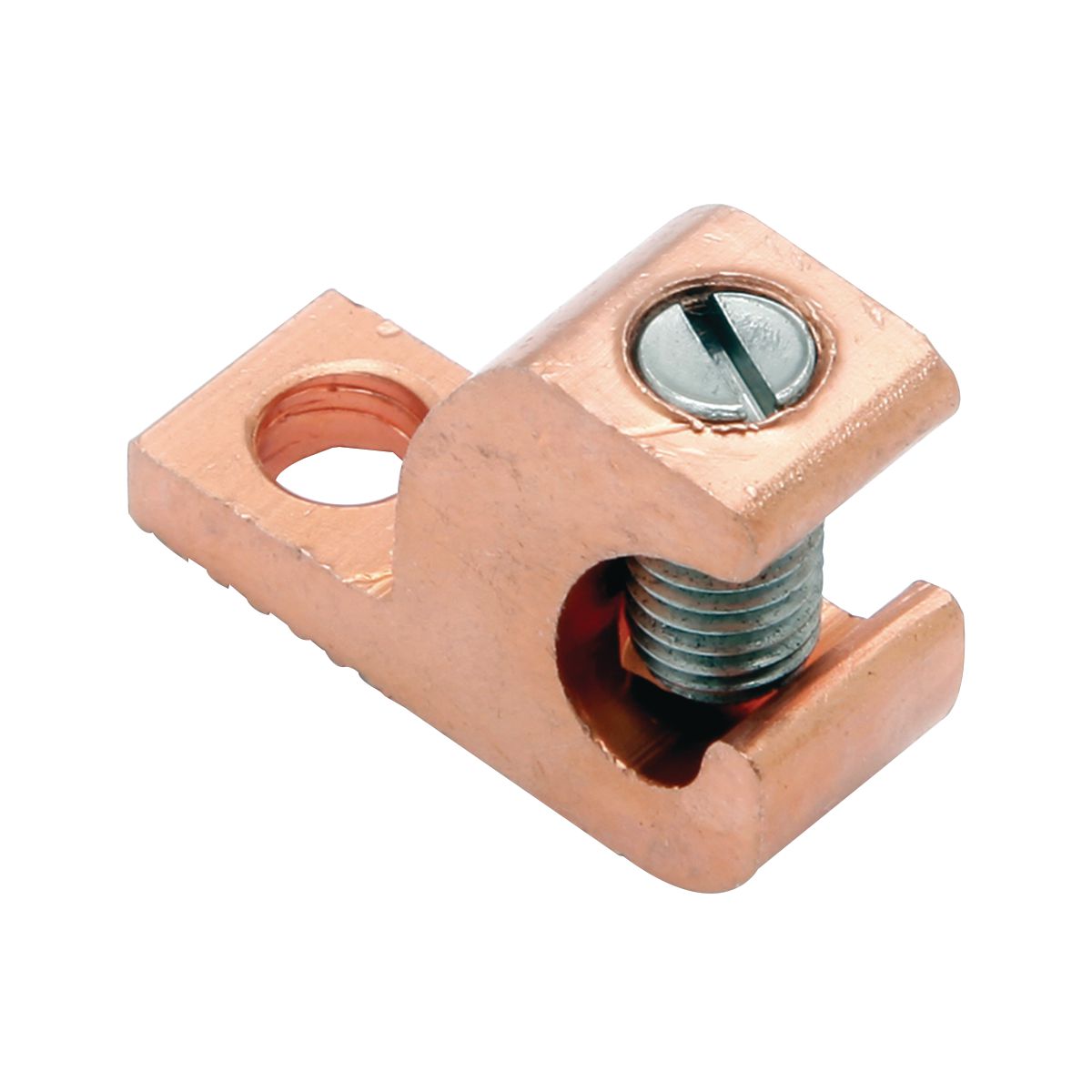

CL501, Copper Lay-in Lug

By Burndy

Catalog ID: CL501

By Burndy
Catalog ID:  CL501
Prop 65 Notice
Copper Lay-in Lug, 14-4 AWG, #10 Stud.

Features: The Lay-In QIKLUG Is Manufactured From High Strength Pure Electrolytic Copper To Ensure Maximum Strength And Conductivity, UL467 Listed For Direct Burial In Earth Or Concrete, The Open-Faced Design Allows For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, Stud/bolt Size: #10, Stud/bolt Hole Size: 0.22 IN, Installation Torque: Yes, Set Screw Type: Slot, Length: 1.13 IN, Height: 0.85 IN, Tongue Width : 0.38 IN

Contact Us
Add to List

More Options

Where to Buy
Get a Quote

Product Details

General

Application For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking
EU RoHS Indicator Yes
Material Copper
Material - Hardware Stainless Steel
Plated N
Plating Type Unplated
Sub Brand QIKLUG
Trade Name QIKLUG™
Type Open-Faced
UPC 781810276150
UPC 12 Digit 7818102761500

Dimensions

Dimension - D inch 0.47 in
Dimension - Height inch 0.85 in
Dimension - Hole Size inch 0.22 in
Dimension - Hole Size mm 6 mm
Dimension - L Length Overall mm 29 mm
Dimension - Length Overall inch 1.13 in
Dimension - N inch 0.19 in
Dimension - Stud Size inch 17/64
Dimension - Width inch 0.38 in
Dimension - Width mm 10 mm

Conductor Related

Conductor - Copper Solid Size 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Conductor - Copper Solid Size Range 14 AWG-4 AWG
Conductor - Copper Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Conductor - Copper Str Size Range 14 AWG - 4 AWG
Conductor Type CU C Str-Size

Certifications and Compliance

Certification - CSA Approved No
Certification - UL Listed Direct Burial Yes
Certification - cULus Yes
Industry Standard(s) UL467
Standards - Industry Standards Met UL467
Standards - RoHS Compliance Status CM
UL Listed Yes

Logistics

Carton Quantity 500
Minimum Pack Quantity 1
