00:13Today, we'll be using A Y GB on a four rock conductor to 1/4 inch bus bar.

00:19First measure the conductor.

00:27Next select a Y GB bus bar connector based upon the size of the conductor and the thickness of

00:34the bus bar you were working with.

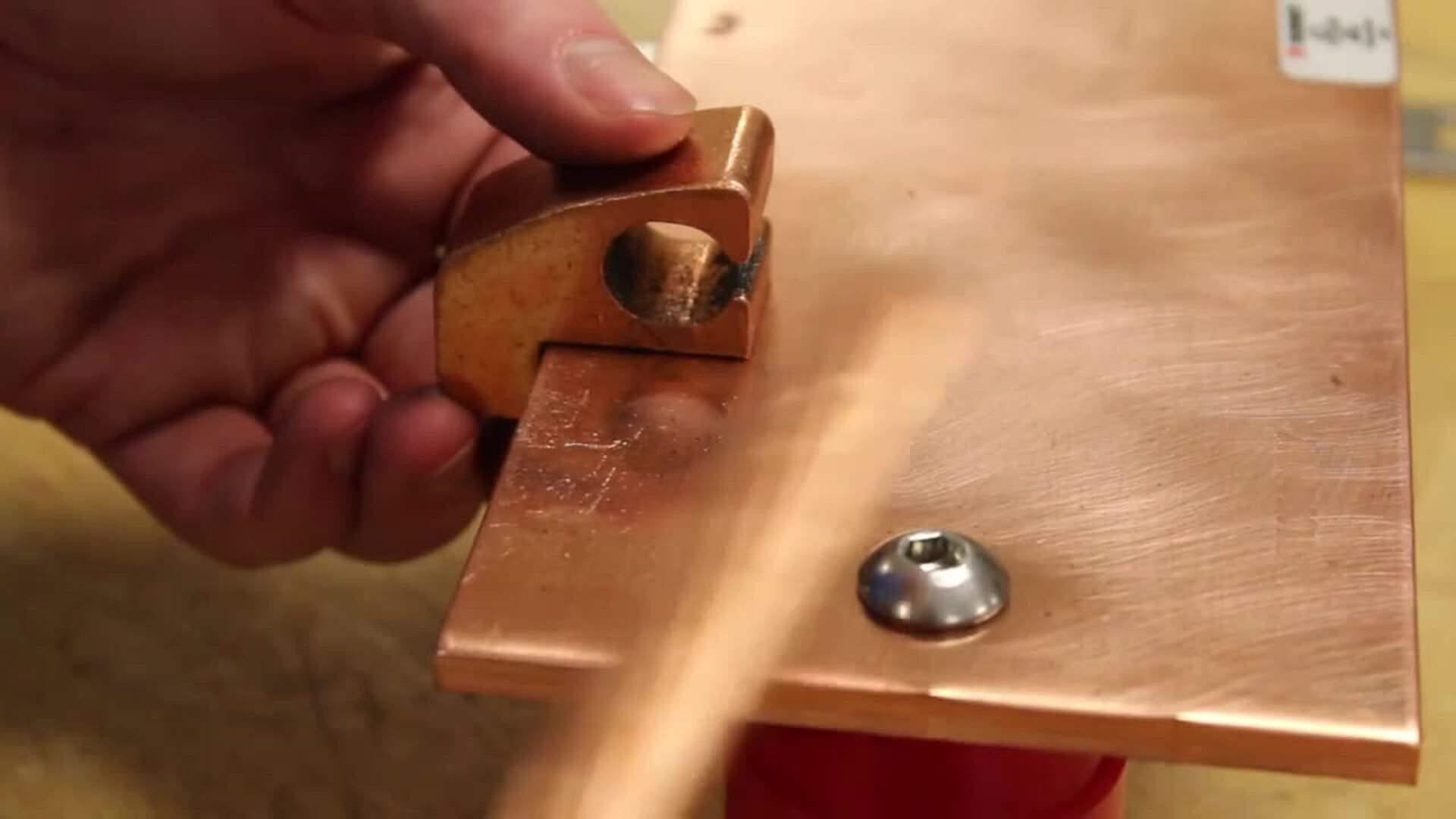

00:35Today, we'll be using a YG 14 BT C 28 position the connector onto the bus bar,

00:43insert the conductor into the connector

00:55place the connector into the center of crimping dyes that are placed in the tool head,

01:00crimp the connection until you hear an audible click from the pat 750 indicating the tool has

01:06gone full cycle and the crimp is complete,

01:13visually inspect the emboss against the connector markings to validate a proper

01:18connection has been made. Your Y GB connector is installed for more

01:23information. Visit burnie.com.

01:26Thank you.
