00:15The YGHC family of connectors are irreversible ground tap figure six connectors.

00:22They accommodate all cable combinations from number six solid through 500 KC mill.

00:28The C shaped opening permits placing two run and tap cables into conductor groove.

00:33Today we'll be using the YGHC 29 C 29 A U 997 dye

00:40and the PAT 750 L I note these connectors can be installed using the PAT 750

00:47Y 750 Y 35 Y 39 Y 45 or Y

00:5446 and PAT 46 with recommended dyes.

00:58Other burnie tooling options may be available contact burnie for more information.

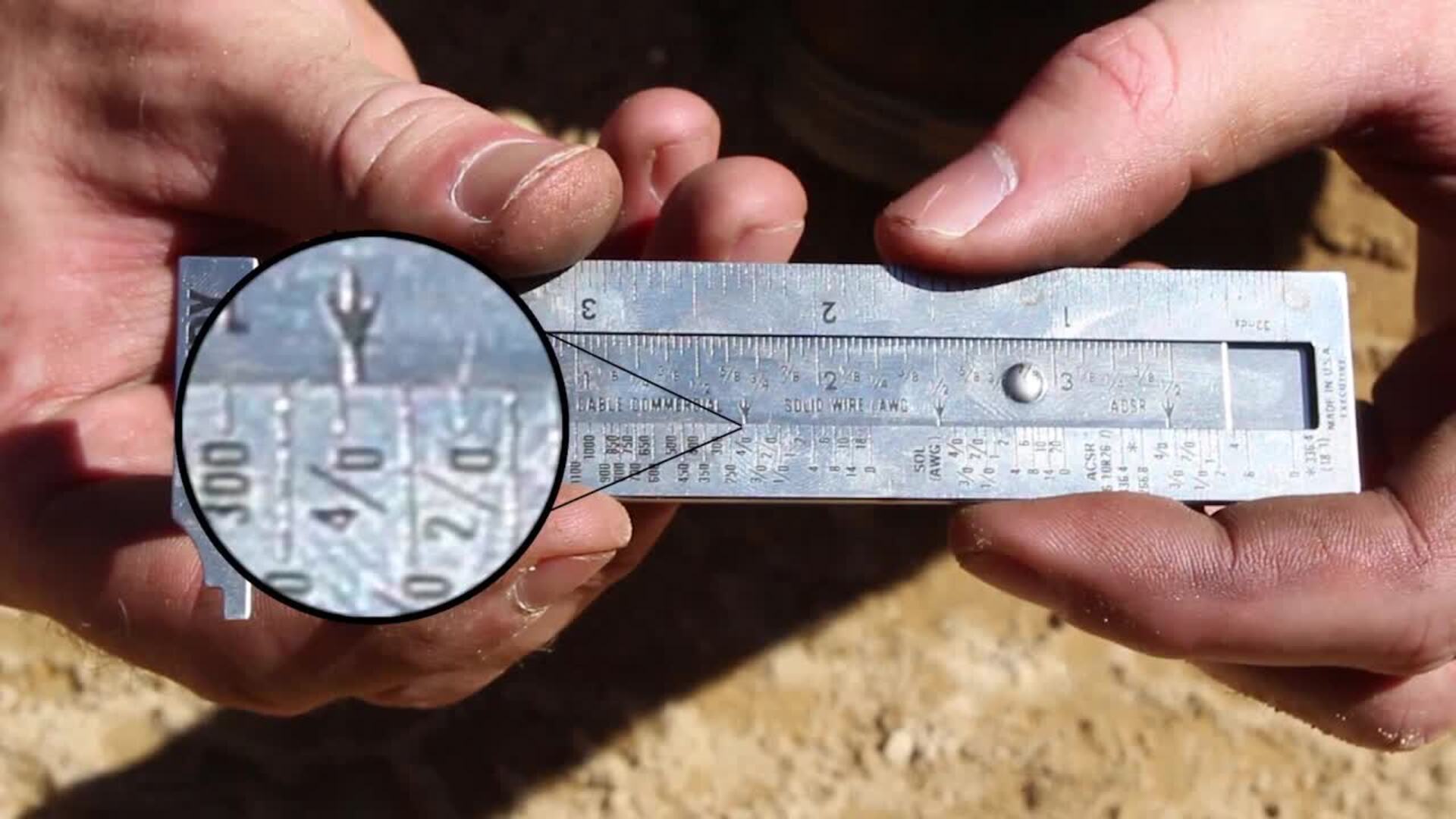

01:04First determine the conductor size measure with the burnie wire mic if needed.

01:13Choose appropriate connector of required size based on conductor size or rod size or both

01:19select and install the U 997 into the pat 750 L I.

01:25The dy set information is stamped on the connector center,

01:30the connector in the dye and insert cables into the connector as shown

01:52cycle crimping tool until an audible pressure release is heard

02:07release tool.

02:10After crimping notice the dye index number embossed on the inspect connection your

02:15installation of the YGHC connector is complete for more information on the YGHC

02:2229 C 29 and other Bernie products visit bernie.com.
