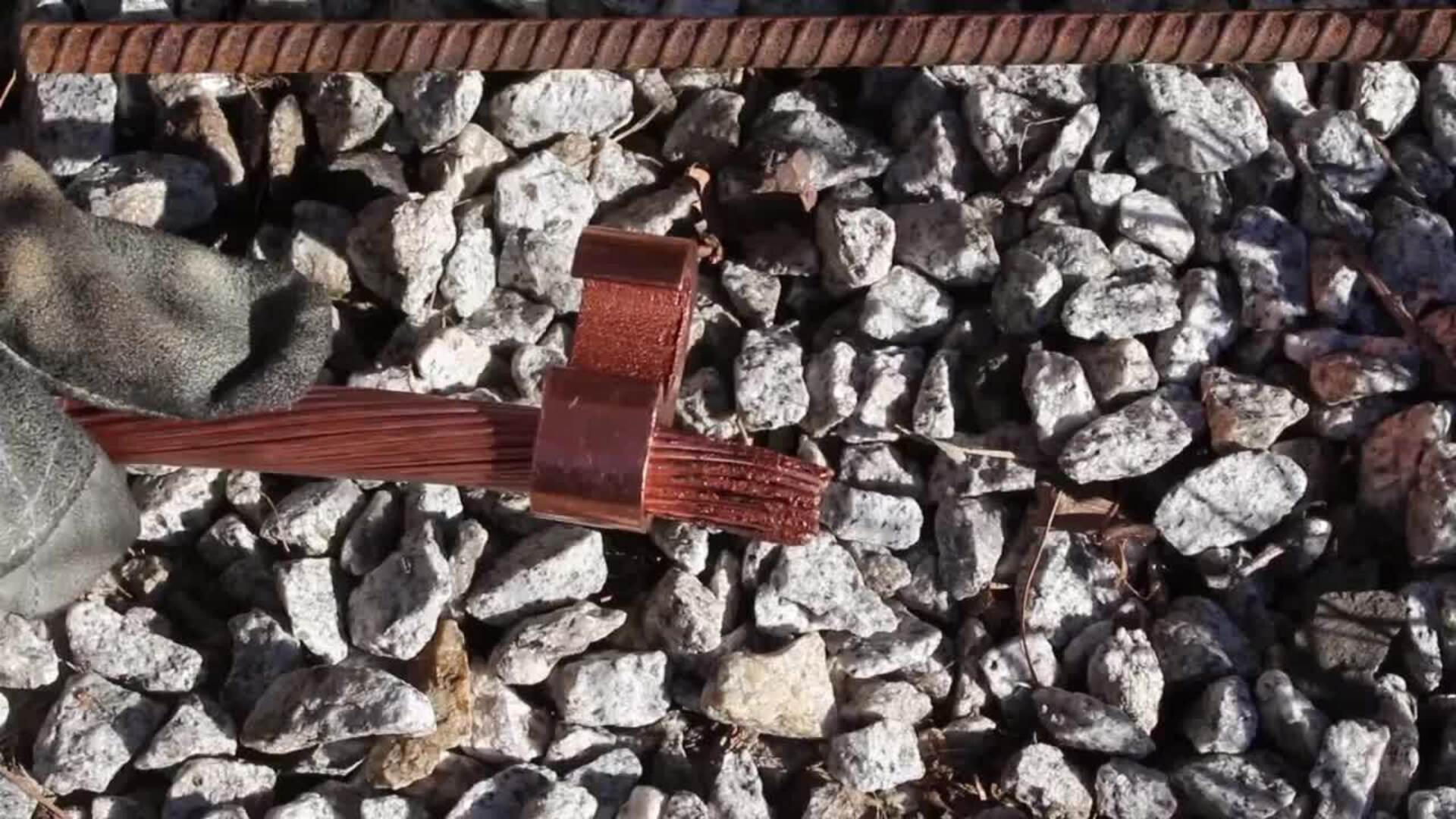

00:13Today, we'll be installing a YGHP on a 40 conductor to number three rebar,

00:20first measure the conductor.

00:23Next measure the rebar and determine the appropriate connector based on the conductor

00:29and rebar size you are working with. In this example,

00:32we are using a YGHP 29 C 29 insert the

00:39conductor into the tap side of the connector,

00:50then place the rebar into the run side of the connector,

00:56align the connector into the center of the crumping dyes that are placed in the pat 750

01:01tool head crimp the connection until you hear an audible click from the pat 750

01:08indicating the tool has gone full cycle. And the crimp is complete,

01:24visually inspect the dye emboss on the connector to validate a proper connection has

01:28been made. Your YGHP connector is installed for more

01:33information. Visit burnie.com.

01:36Thank you.
